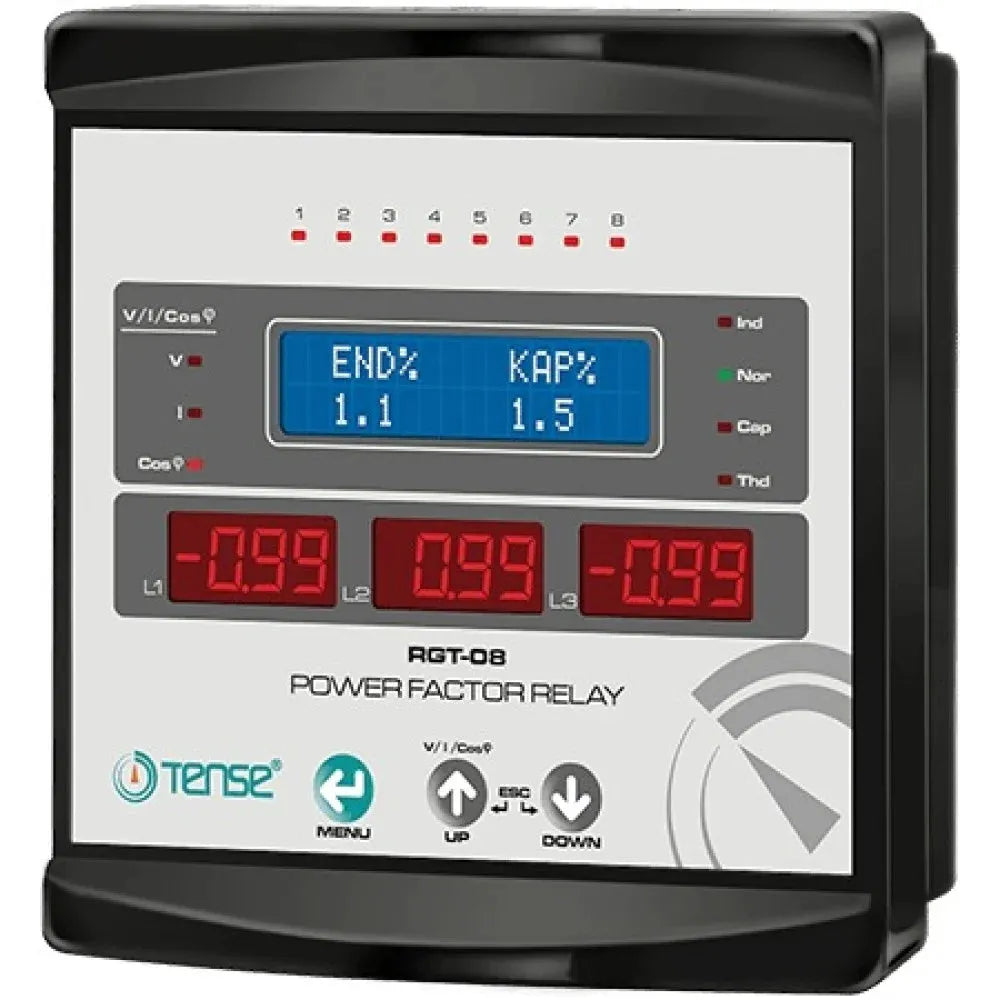

The Tense RGT-08 is a high-performance three-phase reactive power control relay engineered to improve power factor by automatically managing capacitor banks in industrial and commercial electrical systems. With 8-step control capability, this relay ensures efficient reactive power compensation, minimizes energy losses, and helps avoid penalties from utility providers. Featuring a clear LED display, intuitive interface, and advanced protection functions, the RGT-08 is ideal for panel builders, electrical contractors, and energy management professionals.
Easy Installation and Operation with 2×16 LCD Display
3×4 Digit Led Display, Information and Warning LED Display
Intervention, Discharge, and Settling Times can be Adjustable
Manual Step Value Enterable
Single, Two, and Three Phase Capacitor and Shunt Reactor can be Connected
Cosine Values of Each Phase can be Observed
Capacitive/Active and Inductive/Active Ratios can be Observed
Total Energies (Import/Export) can be Observed.
THD-I value can be Observed
Creating Power Analysis (20 samples 9999 min.)
Current and Voltage Values of Each Phase can be Observed.
Password Protected Menu
Same Aging in Steps
Product Specifications
Type
power control relay
model
rgt-08
control output type
relay outputs (no contacts)
ct input
5a (external current transformer required)
display type
led (3-digit)
enclosure protection
ip20
frequency
50/60 hz
housing material
flame-retardant thermoplastic
mounting type
panel or din rail mount
number of control steps
8 steps
operating temperature
-10°c to +50°c
power factor adjustment range
0.85 inductive to 0.95 capacitive
programming
manual or automatic
system type
three-phase
voltage range
3×400v ac ±10%
Product Details
The Tense RGT-08 is a high-performance three-phase reactive power control relay engineered to improve power factor by automatically managing capacitor banks in industrial and commercial electrical systems. With 8-step control capability, this relay ensures efficient reactive power compensation, minimizes energy losses, and helps avoid penalties from utility providers. Featuring a clear LED display, intuitive interface, and advanced protection functions, the RGT-08 is ideal for panel builders, electrical contractors, and energy management professionals.
