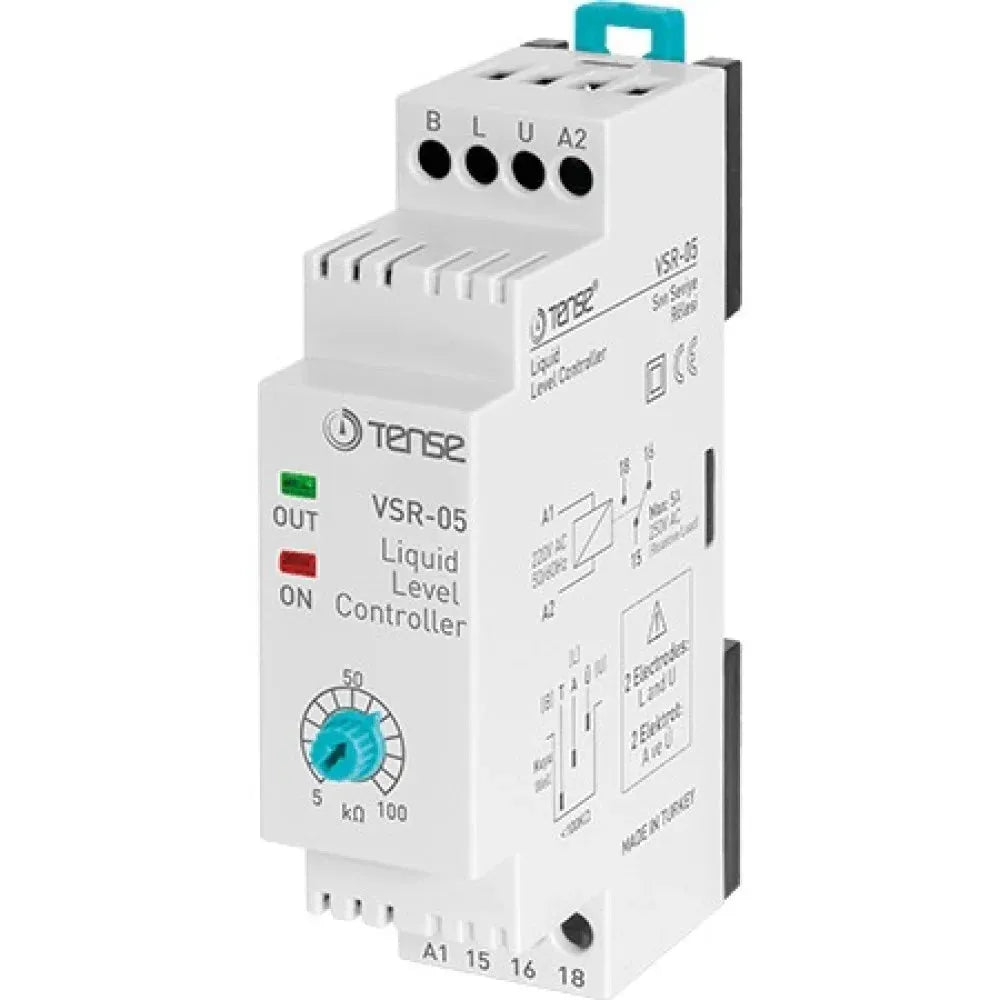

Tense Liquid Level Control Relay Price in Pakistan Rs 7,650/-. The Tense VSR-05 is a reliable liquid level control relay designed to monitor and manage fluid levels in tanks, wells, and reservoirs. Suitable for use with conductive liquids like water, it automates pump operations to prevent overflow or dry-run conditions. With its DIN rail mounting, adjustable sensitivity, and LED status indicators, the VSR-05 is ideal for residential, commercial, and industrial liquid control applications.
Automatically controls pump operation based on water levels
Adjustable sensitivity for various applications
CE certified and compliant with safety standards
Compact and durable design for long-term use
DIN rail mount for quick and secure panel installation
Easy to wire and configure for automation setups
Ideal for tanks, wells, reservoirs, and liquid management systems
LED indicators for power and output relay status
Protects pumps from dry-run and tanks from overflow
Works with conductive liquids such as water
Product Specifications
Type
liquid level control relay
model
vsr-05
contact capacity
5a / 250v ac
control type
conductive level detection
electrode inputs
3 (high, low, common)
function
liquid level monitoring and control
housing material
flame-retardant plastic
led indicators
power and relay output status
mounting type
din rail
operating temperature
-10°c to +50°c
output contact
1 c/o (changeover relay)
protection class
ip20
response time
<200 ms
sensitivity adjustment
up to 100 ko
supply voltage
230v ac / 50-60 hz
Product Details
Tense Liquid Level Control Relay Price in Pakistan Rs 7,650/-. The Tense VSR-05 is a reliable liquid level control relay designed to monitor and manage fluid levels in tanks, wells, and reservoirs. Suitable for use with conductive liquids like water, it automates pump operations to prevent overflow or dry-run conditions. With its DIN rail mounting, adjustable sensitivity, and LED status indicators, the VSR-05 is ideal for residential, commercial, and industrial liquid control applications.
