Type
|
miniature circuit breaker
|
|
breaking capacity
|
ics=icn
|
|
rated voltage
|
230v / 400v
|
|
ampere
|
6, 10, 16, 20, 32, 40, 50 & 63.
|

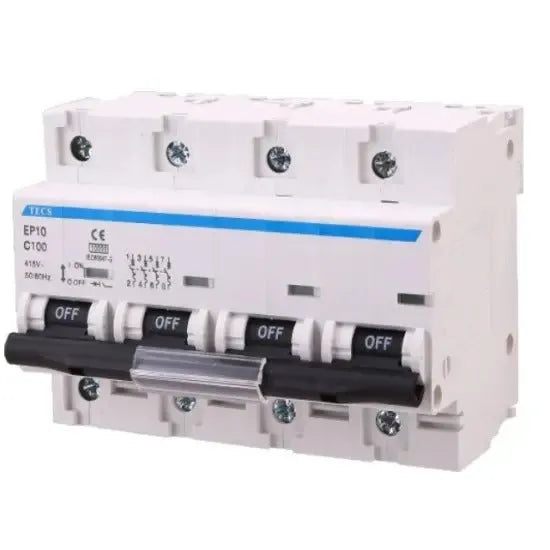

Terasaki EPC 4 Pole MCB Breaker Price in Pakistan is RS. 19,500
The Terasaki EPC 4 Pole 6KA 10KA Miniature Circuit Breaker is a reliable and versatile solution for electrical protection. With a breaking capacity of 6000A AC and DC, it ensures efficient interruption of electrical currents. Available in various ampere ratings ranging from 6 to 63, and with characteristics B, C, and D, it accommodates different electrical requirements. Its compact design with a device height of 76mm and frame size of 81mm makes it suitable for space-constrained installations. Featuring a four-pole configuration, it offers enhanced protection and versatility. The terminal protection ensures safety against finger and hand touch, while the open-mouthed/lift terminals facilitate easy wiring. With a mounting option of DIN rail mount, installation is convenient and secure. Designed according to IEC standards 60898-1 and 60947-2, it guarantees compliance w...
