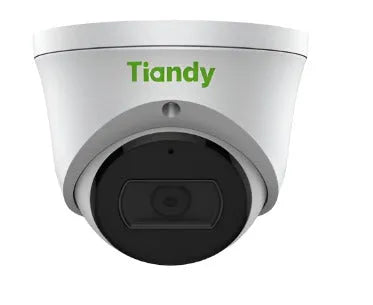

The Tiandy TC-C34XS Lite Series IPC 4MP IR Turret Camera is a high-performance surveillance solution designed to meet the demands of modern security applications. Equipped with a 1/2.8" CMOS image sensor, it delivers exceptional image quality with enhanced clarity and detail. Its advanced infrared (IR) capabilities ensure reliable day and night monitoring, with a minimum illumination of 0.002Lux in color and 0Lux in black and white with IR illumination. The camera features an IR-cut filter with auto switch (ICR) for seamless transition between day and night modes. With a wide dynamic range (WDR) of 120dB and a high signal-to-noise ratio (S/N) exceeding 42dB, it provides clear and balanced images even in challenging lighting conditions. The fixed focal lens with a focal length of 2.8mm offers a wide field of view, covering 94.7å¡ horizontally, 52.5å¡ vertically, and 118.5å¡ diagonally. Additionally, it is equipped with two IR LEDs for night vision up to 30 meters and two white LEDs w...
Support microSD/microSDHC/microSDXC card, up to 512 GB
Support Smart surveillance
Operating Conditions -40䋀~65䋀(No turning on the light), Humidity 95% or less (no condensation)
DC12Vå±25%,MAX 6W, POE 802.3af,MAX 7W
IP66
Product Specifications
Type
tiandy camera
image sensor
1/2.8"cmos
min. illumination color
0.002lux@(f1.6,agc on),b/w;0lux with ir
shutter time
1s~1/100000s
day&night
ir-cut filter with auto switch (icr)
wdr
120db
s/n
>42db
angle adjustment
0~340å¡(p); 0~75å¡(t); 0~360å¡(r)
lens typ
fixed focal lens
focal length
2.8mm
lens mount
m12
aperture range
f1.6
field of view
94.7å¡(h); 52.5å¡(v); 118.5å¡(d)
detect
56.0m
observe
22.2m
recognize
11.2m
identify
5.6m
ir leds
2
ir distance
30m
wavelength
850nm
white leds
2
whitelight distance
15m
video compression
s+265/h.265/h.264b/h.264m/h.264h
video bit rate
32k~6mbps
audio compression
g.711a/g.711u/adpcm_d
audio sampling rate
8khz/32khz/48khz
Product Details
The Tiandy TC-C34XS Lite Series IPC 4MP IR Turret Camera is a high-performance surveillance solution designed to meet the demands of modern security applications. Equipped with a 1/2.8" CMOS image sensor, it delivers exceptional image quality with enhanced clarity and detail. Its advanced infrared (IR) capabilities ensure reliable day and night monitoring, with a minimum illumination of 0.002Lux in color and 0Lux in black and white with IR illumination. The camera features an IR-cut filter with auto switch (ICR) for seamless transition between day and night modes. With a wide dynamic range (WDR) of 120dB and a high signal-to-noise ratio (S/N) exceeding 42dB, it provides clear and balanced images even in challenging lighting conditions. The fixed focal lens with a focal length of 2.8mm offers a wide field of view, covering 94.7å¡ horizontally, 52.5å¡ vertically, and 118.5å¡ diagonally. Additionally, it is equipped with two IR LEDs for night vision up to 30 meters and two white LEDs with a whitelight distance of 15 meters. Supporting multiple video compression formats and audio compression options, this turret camera ensures efficient data storage and transmission. With its durable construction and versatile angle adjustment capabilities (pan: 0340å¡, tilt: 075å¡, rotate: 0~360å¡), the Tiandy TC-C34XS is suitable for various indoor and outdoor surveillance applications.
