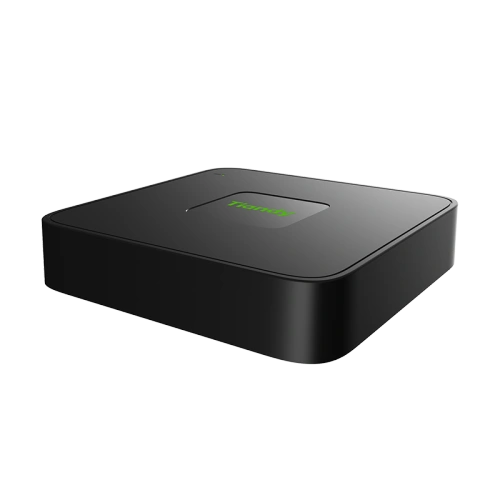

The TC-R3105 Tiandy Spark PSE NVR is a compact 5-channel network video recorder designed with built-in 4-port PoE support, making it an ideal all-in-one solution for small surveillance systems. It supports up to 5MP recording resolution and efficient S+265/H.265 compression for optimized storage and bandwidth usage.
With integrated PoE ports, the device allows direct camera connection without an external switch, simplifying installation and reducing deployment cost. It supports advanced video decoding, multi-channel playback, and smart alarm integration through connected IP cameras.
Perfect for homes, offices, retail shops, and small businesses, this NVR delivers reliable performance, easy setup, and smooth remote access through mobile and web platforms.
Built-in 4-port PoE switch (Plug & Play camera connection)
Up to 5MP recording resolution support
S+265 / H.265 / H.264 video compression
Incoming bandwidth: 60Mbps, outgoing: 40Mbps
HDMI output up to 1080P
Supports ONVIF & RTSP third-party cameras
4-channel synchronous playback
Smart video decoding for multiple resolutions
Mobile remote access via EasyLive Plus
Web access via major browsers
Supports 1 SATA HDD (up to 6TB)
Compact cube design with low power consumption
PoE power budget: 45W total
Product Specifications
Type
nvr
power supply
dc 48v 1.35a
power consumption
<10w (without hdd & poe load)
net weight
0.4 kg
gross weight
0.85 kg
dimensions
200 × 200 × 43 mm
package size
315 × 70 × 235 mm
operating temperature
-10℃ ~ +55℃
operating humidity
10% ~ 90% rh
storage temperature
-10℃ ~ +55℃
storage humidity
10% ~ 90% rh
Product Details
The TC-R3105 Tiandy Spark PSE NVR is a compact 5-channel network video recorder designed with built-in 4-port PoE support, making it an ideal all-in-one solution for small surveillance systems. It supports up to 5MP recording resolution and efficient S+265/H.265 compression for optimized storage and bandwidth usage.
With integrated PoE ports, the device allows direct camera connection without an external switch, simplifying installation and reducing deployment cost. It supports advanced video decoding, multi-channel playback, and smart alarm integration through connected IP cameras.
Perfect for homes, offices, retail shops, and small businesses, this NVR delivers reliable performance, easy setup, and smooth remote access through mobile and web platforms.
