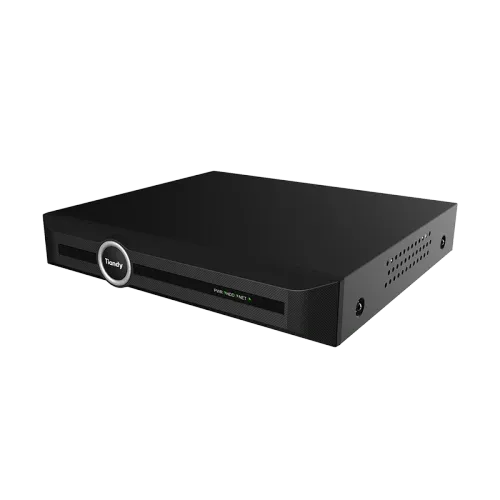

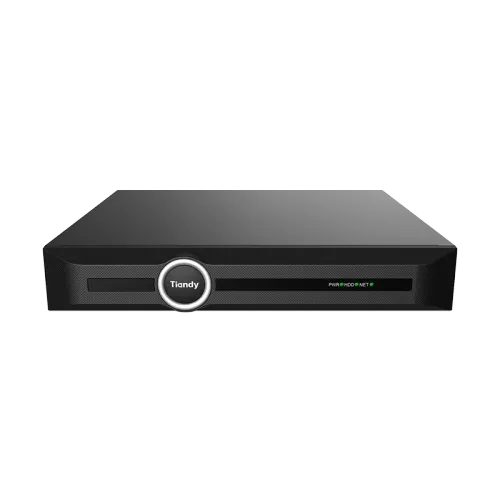

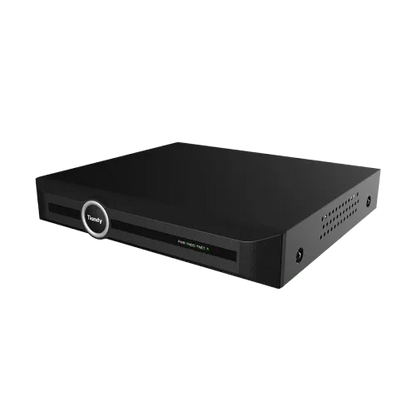

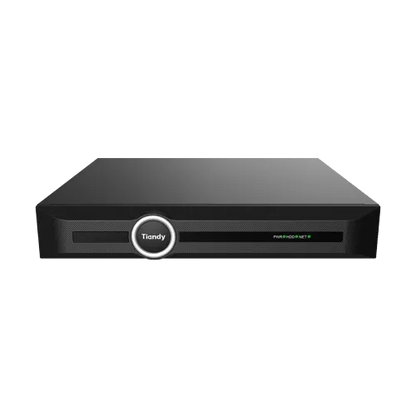

The TC-R3120 Tiandy Lite-K 20CH NVR is a high-performance surveillance recorder designed for medium to large-scale security systems. Supporting up to 20 IP camera channels and recording up to 8MP ultra-HD resolution, it delivers powerful monitoring, storage, and playback capabilities for professional security applications.
With advanced S+265/H.265 compression, this NVR significantly reduces storage usage while maintaining crystal-clear video quality. It supports HDMI 4K output, AI-powered video analytics, multi-channel playback, and ONVIF compatibility, making it suitable for commercial buildings, offices, warehouses, and large residential setups.
tripwire, perimeter, face detection, people counting, loitering, vehicle/human classification, object detection
operating temperature
-10°c ~ +55°c
storage temperature
-20°c ~ +60°c
humidity
10% ~ 90% rh (non-condensing)
power supply
dc 12v / 3.33a
power consumption
<10w (without hdd, idle)
dimensions
255 × 231 × 45 mm
weight
net 0.9 kg / gross 1.6 kg
Product Details
The TC-R3120 Tiandy Lite-K 20CH NVR is a high-performance surveillance recorder designed for medium to large-scale security systems. Supporting up to 20 IP camera channels and recording up to 8MP ultra-HD resolution, it delivers powerful monitoring, storage, and playback capabilities for professional security applications.
With advanced S+265/H.265 compression, this NVR significantly reduces storage usage while maintaining crystal-clear video quality. It supports HDMI 4K output, AI-powered video analytics, multi-channel playback, and ONVIF compatibility, making it suitable for commercial buildings, offices, warehouses, and large residential setups.
