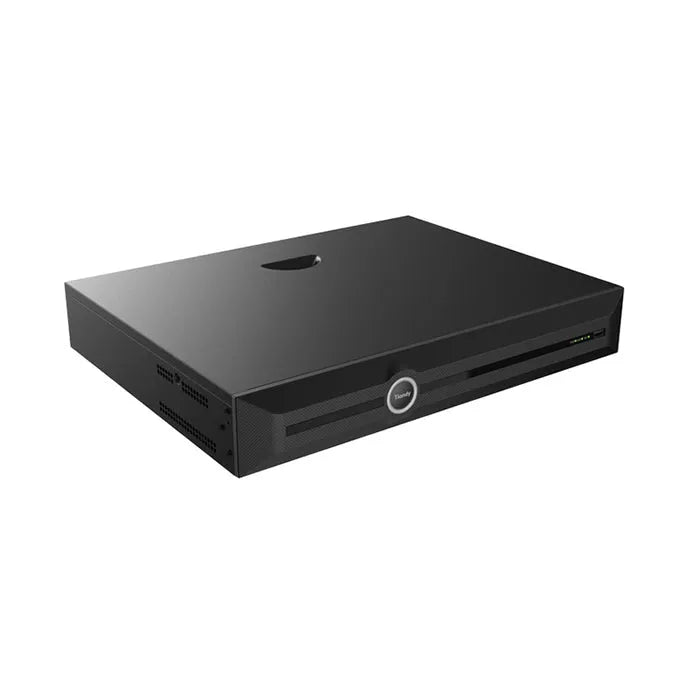

The Tiandy TC-R3440 Pro Series 40 Channel NVR is a reliable and high-performance network video recorder designed for advanced surveillance applications. Supporting up to 40 IP cameras with up to 16MP decoding and 12MP recording, this NVR ensures ultra-clear video monitoring for commercial, industrial, and large-scale security systems.
With advanced S+265 / H.265 compression technology, the system significantly reduces bandwidth and storage requirements—saving up to 75% storage space while maintaining superior image quality. The 4 SATA HDD slots (up to 10TB each) provide flexible and scalable storage for long-term recording.
Equipped with dual Gigabit LAN ports, independent HDMI & VGA outputs (up to 4K), and support for third-party cameras via ONVIF & RTSP, this NVR delivers seamless integration and efficient system management. Additional smart features like VCA alarms, centralized camera control, and cloud upgrade support make it an ideal solution for modern...
http, https, tcp/ip, rtsp, rtp, dhcp, dns, ntp, smtp, etc.
compatibility
onvif (profile s/t/g), rtsp
mobile access
android / ios (p2p supported)
power supply
power consumption
≤15w (without hdd)
operating temperature
-10°c ~ 55°c
operating humidity
10% ~ 90% rh
dimensions
440 × 347 × 75 mm
weight
3.3 kg
Product Details
The Tiandy TC-R3440 Pro Series 40 Channel NVR is a reliable and high-performance network video recorder designed for advanced surveillance applications. Supporting up to 40 IP cameras with up to 16MP decoding and 12MP recording, this NVR ensures ultra-clear video monitoring for commercial, industrial, and large-scale security systems.
With advanced S+265 / H.265 compression technology, the system significantly reduces bandwidth and storage requirements—saving up to 75% storage space while maintaining superior image quality. The 4 SATA HDD slots (up to 10TB each) provide flexible and scalable storage for long-term recording.
Equipped with dual Gigabit LAN ports, independent HDMI & VGA outputs (up to 4K), and support for third-party cameras via ONVIF & RTSP, this NVR delivers seamless integration and efficient system management. Additional smart features like VCA alarms, centralized camera control, and cloud upgrade support make it an ideal solution for modern security setups.
