Ubiquiti airFiber Backhaul Radio price is Rs.142,800/-. The Ubiquiti airFiber 5XHD is a next-generation, carrier-grade point-to-point (PtP) backhaul radio powered by a custom LTU IC and optimized for ultra long-distance wireless applications. Designed for deployment in challenging outdoor environments, it delivers blazing throughput of up to 1.3+ Gbps, adaptive modulation up to 1024QAM, and an extended range of 200+ km using xRT™ (xtreme Range Technology). With dual gigabit Ethernet ports, GPS synchronization, advanced interference mitigation, and Bluetooth-enabled setup, it is ideal for ISPs and enterprise-level backhaul operations demanding reliability, performance, and scalability.
Custom LTU silicon for enhanced range and performance
Up to 1.3+ Gbps real throughput and 200+ km range
Spectral efficiency: industry-leading 10.6 bps/Hz
Adaptive modulation up to 1024QAM (4096QAM ready)
GPS-synchronized frame control (2 to 5 ms)
Split TX/RX frequency and bandwidth for interference control

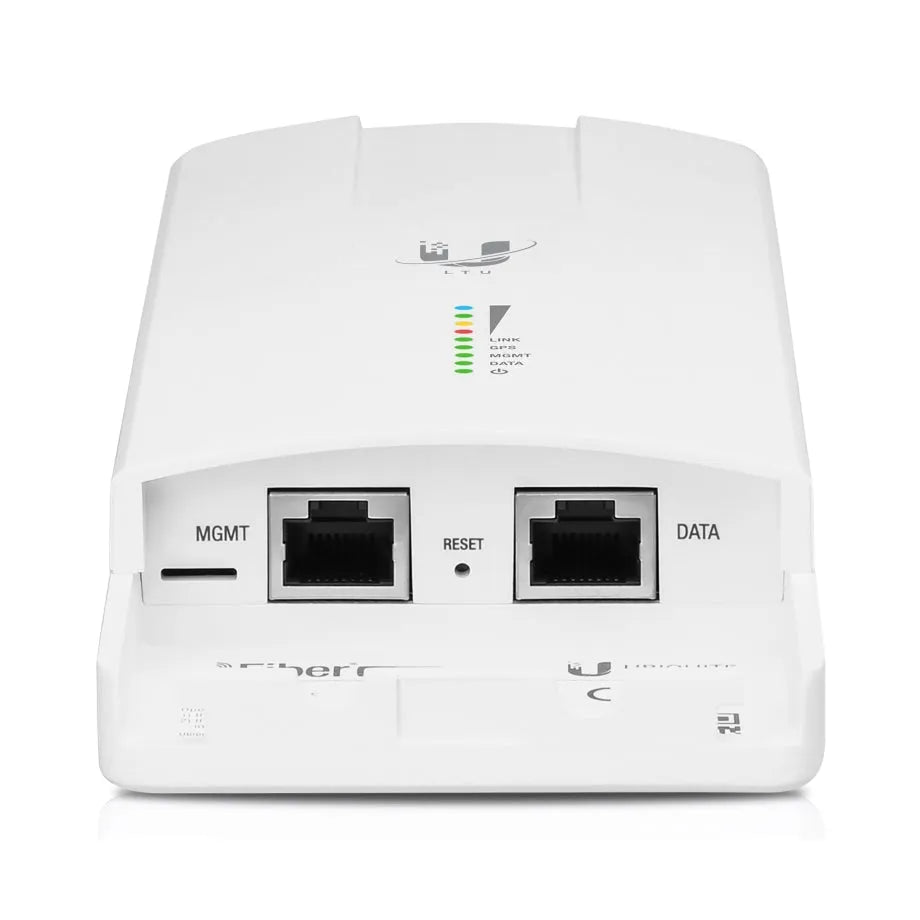

Dual Gigabit Ethernet ports with redundant PoE support
Bluetooth wireless setup via mobile device
AlignLock™ alerts for misalignment detection
Real-time spectrum analysis with active link
Robust surge protection and wide 20–50V DC input
Supports OFDM and OFDMA sub-channel scheduling
Product Specifications
Type
backhaul radio
throughput
1.3+ gbps
range
200+ km
frequency
5150–5250 mhz / 5740–5850 mhz
max tx power
29 dbm
modulation
up to 1024qam
channel bandwidth
10–100 mhz
interfaces
2x gigabit ethernet, bluetooth
power
24v poe (12w max, 20–50v input)
dimensions
224 x 82 x 48 mm
weight
0.35 kg
operating temp
-40 to 55°c
encryption
128-bit aes
mounting
rocket/airfiber x compatible
Product Details
Ubiquiti airFiber Backhaul Radio price is Rs.142,800/-. The Ubiquiti airFiber 5XHD is a next-generation, carrier-grade point-to-point (PtP) backhaul radio powered by a custom LTU IC and optimized for ultra long-distance wireless applications. Designed for deployment in challenging outdoor environments, it delivers blazing throughput of up to 1.3+ Gbps, adaptive modulation up to 1024QAM, and an extended range of 200+ km using xRT™ (xtreme Range Technology). With dual gigabit Ethernet ports, GPS synchronization, advanced interference mitigation, and Bluetooth-enabled setup, it is ideal for ISPs and enterprise-level backhaul operations demanding reliability, performance, and scalability.
