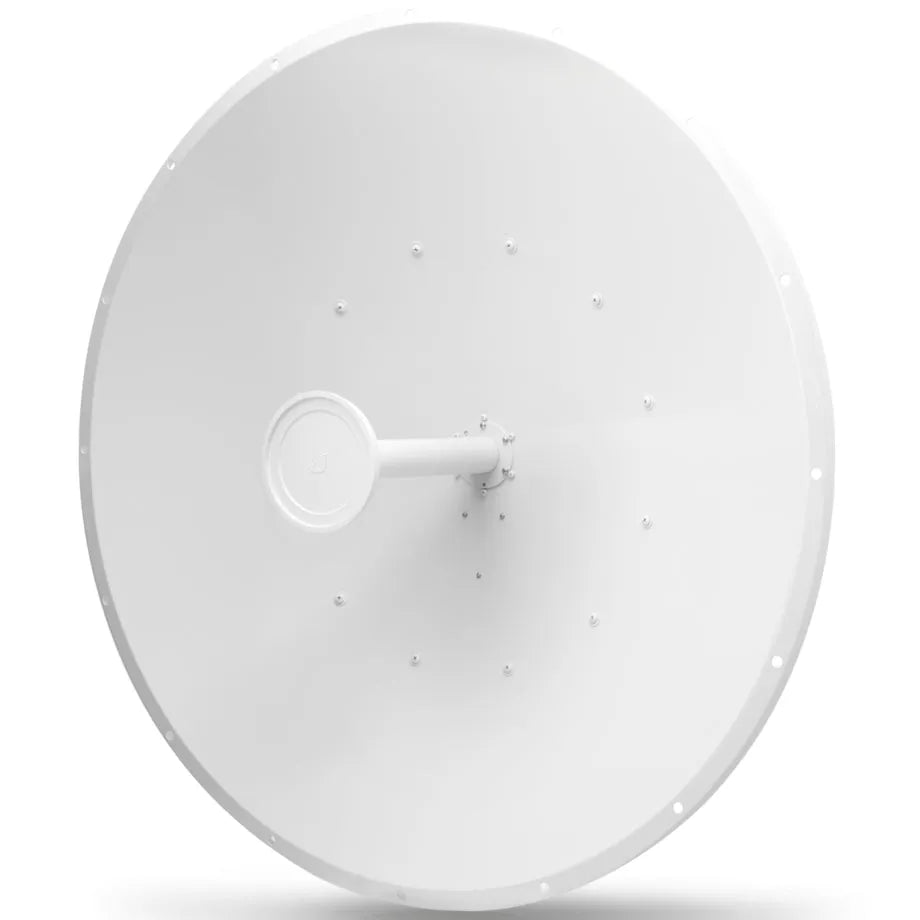

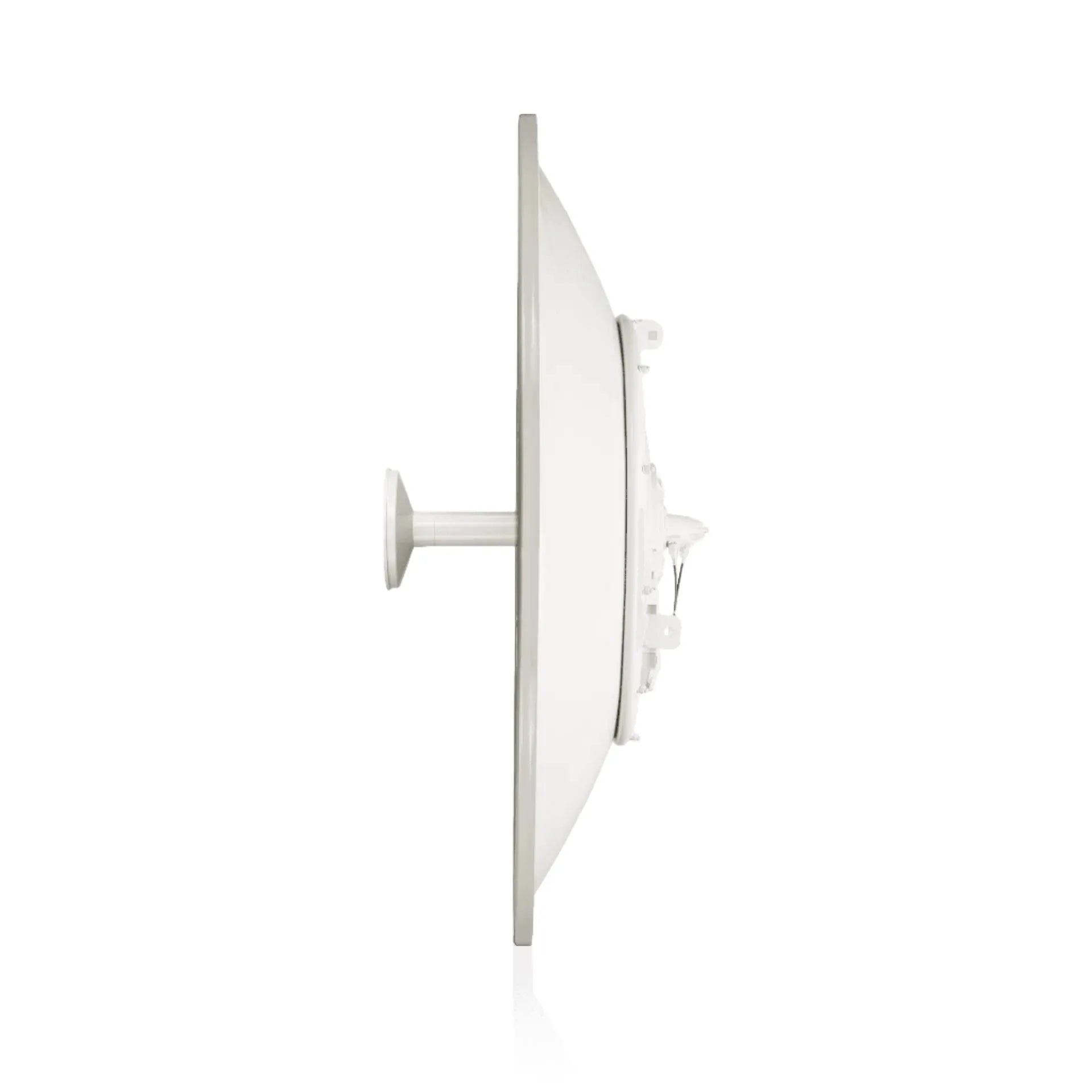

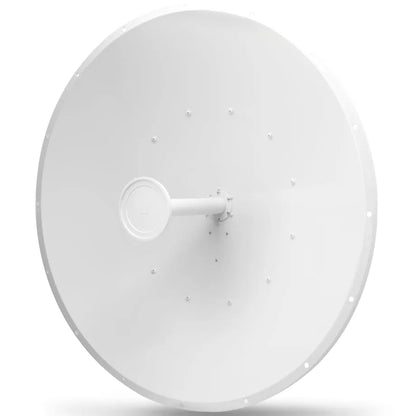

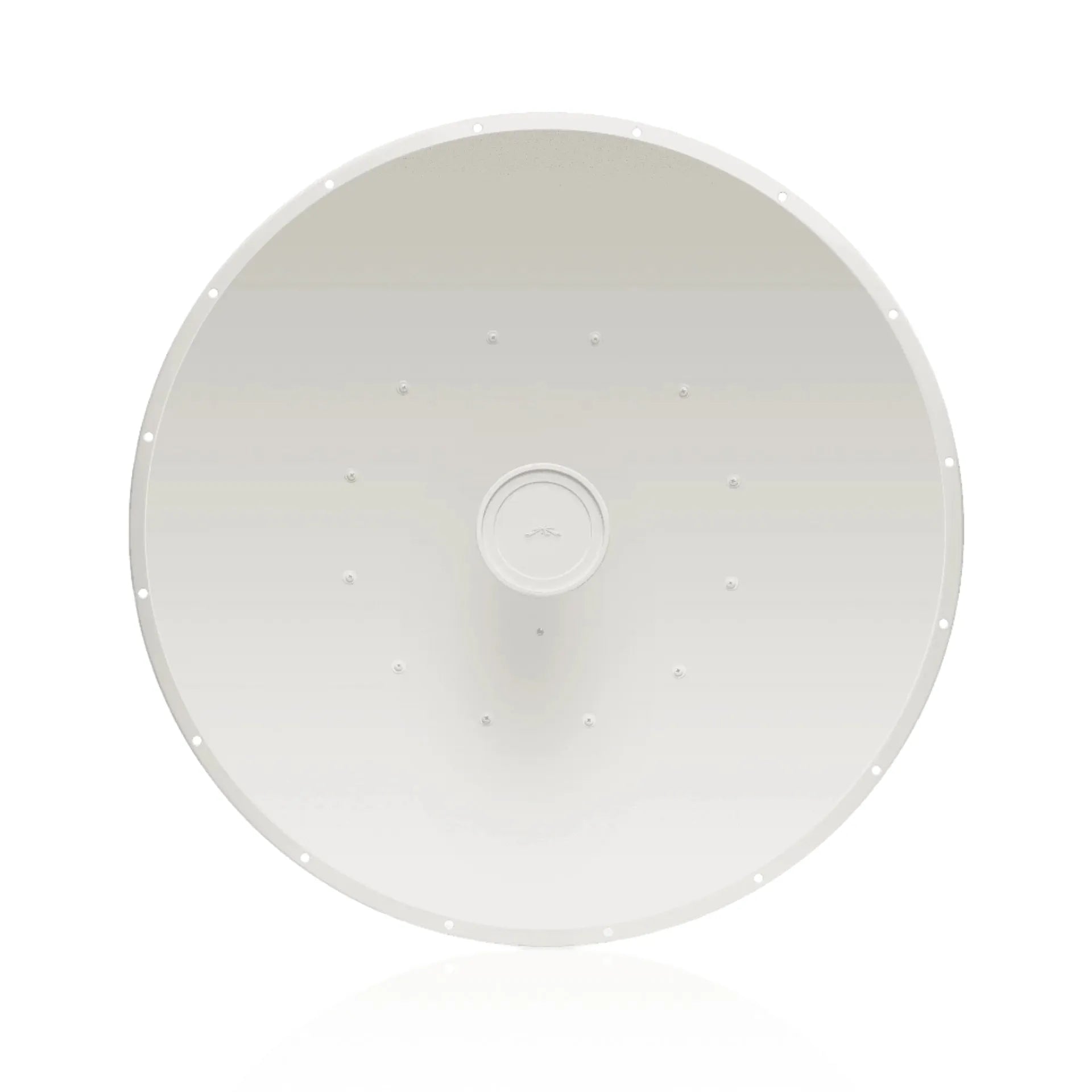

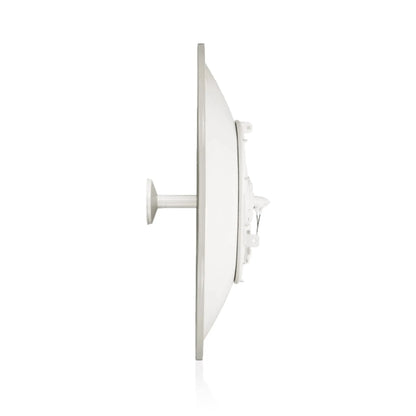

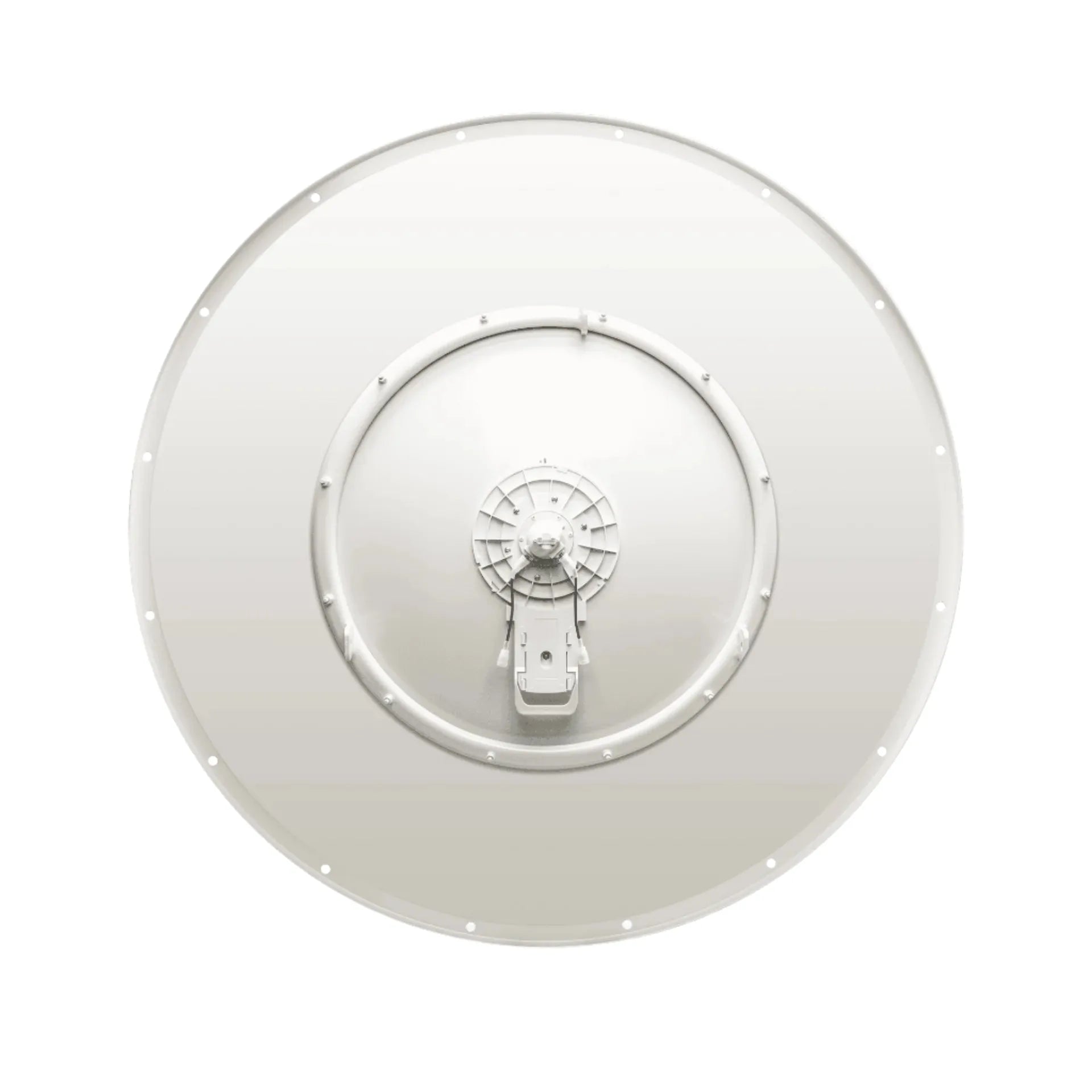

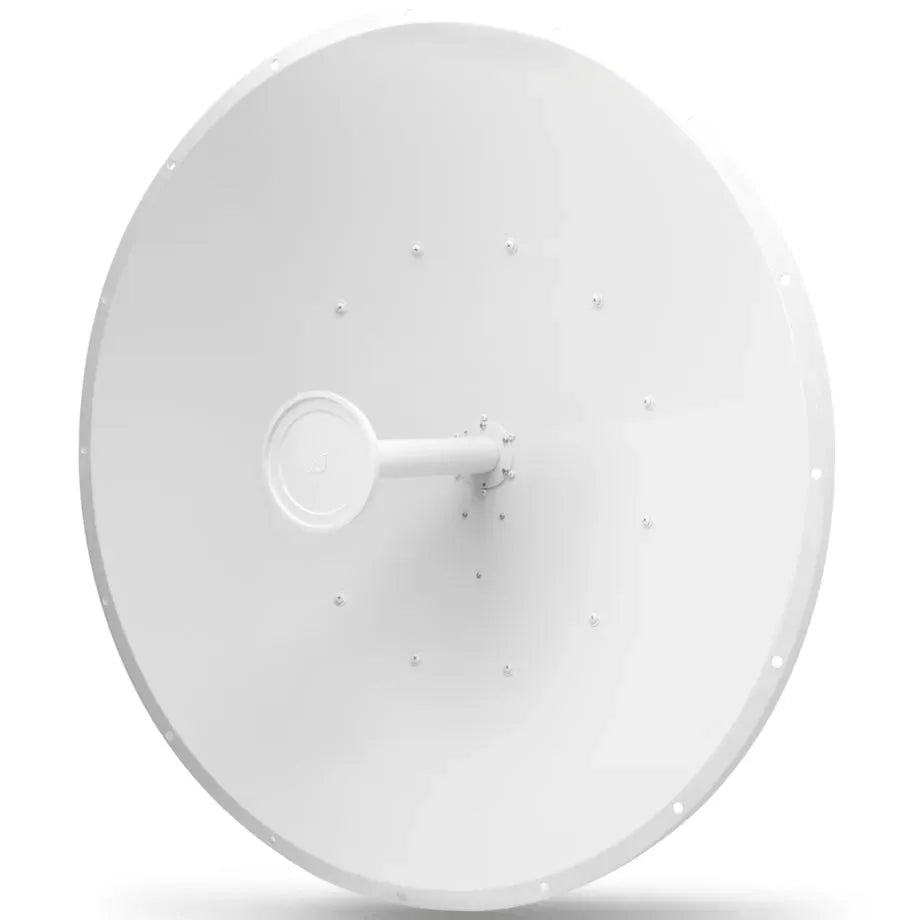

Ubiquiti airFiber Parabolic DishPrice is Rs.134,400/-. The Ubiquiti airFiber 5X AF-5G34-S45 Antenna is a high-performance, long-range directional antenna designed for outdoor Point-to-Point (PtP) links. Engineered for seamless integration with the airFiber 5XHD radio, it delivers robust performance across the 4.9 to 5.8 GHz frequency range. With dual-linear polarization and a 45° slant for improved noise immunity, it enhances SNR and link reliability. The 34 dBi gain ensures extended coverage, and its rugged build with universal pole mounting is ideal for challenging environments.
High gain, Up to 34 dBi for long-range performance
Dual-slant 45° polarization for enhanced SNR and interference resistance
Narrow 3° beamwidth for focused signal transmission
Designed for airFiber 5XHD radios – plug-and-play integration
Robust weatherproof design with universal pole mount
High wind survivability and low VSWR for stable operation
Complies with ETSI EN 302 326 DN2 standards
Product Specifications
Typw
parabolic dish
dimensions
ø1050 x 421 mm
weight
13.5 kg
frequency range
4.9 – 5.8 ghz
gain
30 dbi @ 4.9 ghz, 34 dbi @ 5–5.8 ghz
beamwidth
3° (+/- 45° polarization)
f/b ratio
42 db
vswr
max 1.4
polarization
dual-linear (±45° slant)
cross-pol isolation
min 35 db
wind loading
1,779 n @ 200 km/h
wind survivability
200 km/h
mounting
universal pole mount, airfiber x radio bracket,
weatherproof rf connectors
compliance
etsi en 302 326 dn2
Product Details
Ubiquiti airFiber Parabolic DishPrice is Rs.134,400/-. The Ubiquiti airFiber 5X AF-5G34-S45 Antenna is a high-performance, long-range directional antenna designed for outdoor Point-to-Point (PtP) links. Engineered for seamless integration with the airFiber 5XHD radio, it delivers robust performance across the 4.9 to 5.8 GHz frequency range. With dual-linear polarization and a 45° slant for improved noise immunity, it enhances SNR and link reliability. The 34 dBi gain ensures extended coverage, and its rugged build with universal pole mounting is ideal for challenging environments.
