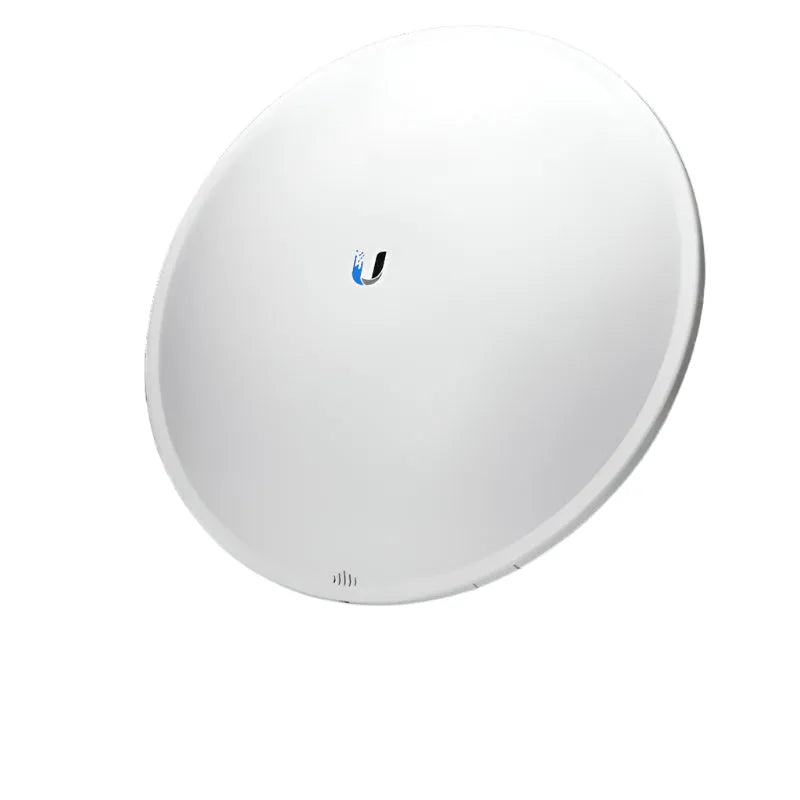

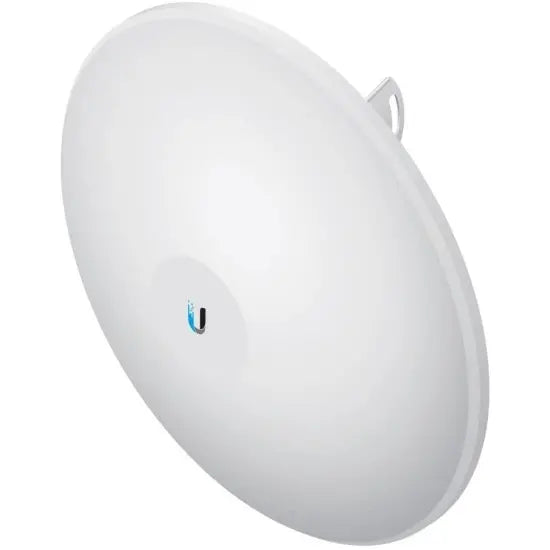

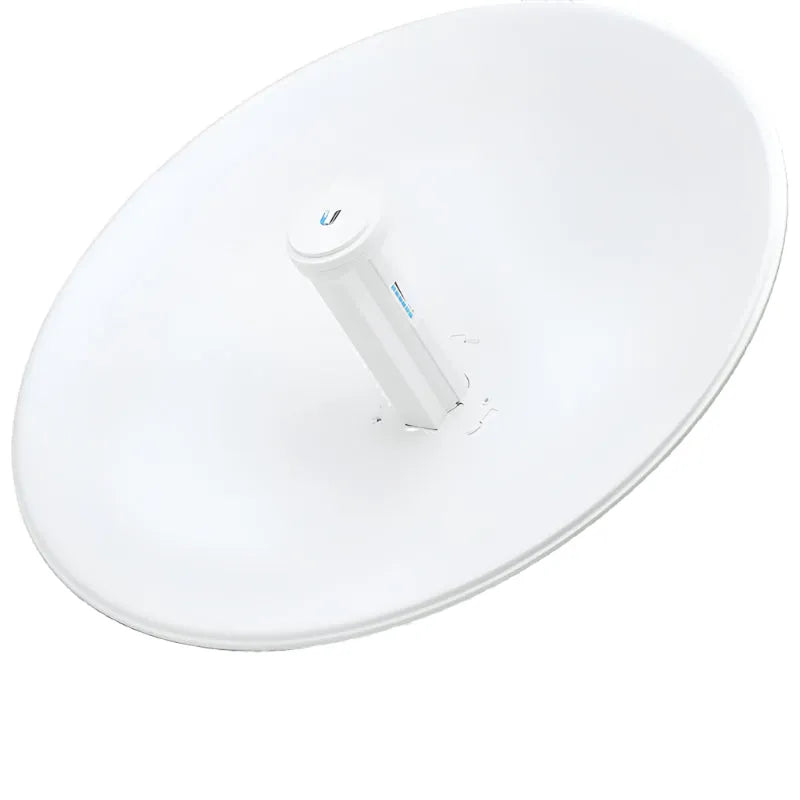

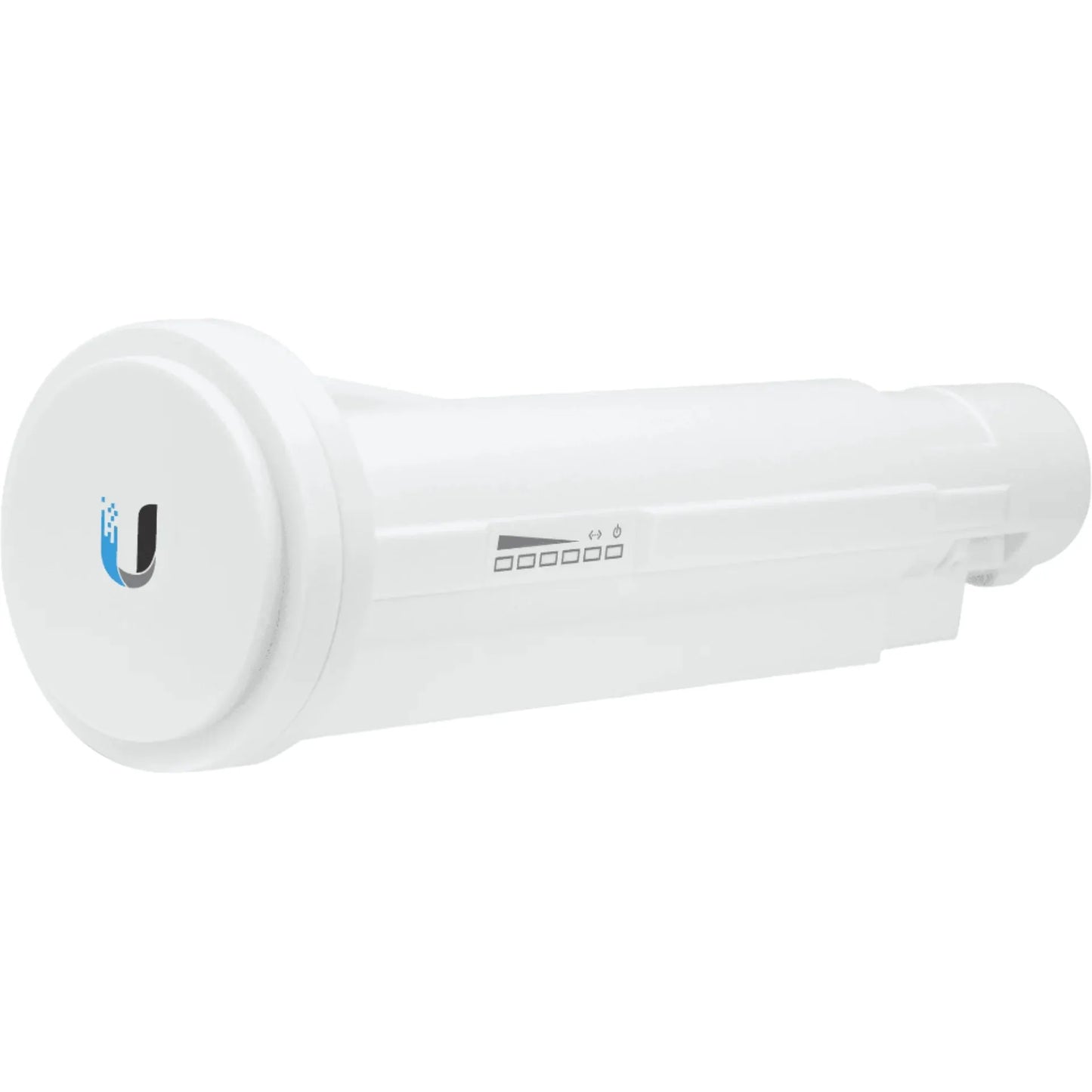

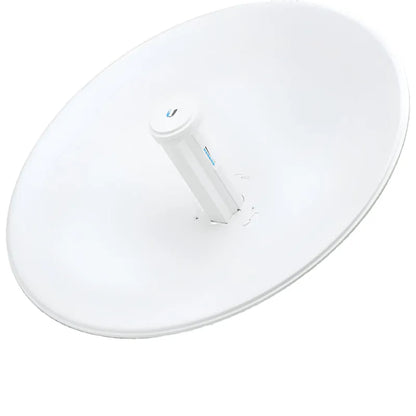

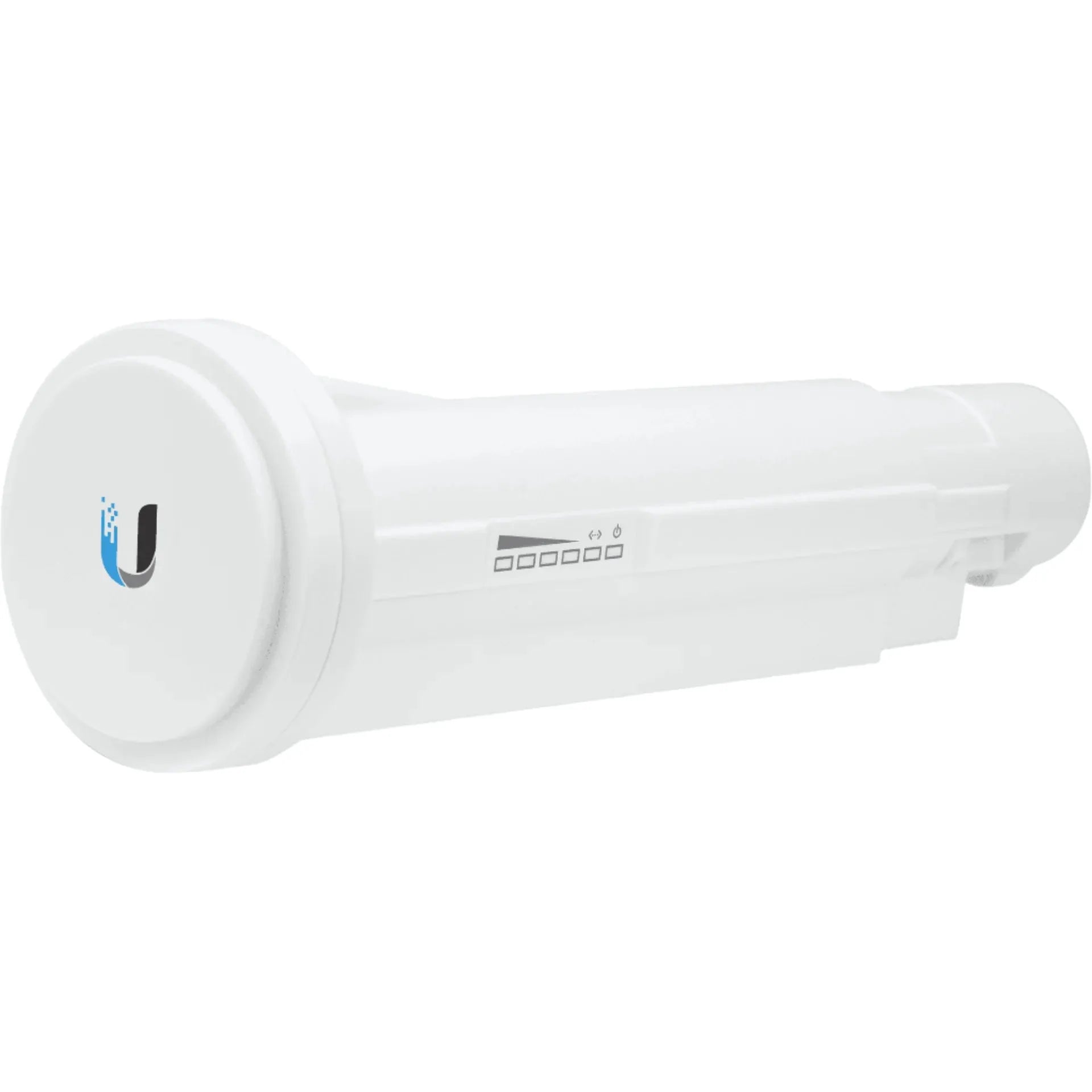

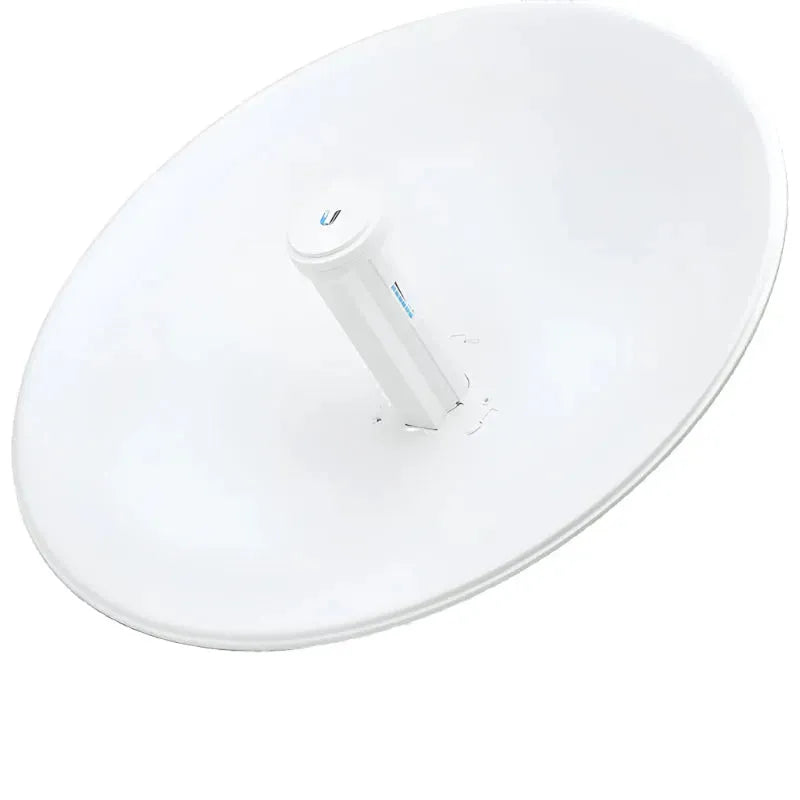

Ubiquiti airMAX PowerBeam Price is Rs.31,800/-. The Ubiquiti PowerBeam AC PBE-5AC-500 is a high-performance airMAX bridge engineered for long-range CPE deployments requiring maximum throughput and noise immunity. Featuring a 27 dBi dish reflector with InnerFeed technology, it integrates the radio into the antenna feedhorn to eliminate cable loss and enhance performance. Leveraging proprietary airMAX ac and TDMA protocols, it achieves real TCP/IP throughput of over 450+ Mbps and a range of 25+ km. The enhanced beam directivity improves RF isolation in noisy environments, while airOS 7 delivers an intuitive interface with powerful diagnostics and RF analytics through airView. Designed for easy installation and durability, the PowerBeam AC is an ideal solution for reliable point-to-point links in challenging wireless environments.
Proprietary airMAX ac technology with TDMA protocol
airOS 7 with intuitive UI, airView, and advanced RF analytics
Strong noise immunity with directional beamwidth
Corrosion-resistant mounting hardware
±15° tilt adjustment with simple pole-mounting
WPA2 security and automatic transmit power control
Product Specifications
Type
ubiquiti airmax m5 500 ac bridge powerbeam
sensitivity
-65 to -96 dbm
ports
1 x 10/100/1000 mb/s
gigabit ethernet (rj45) poe
antenna gain
27 dbi
dc input power
22 to 26 vdc at 0.5 a
operating humidity
5 to 95%
wireless frequency
5 ghz
memory
128 mb ddr2, 8 mb flash
mount type
pole
operating temperature
-40 to 158°f / -40 to 70°c
power consumption
8.5 w
processor
720 mhz mips 74kc
product type
powerbeam
range
16+ mi (25+ km) range
storage capacity
8 mb
weight
6.95 lb / 3.15 kg
dimensions
20.67 x 20.67 x 12.4" / 525 x 525 x 315 mm
transmit power
18 to 22 dbm
certifications
ce, fcc, ic, rohs
Product Details
Ubiquiti airMAX PowerBeam Price is Rs.31,800/-. The Ubiquiti PowerBeam AC PBE-5AC-500 is a high-performance airMAX bridge engineered for long-range CPE deployments requiring maximum throughput and noise immunity. Featuring a 27 dBi dish reflector with InnerFeed technology, it integrates the radio into the antenna feedhorn to eliminate cable loss and enhance performance. Leveraging proprietary airMAX ac and TDMA protocols, it achieves real TCP/IP throughput of over 450+ Mbps and a range of 25+ km. The enhanced beam directivity improves RF isolation in noisy environments, while airOS 7 delivers an intuitive interface with powerful diagnostics and RF analytics through airView. Designed for easy installation and durability, the PowerBeam AC is an ideal solution for reliable point-to-point links in challenging wireless environments.
