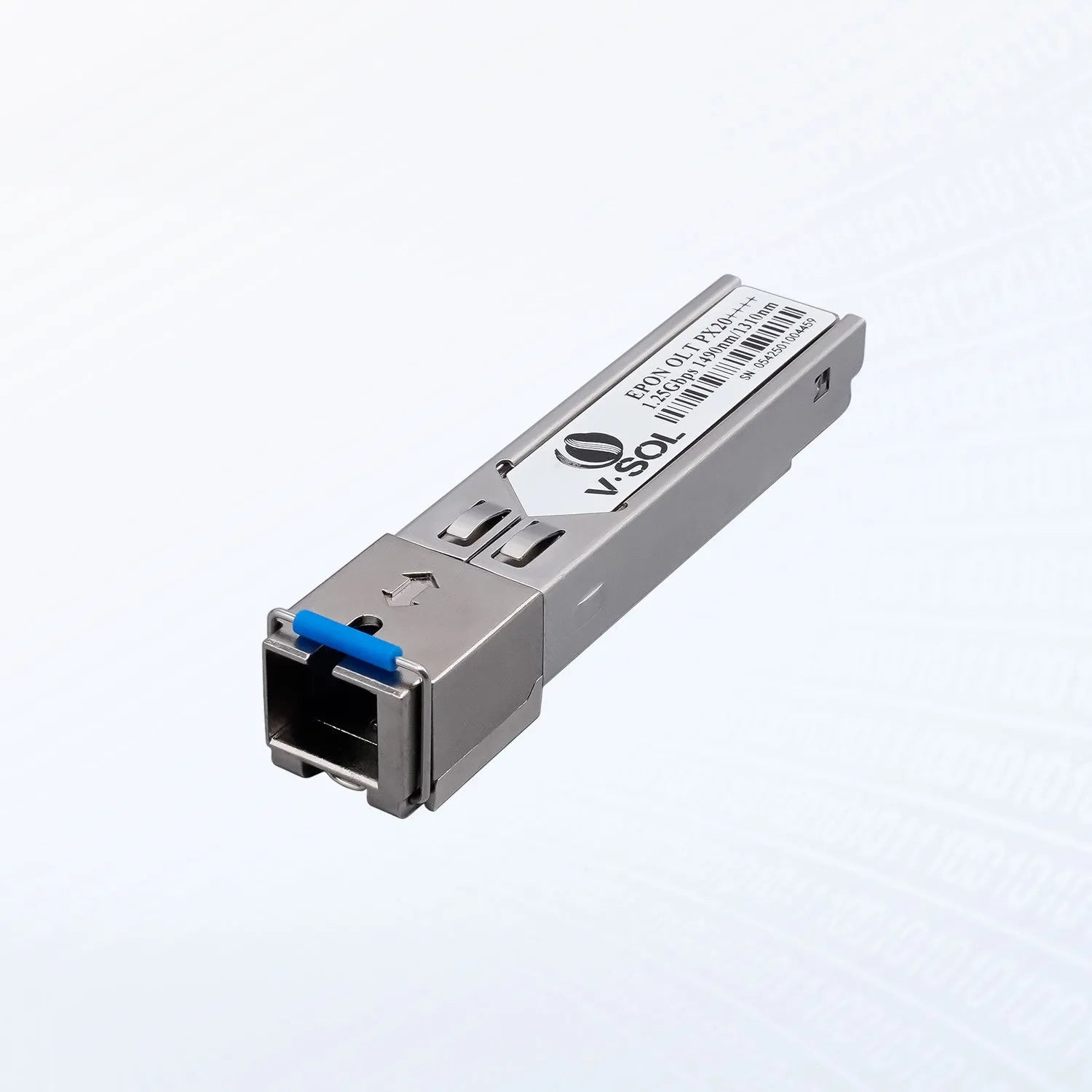

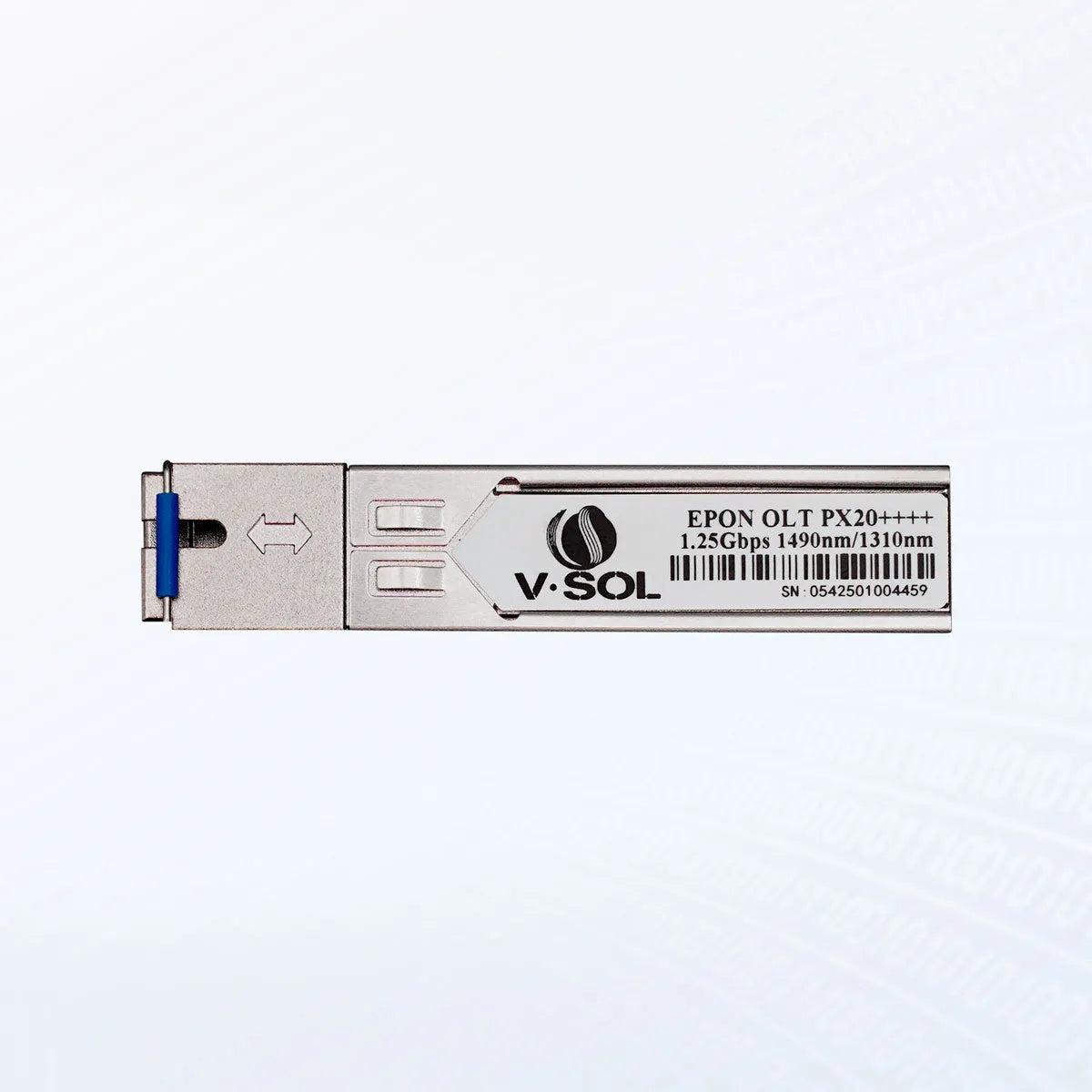

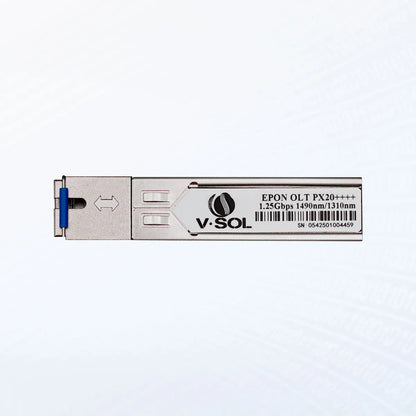

VSOL EPON SFP Optical Module Price in Pakistan is Rs.3,960/-. The VSOL EPON OLT SFP PX20++++ Optical Module is a high-performance SFP transceiver designed for EPON OLT ports, supporting long-distance fiber transmission up to 20 kilometers. With enhanced optical power and sensitivity, it ensures stable, high-speed connectivity for large-scale fiber access networks. Operating at 1.25Gbps with a simplex SC interface, it complies with IEEE 802.3ah standards and is ideal for FTTH/FTTB deployments requiring reliable and long-range EPON solutions.
Class PX20++++ with extended power and sensitivity
Supports up to 20km transmission distance
1.25Gbps symmetric data rate (upstream/downstream)
SC/UPC simplex connector for easy integration
Hot-pluggable SFP form factor
Compatible with IEEE 802.3ah EPON standards
Designed for high-density and long-distance FTTH networks
Product Specifications
Type
optical module
class
px20++++
transmission distance
up to 20km
wavelength (tx/rx)
1490nm / 1310nm
data rate
1.25gbps (upstream and downstream)
connector type
sc/upc
interface type
simplex
form factor
sfp (small form-factor pluggable)
transmission mode
epon
optical power (tx)
+4 to +9 dbm
receiving sensitivity (rx)
-33 dbm
compatibility
vsol olts and standard epon systems
operating temperature
0°c to +70°c
storage temperature
-40°c to +85°c
compliance
ieee 802.3ah, rohs, ce
Product Details
VSOL EPON SFP Optical Module Price in Pakistan is Rs.3,960/-. The VSOL EPON OLT SFP PX20++++ Optical Module is a high-performance SFP transceiver designed for EPON OLT ports, supporting long-distance fiber transmission up to 20 kilometers. With enhanced optical power and sensitivity, it ensures stable, high-speed connectivity for large-scale fiber access networks. Operating at 1.25Gbps with a simplex SC interface, it complies with IEEE 802.3ah standards and is ideal for FTTH/FTTB deployments requiring reliable and long-range EPON solutions.
