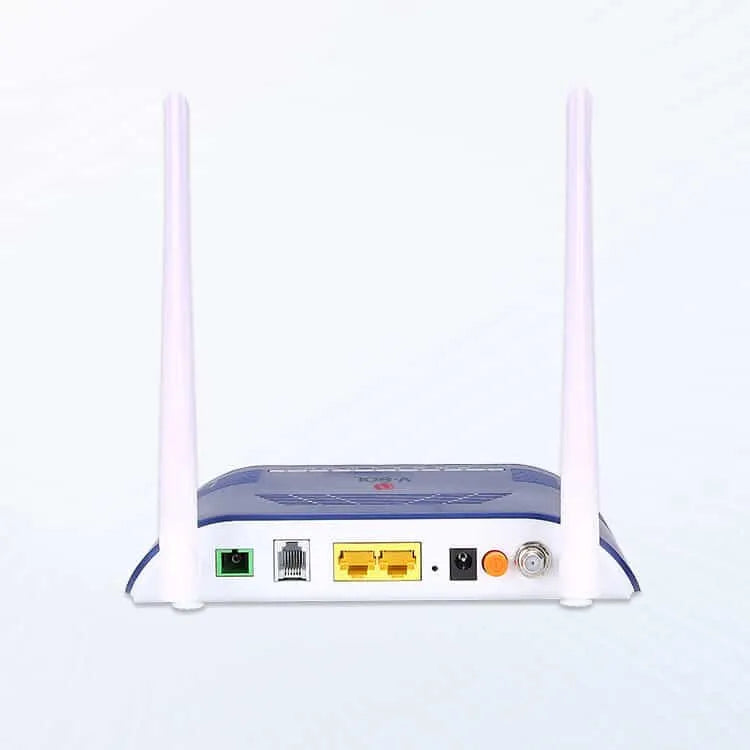

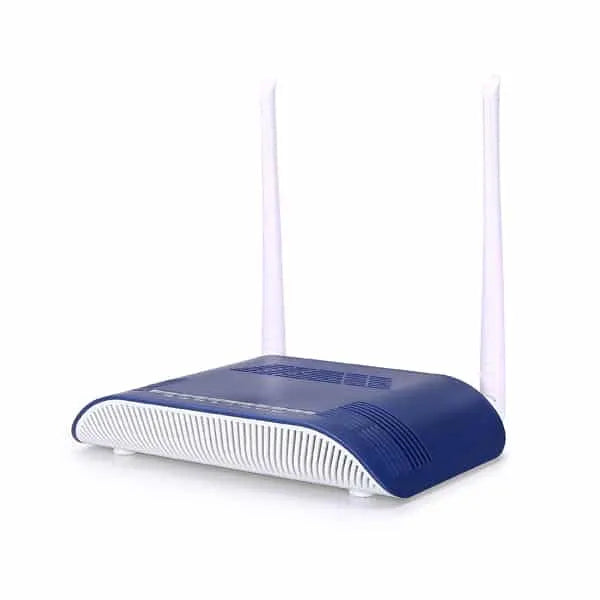

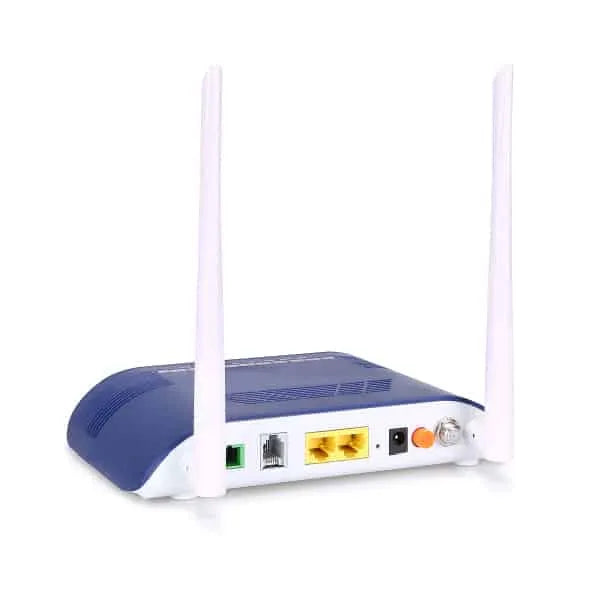

VSOL WiFi 4 Optical Network Unit Price is Rs.7,800/-. The VSOL HG323RGWT is a high-quality GPON-based Optical Network Unit (ONU) with integrated WiFi 4, ideal for FTTH (Fiber to the Home) applications. It combines 1 GPON port, 4 Gigabit Ethernet ports, 1 POTS port, and 2.4GHz WiFi to deliver high-speed broadband, stable voice communication, and seamless wireless connectivity. This unit is perfect for residential and small business environments, providing reliable performance and advanced features like QoS, firewall, and remote management via OMCI/TR069.
Integrated 4 x Gigabit LAN ports for high-speed wired devices
1 x SC/APC GPON port for fiber internet access
1 x POTS port for VoIP telephone service
Built-in WiFi 4 (2.4GHz) with up to 300Mbps wireless speed
Dual external antennas for enhanced wireless coverage
Remote management via OMCI, TR069, and Web GUI
Secure network setup with firewall and filtering features
Advanced QoS for smooth voice, video, and data transmission
Plug-and-play installation for easy deployment
Suitable for triple-play FTTH solutions (Voice, Data, IPTV)
Product Specifications
Type
onu (optical network unit)
pon interface
1 x gpon sc/apc
lan ports
4 x 10/100/1000 mbps rj45 ethernet
voice port
1 x rj11 pots
wifi standard
ieee 802.11 b/g/n (wifi 4)
wifi band
2.4ghz
wifi speed
up to 300mbps
antenna
2 x external 5dbi antennas
pon standards
itu-t g.984/g.988 compliant
optical wavelength
tx 1310nm / rx 1490nm
routing features
nat, dhcp, static routing, port forwarding, dmz
voip protocols
sip, h.248
security features
firewall, mac filtering, ip filtering
management
omci, tr069, web gui, cli
qos
802.1p, dscp, bandwidth control, queue scheduling
power supply
dc 12v/1a
power consumption
< 10w
operating temperature
0°c ~ +50°c
storage temperature
-40°c ~ +70°c
humidity
10%~90% non-condensing
dimensions (l×w×h)
approx. 190mm x 130mm x 35mm
weight
< 315g
mounting
desktop
Product Details
VSOL WiFi 4 Optical Network Unit Price is Rs.7,800/-. The VSOL HG323RGWT is a high-quality GPON-based Optical Network Unit (ONU) with integrated WiFi 4, ideal for FTTH (Fiber to the Home) applications. It combines 1 GPON port, 4 Gigabit Ethernet ports, 1 POTS port, and 2.4GHz WiFi to deliver high-speed broadband, stable voice communication, and seamless wireless connectivity. This unit is perfect for residential and small business environments, providing reliable performance and advanced features like QoS, firewall, and remote management via OMCI/TR069.
