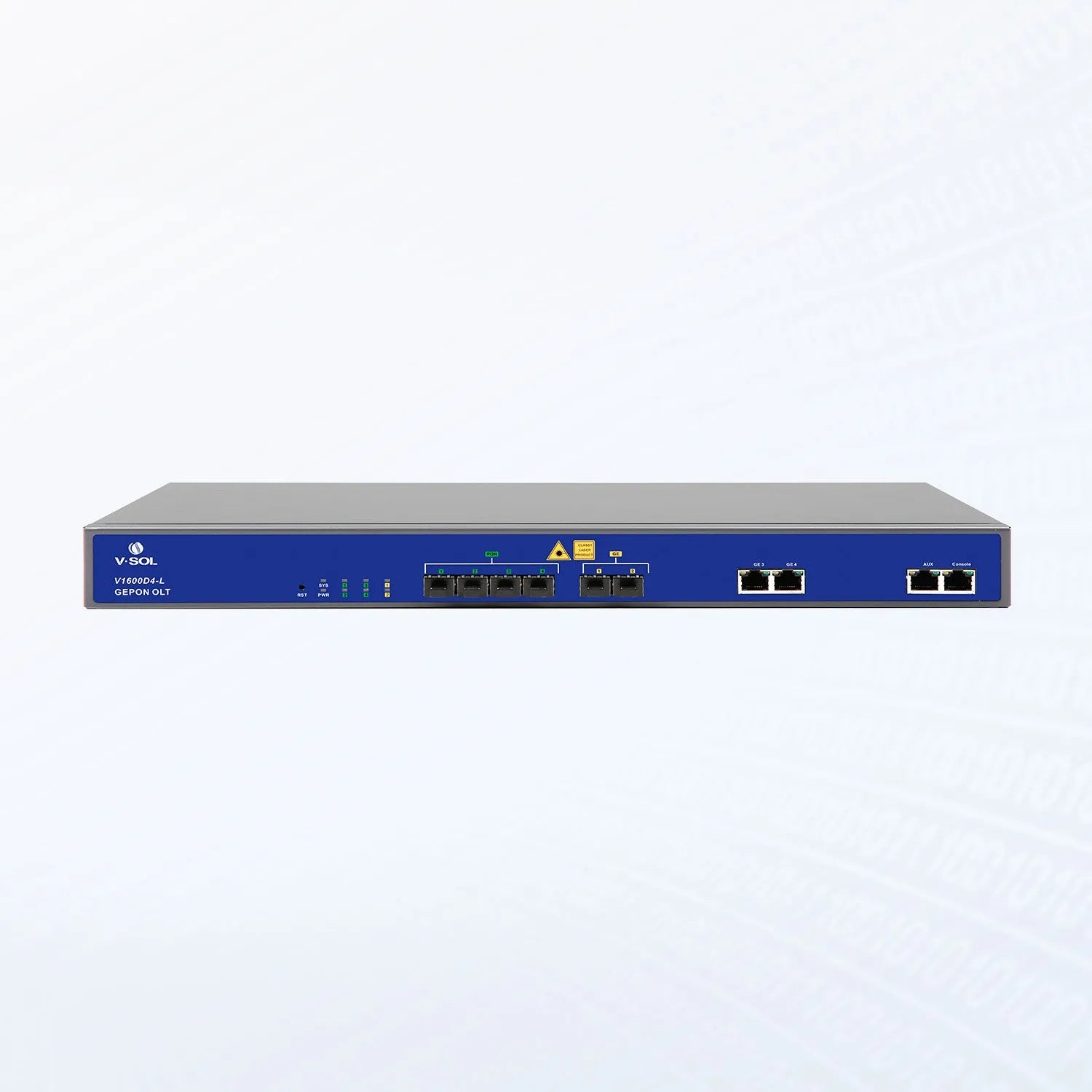

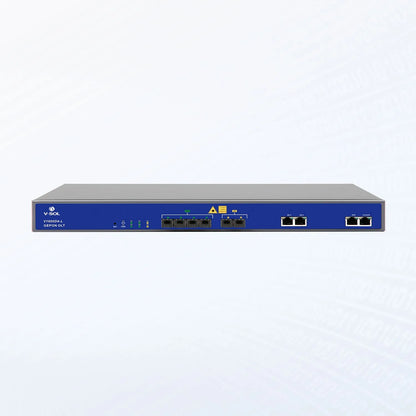

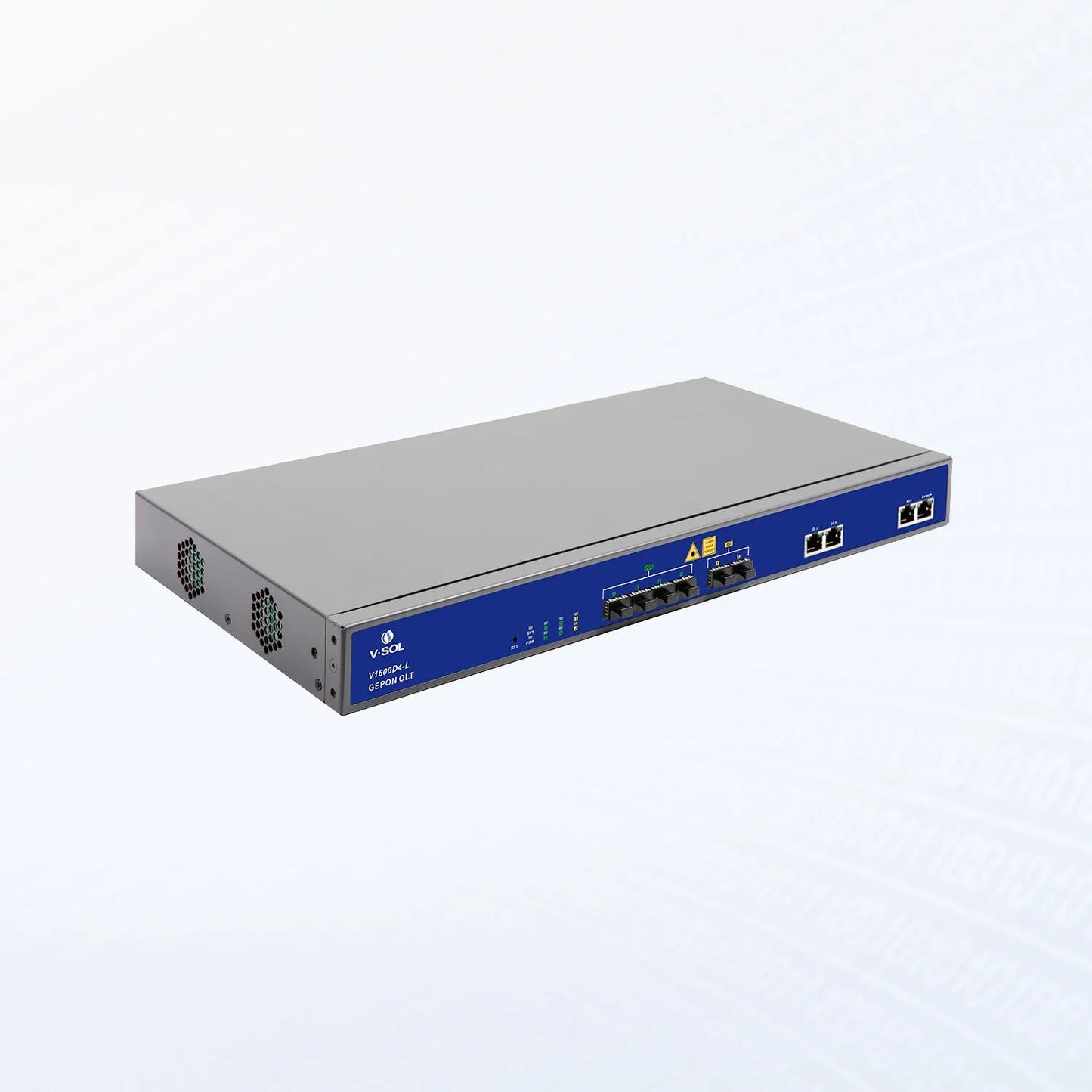

VSOL 4 Port EPON Optical Line Terminal Price is Rs.66,900/-. The VSOL V1600D4-L is a high-performance 4-port EPON Optical Line Terminal designed for medium-scale FTTH, FTTB, and data access networks. Supporting up to 256 ONUs with 1:64 split ratio per port, this 1U rackmount OLT provides four uplink interfaces (2 × GE RJ45 and 2 × SFP), ensuring flexible and reliable data transmission. With Layer 2 switching capabilities, VLAN management, QoS, IGMP, and easy configuration via CLI, Web UI, SNMP, or EMS, the V1600D4-L is ideal for ISPs and enterprises needing a stable, scalable EPON solution compliant with IEEE 802.3ah.
Easy configuration and monitoring via Web, CLI, SNMP, EMS
Low power consumption and fanless operation
Full compliance with IEEE 802.3ah EPON standard
Product Specifications
Type
optical line terminal
pon ports
4 × epon
max split ratio
1
max onus supported
256
uplink ports
2 × ge (rj45), 2 × sfp
pon interface type
sc/upc
data rate
1.25gbps downstream / 1.25gbps upstream
switching capacity
16gbps
forwarding rate
11.9mpps
layer support
layer 2
management interfaces
web ui, cli, snmp, ems
power supply
ac 100–240v, 50/60hz
power consumption
<25w
dimensions (w×d×h)
442mm × 200mm × 43.6mm
mounting
1u, 19-inch rack-mountable
operating temperature
-5°c to +55°c
storage temperature
-40°c to +85°c
humidity
10%–90% non-condensing
compliance
ieee 802.3ah, ce, fcc, rohs
Product Details
VSOL 4 Port EPON Optical Line Terminal Price is Rs.66,900/-. The VSOL V1600D4-L is a high-performance 4-port EPON Optical Line Terminal designed for medium-scale FTTH, FTTB, and data access networks. Supporting up to 256 ONUs with 1:64 split ratio per port, this 1U rackmount OLT provides four uplink interfaces (2 × GE RJ45 and 2 × SFP), ensuring flexible and reliable data transmission. With Layer 2 switching capabilities, VLAN management, QoS, IGMP, and easy configuration via CLI, Web UI, SNMP, or EMS, the V1600D4-L is ideal for ISPs and enterprises needing a stable, scalable EPON solution compliant with IEEE 802.3ah.
