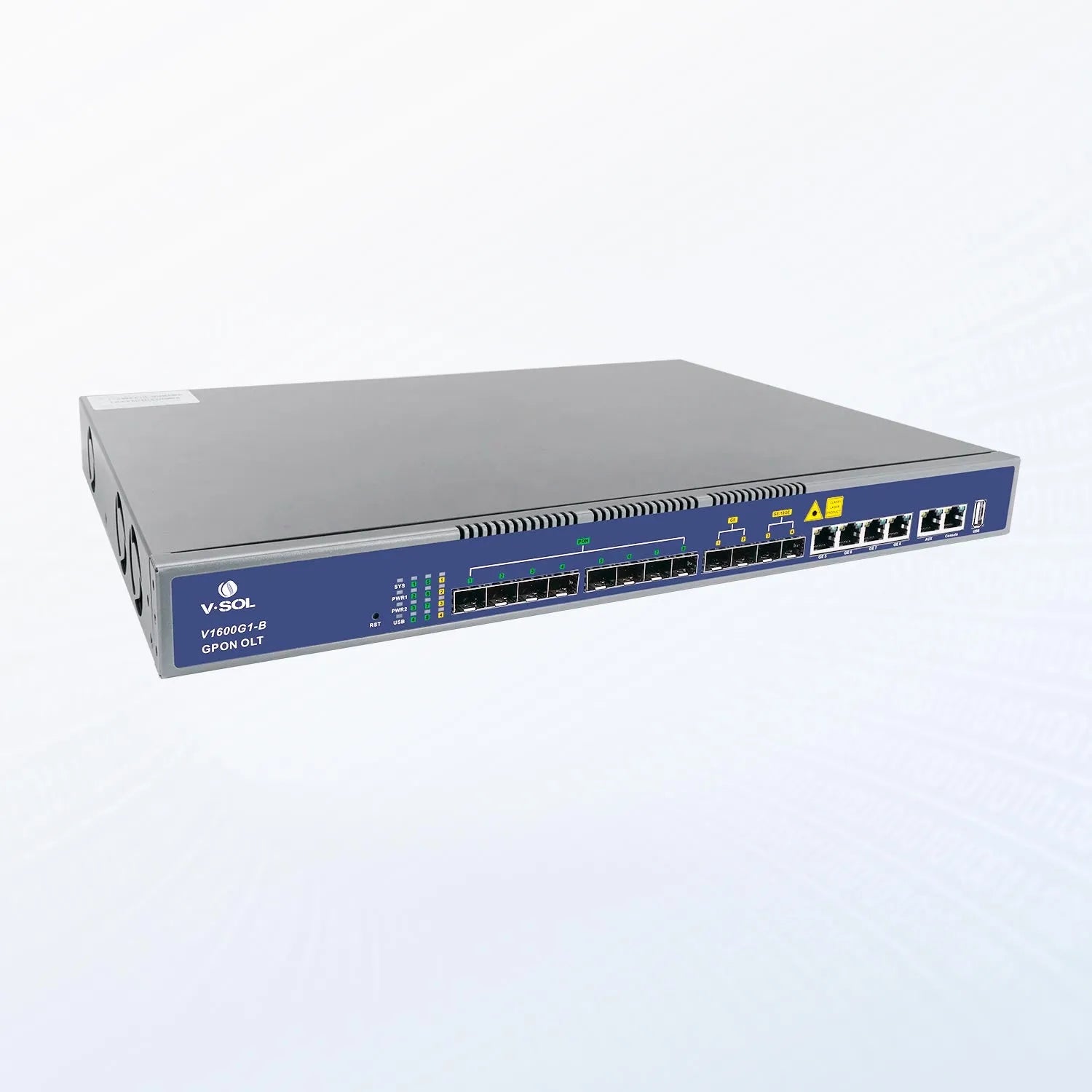

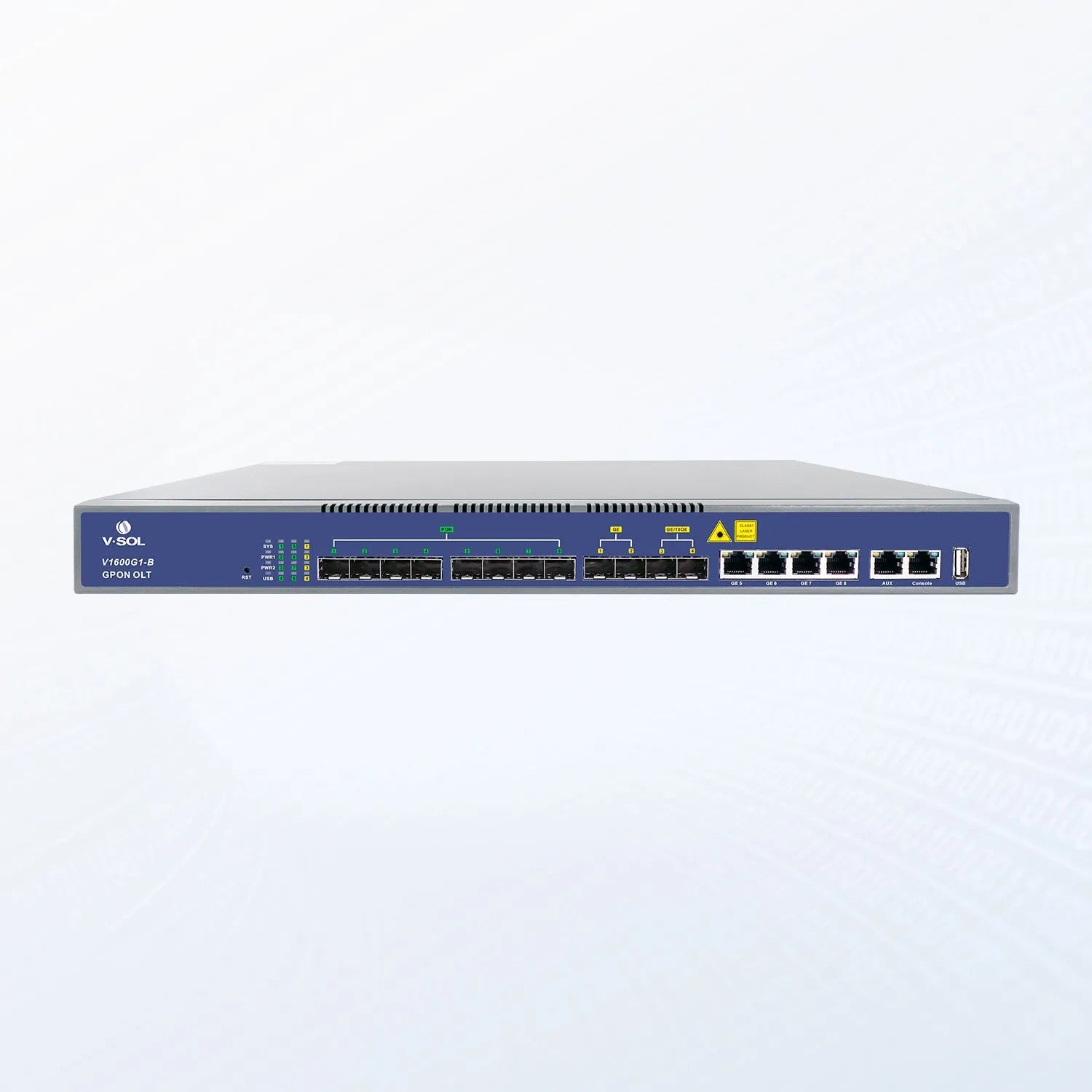

VSOL 8 Port GPON Optical Line Terminal Price is Rs.286,800/-. The VSOL V1600G1-B is a high-density 8-port GPON Optical Line Terminal designed to meet the demands of large-scale FTTH and FTTB deployments. Supporting up to 1024 ONUs with 1:128 splitting per port, this carrier-grade OLT delivers high performance, strong reliability, and versatile network management. It features 4 × 10GE SFP+ and 4 × GE combo uplink ports, along with advanced Layer 2 capabilities like VLAN, QoS, IGMP, and multicast. Built for scalability and long-term fiber expansion, the V1600G1-B complies with ITU-T G.984 standards and is ideal for ISPs, data centers, and enterprises.
Advanced Layer 2 switching, VLAN, QoS, IGMP, and multicast support
Carrier-grade design with high reliability and low power consumption
Centralized management via CLI, Web UI, SNMP, and EMS
1U rack-mount form factor for easy deployment
Fully compliant with ITU-T G.984 GPON standard
Product Specifications
Type
optical line terminal
pon ports
8 × gpon
max split ratio
1
max onus supported
1024
uplink ports
4 × 10ge sfp+, 4 × ge combo (rj45/sfp)
pon interface type
sc/upc
data rate
2.5gbps downstream / 1.25gbps upstream
switching capacity
148gbps
forwarding rate
111mpps
layer support
layer 2
management interfaces
cli, web ui, snmp, ems
power supply
ac 100–240v, 50/60hz
power consumption
≤60w
dimensions (w×d×h)
442mm × 320mm × 43.6mm
mounting
1u, 19-inch rack-mountable
operating temperature
-5°c to +55°c
storage temperature
-40°c to +85°c
humidity
10%–90% non-condensing
compliance
itu-t g.984, ce, fcc, rohs
Product Details
VSOL 8 Port GPON Optical Line Terminal Price is Rs.286,800/-. The VSOL V1600G1-B is a high-density 8-port GPON Optical Line Terminal designed to meet the demands of large-scale FTTH and FTTB deployments. Supporting up to 1024 ONUs with 1:128 splitting per port, this carrier-grade OLT delivers high performance, strong reliability, and versatile network management. It features 4 × 10GE SFP+ and 4 × GE combo uplink ports, along with advanced Layer 2 capabilities like VLAN, QoS, IGMP, and multicast. Built for scalability and long-term fiber expansion, the V1600G1-B complies with ITU-T G.984 standards and is ideal for ISPs, data centers, and enterprises.
