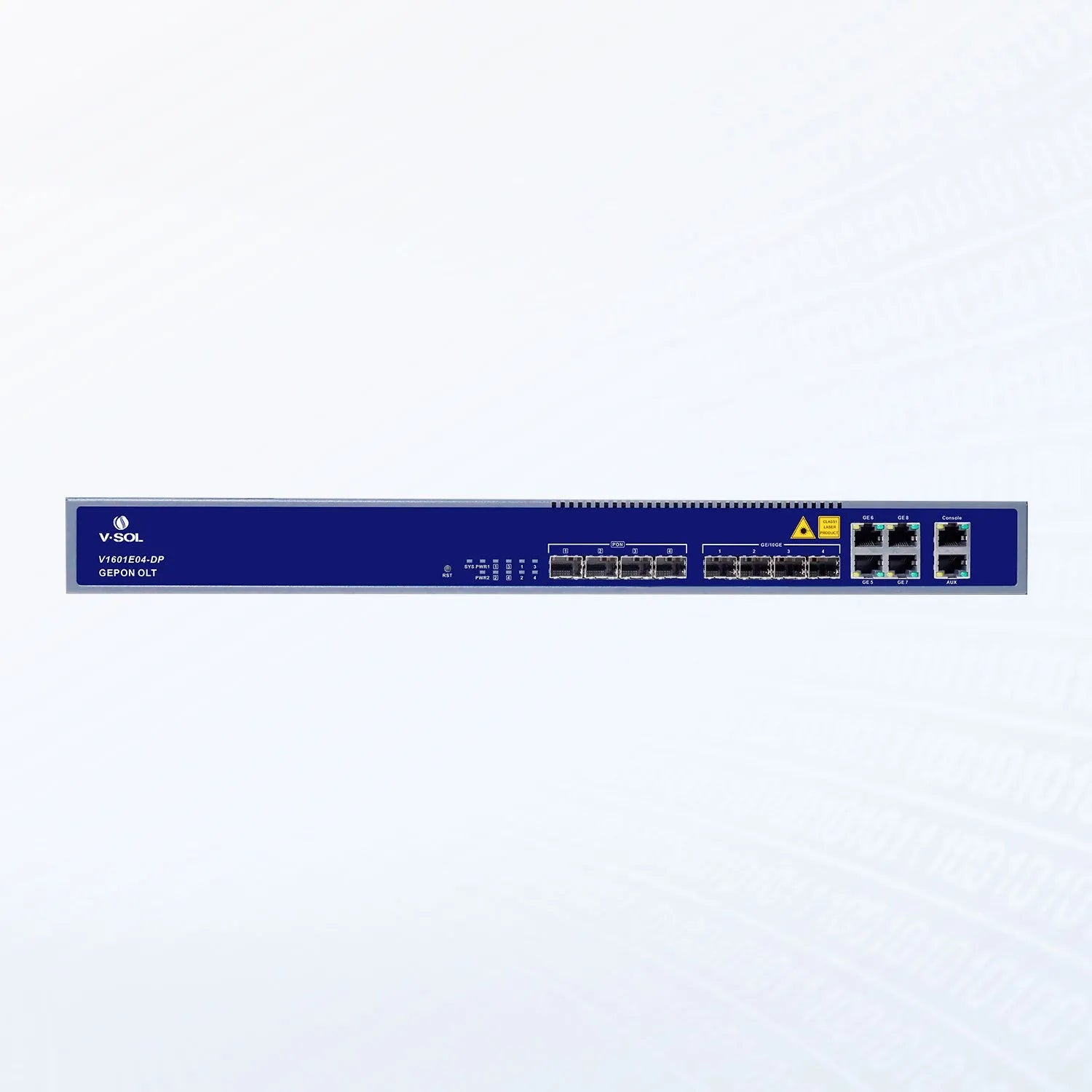

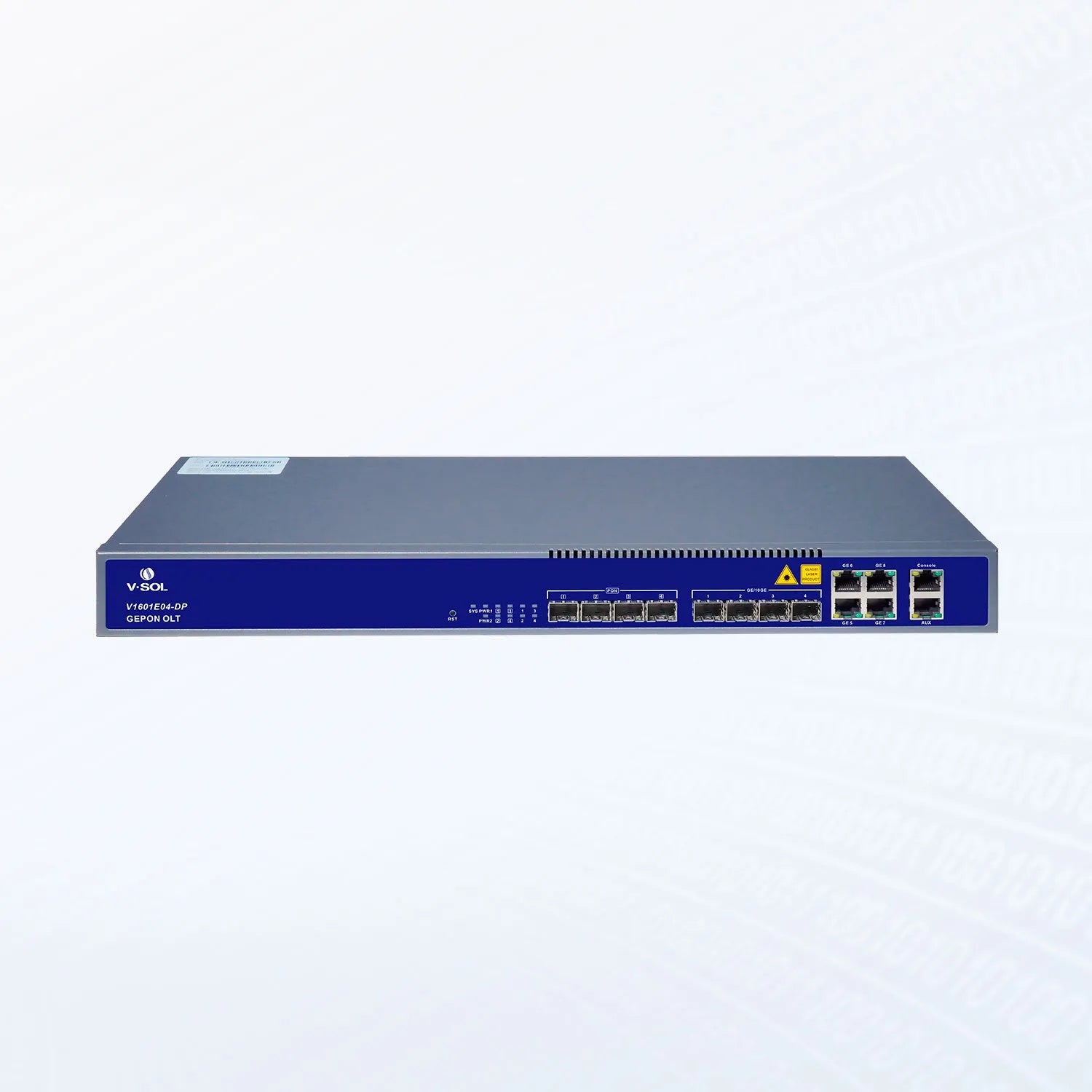

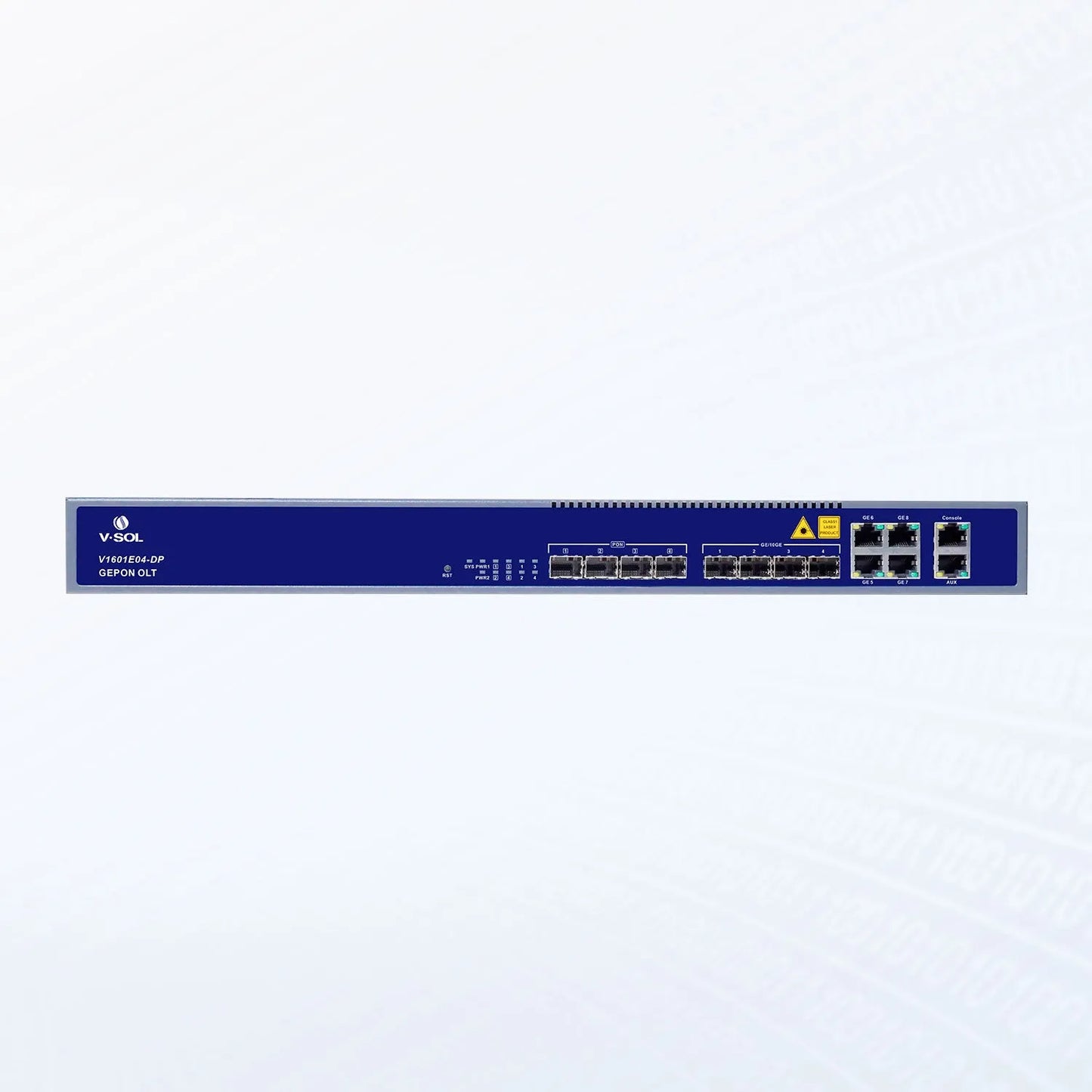

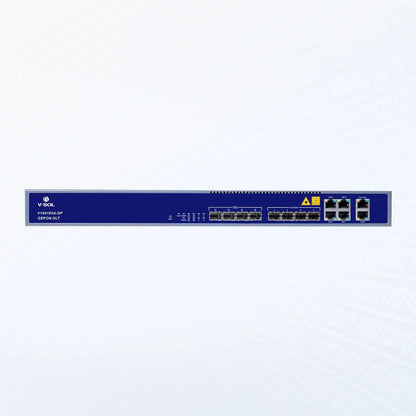

VSOL 4 Port EPON Optical Line Terminal Price is Rs.72,000/-. The VSOL V1601E04-DP/BT is a desktop 4-port EPON Optical Line Terminal ideal for compact FTTH deployments, rural networks, and small ISPs. It supports up to 256 ONUs with a 1:64 split ratio per port and includes 4 uplink ports (2 × GE RJ45 and 2 × SFP) for flexible connectivity. Designed with a fanless structure, it ensures silent and energy-efficient operation while offering Layer 2 switching, VLAN management, QoS, and multicast features. With full IEEE 802.3ah EPON standard compliance and easy management through CLI, Web, SNMP, and EMS, it delivers stable and cost-effective fiber access.
Easy operation and monitoring via Web, CLI, SNMP, EMS
Plug-and-play installation
IEEE 802.3ah compliant
Product Specifications
Type
optical line terminal
pon ports
4 × epon
max split ratio
1
max onus supported
256
uplink ports
2 × ge (rj45), 2 × sfp
pon interface type
sc/upc
data rate
1.25gbps downstream / 1.25gbps upstream
switching capacity
16gbps
forwarding rate
11.9mpps
layer support
layer 2
management interfaces
cli, web ui, snmp, ems
power supply
ac 100–240v, 50/60hz
power consumption
<25w
dimensions (w×d×h)
260mm × 200mm × 45mm
mounting
desktop or wall-mount
weight
approximately 2.07 kg
operating temperature
-5°c to +55°c
storage temperature
-40°c to +85°c
humidity
10%–90% non-condensing
compliance
ieee 802.3ah, ce, fcc, rohs
Product Details
VSOL 4 Port EPON Optical Line Terminal Price is Rs.72,000/-. The VSOL V1601E04-DP/BT is a desktop 4-port EPON Optical Line Terminal ideal for compact FTTH deployments, rural networks, and small ISPs. It supports up to 256 ONUs with a 1:64 split ratio per port and includes 4 uplink ports (2 × GE RJ45 and 2 × SFP) for flexible connectivity. Designed with a fanless structure, it ensures silent and energy-efficient operation while offering Layer 2 switching, VLAN management, QoS, and multicast features. With full IEEE 802.3ah EPON standard compliance and easy management through CLI, Web, SNMP, and EMS, it delivers stable and cost-effective fiber access.
