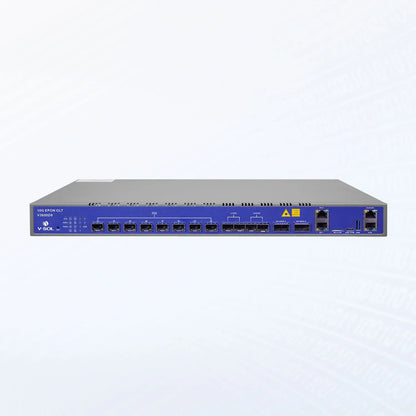

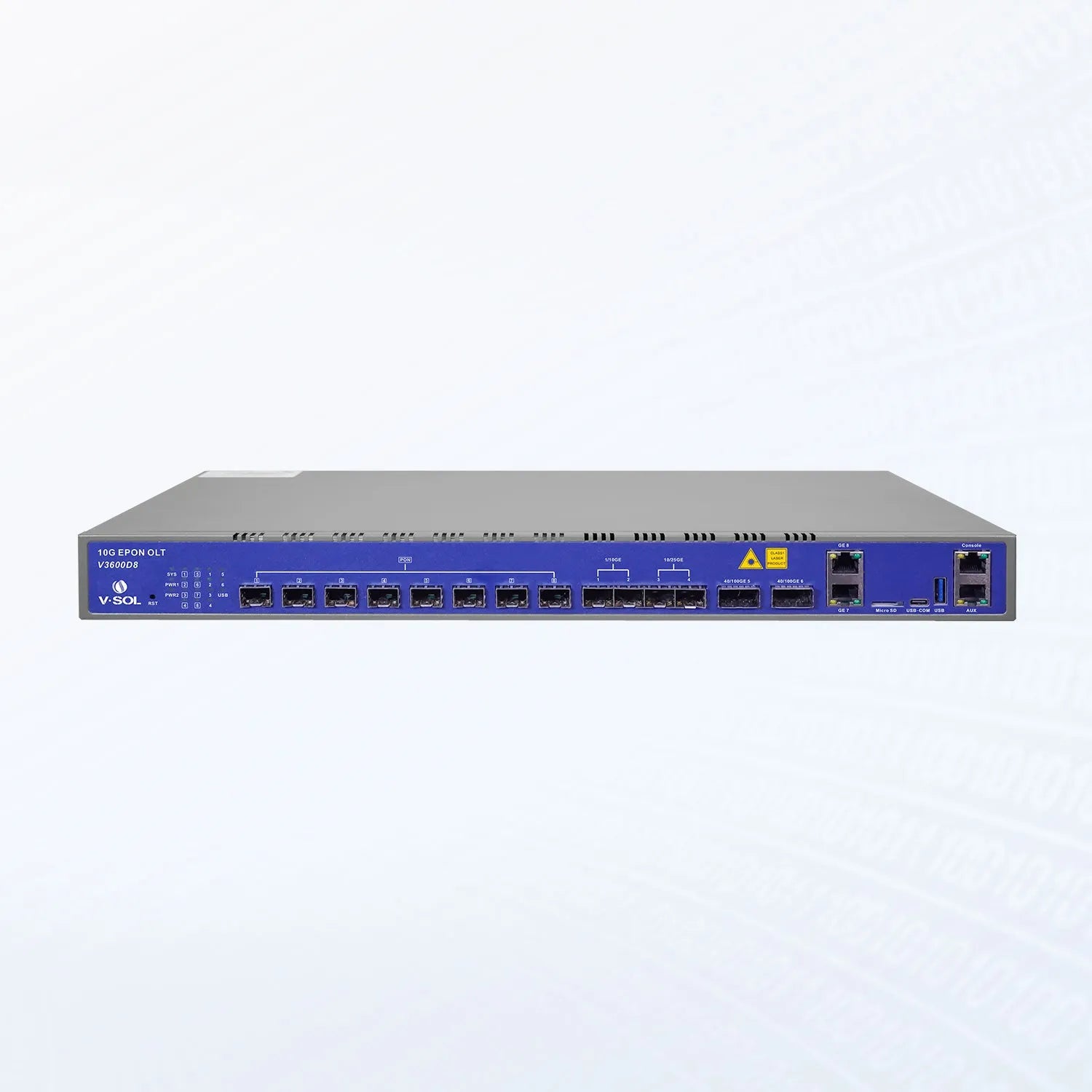

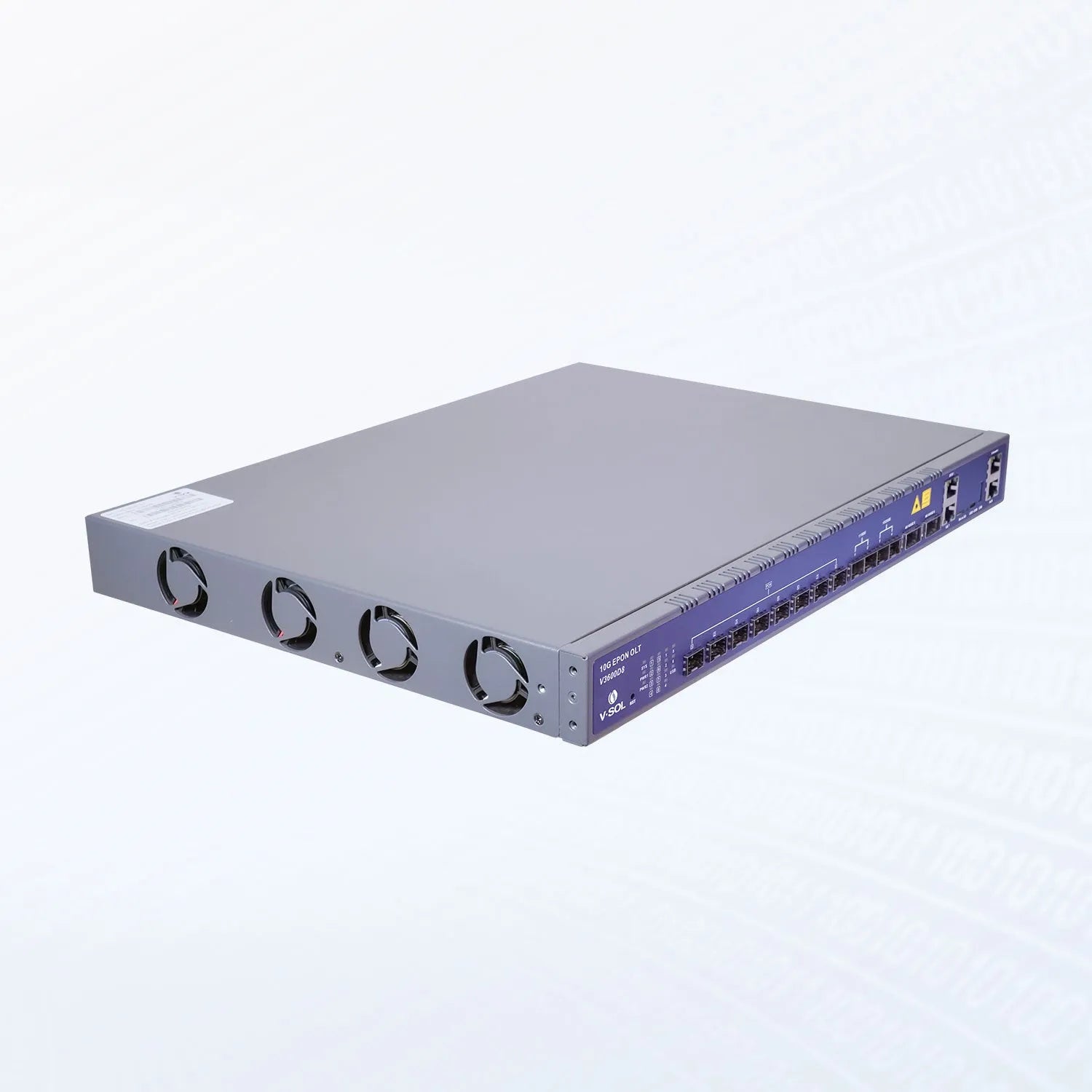

VSOL 8 Port 10G EPON Optical Line Terminal Price is Rs.991,200/-. The VSOL V3600D8 is a high-performance 8-port 10G EPON Optical Line Terminal designed for next-generation FTTH, FTTB, and enterprise fiber networks. It supports up to 512 ONUs with a 1:64 split ratio per port and ensures high-speed connectivity with 4 × 10GE SFP+ and 4 × GE Combo uplink ports. Built to deliver superior performance, scalability, and reliability, the V3600D8 supports advanced Layer 2 switching, QoS, VLAN, multicast, and flexible management via CLI, Web UI, SNMP, and EMS. Ideal for large-scale deployments, this 1U rackmount OLT is fully compliant with IEEE 802.3av 10G EPON standards.
Full Web UI, CLI, SNMP, and EMS management support
Low power consumption, fanless design
IEEE 802.3av standard compliant
Product Specifications
Type
optical line terminal
pon ports
8 × 10g epon
pon interface type
sc/upc
max split ratio
1
max onus supported
512
uplink ports
4 × 10ge sfp+, 4 × ge combo (rj45/sfp)
downstream data rate
10gbps
upstream data rate
10gbps
switching capacity
208gbps
forwarding rate
154.76mpps
layer support
layer 2
management interfaces
web ui, cli, snmp, ems
power supply
ac 100–240v, 50/60hz
power consumption
=70w
dimensions (w×d×h)
442mm × 320mm × 43.6mm
mounting
1u, 19-inch rack-mountable
weight
approximately 3.9 kg
operating temperature
-5°c to +55°c
storage temperature
-40°c to +85°c
humidity
10%–90% non-condensing
compliance
ieee 802.3av, ce, fcc, rohs
Product Details
VSOL 8 Port 10G EPON Optical Line Terminal Price is Rs.991,200/-. The VSOL V3600D8 is a high-performance 8-port 10G EPON Optical Line Terminal designed for next-generation FTTH, FTTB, and enterprise fiber networks. It supports up to 512 ONUs with a 1:64 split ratio per port and ensures high-speed connectivity with 4 × 10GE SFP+ and 4 × GE Combo uplink ports. Built to deliver superior performance, scalability, and reliability, the V3600D8 supports advanced Layer 2 switching, QoS, VLAN, multicast, and flexible management via CLI, Web UI, SNMP, and EMS. Ideal for large-scale deployments, this 1U rackmount OLT is fully compliant with IEEE 802.3av 10G EPON standards.
