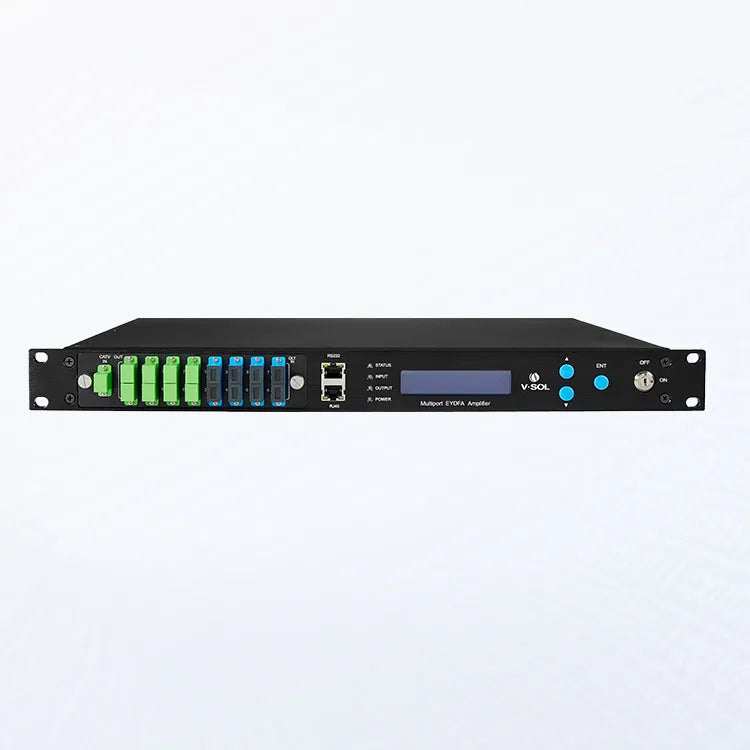

VSOL PON EYDFA Amplifier Price in Pakistan is Rs.336,000/-. The VSOL V8816W-8P is an 8-port 1550nm PON EYDFA (Erbium-Ytterbium Doped Fiber Amplifier) designed for boosting CATV signals in FTTH and HFC network environments. It integrates WDM technology to combine video and data (1490/1310nm) onto a single fiber, making it ideal for triple-play services. This compact 1U rack-mountable amplifier offers high optical power, low noise, and intelligent management via SNMP, web GUI, or RS232. The V8816W-8P is a powerful and scalable solution for medium-scale FTTH deployments and ISP infrastructure.
Integrated WDM for PON (1310/1490nm) + CATV (1550nm)
Excellent CNR, low CSO/CTB distortion
Dual power supply (AC220V / DC48V optional)
SNMP/Web GUI/RS232 for remote monitoring
Smart temperature-controlled fan system
Compact 1U 19” rack-mount chassis
Ideal for small-to-mid-size FTTH networks
Supports GPON, EPON, CATV, IPTV, and VOD
Product Specifications
Type
eydfa amplifier
technology
erbium-ytterbium doped fiber amplifier (eydfa)
wavelength
1550nm ± 5nm
output ports
8
output power per port
+20 dbm (typical)
input optical power
0 to +10 dbm
noise figure
= 5 db
wdm integration
1490/1310nm + 1550nm
connector type
sc/apc or fc/apc (customizable)
management interface
snmp, web gui, rs232
power supply
dual ac 220v / optional dc 48v
power consumption
= 65w
cooling
intelligent temperature-controlled fans
rack size
1u 19-inch standard
operating temperature
-5°c to +50°c
storage temperature
-40°c to +85°c
relative humidity
5% to 95% non-condensing
compliance
rohs, ce, itu-t g.662
applications
ftth, catv signal amplification, pon triple-play, digital video broadcasting, isp network distribution
Product Details
VSOL PON EYDFA Amplifier Price in Pakistan is Rs.336,000/-. The VSOL V8816W-8P is an 8-port 1550nm PON EYDFA (Erbium-Ytterbium Doped Fiber Amplifier) designed for boosting CATV signals in FTTH and HFC network environments. It integrates WDM technology to combine video and data (1490/1310nm) onto a single fiber, making it ideal for triple-play services. This compact 1U rack-mountable amplifier offers high optical power, low noise, and intelligent management via SNMP, web GUI, or RS232. The V8816W-8P is a powerful and scalable solution for medium-scale FTTH deployments and ISP infrastructure.
