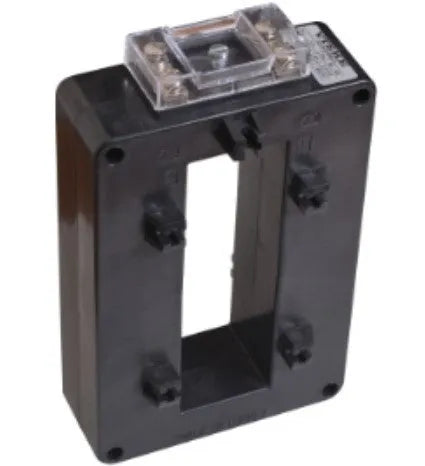

- Vteke DK12525005212 Current Transformer Vteke DK12525005212 Current Transformer


- CT Ratio: From 40A to 6300A
- Rated Power: Up to 60VA
- Case: Non-flammable self-extinguishing ABS/PC
- Mounting: Various mounting options
- Ambient temperature: -25ºC ~ +85ºC
Vteke DK12525005212 Current Transformer price in Pakistan is Rs 12,000/-.
FEATURES
• Standards: IEC 60044-1, IEC 61869-2, VDE 0414-1, DIN57414, BS3938, BS7626, EN 61869-2
• CT Ratio: From 40A to 6300A
• Rated Power: Up to 60VA
• Terminal: Integral terminal cover, high cross-section brass terminal for extra safety
• Case: Non-flammable self-extinguishing ABS/PC
• Mounting: Various mounting options
• Ambient temperature: -25 C ~ +85 C
Technical Data:
• Ratio: 2500/5A
• Class: 0.5
• Burden: 30 VA
• Hole Size(mm): 125 x 39
- Ratio: 2500/5A
- Class: 0.5
- Burden: 30 VA
- Hole Size(mm): 125 x 39
