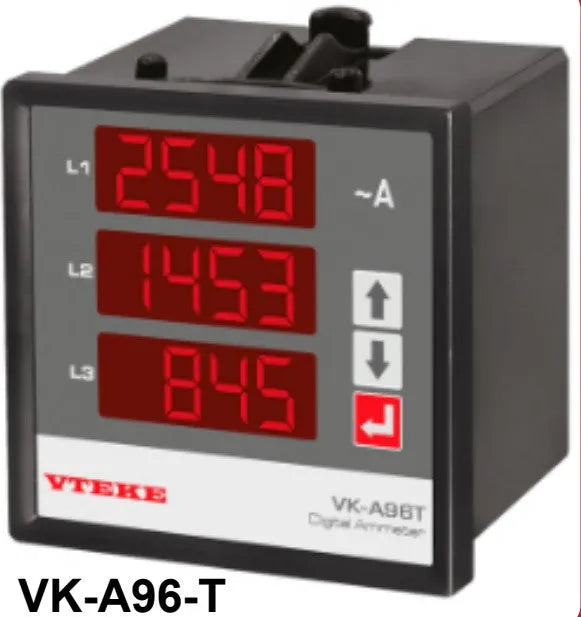

- Vteke VK-A96-T Digital Ammeter 3-ph, Vteke VK-A96-T Digital Ammeter 3-ph,


- Operating Altitude < 2000 m
- Weight: 0.3 kg max
- Insulation Class (Front Panel): IP41
- Panel Hole Size: 91 x 91(VK-A96-T)
- Accuracy: ±1% (at 10%-100% of the full scale)
- Ambient temperature (operation): -20 C ~ +55 C
Vteke VK-A96-T Digital Ammeter price in Pakistan is Rs 6,900/-.
FEATURES
• Accuracy: ±1% (at 10%-100% of the full scale)
• Ambient temperature (operation): -20 C ~ +55 C
• Operating Altitude < 2000 m
• Ambient Humidity (operation): 15% - 95%
• Weight: 0.3 kg max
• Insulation Class (Front Panel): IP41
• Depth: 44.7 mm (low depth)
• Panel Hole Size: 91 x 91(VK-A96-T)
Technical Data:
• Operating Voltage (Un): 150-260VAC
• Operating Frequency: 50 / 60 Hz
• Operating Power: <4 VA
• Input Measuring Range: 100mA – 5.5A
• Wire Thickness: 1.5 mm2
- Operating Power: <4 VA
- Wire Thickness: 1.5 mm2
- Operating Voltage (Un): 150-260VAC
- Operating Frequency: 50 / 60 Hz
- Input Measuring Range: 100mA – 5.5A
- Description
- Reviews
FEATURES
• Accuracy: ±1% (at 10%-100% of the full scale)
• Ambient temperature (operation): -20 C ~ +55 C
• Operating Altitude < 2000 m
• Ambient Humidity (operation): 15% - 95%
• Weight: 0.3 kg max
• Insulation Class (Front Panel): IP41
• Depth: 44.7 mm (low depth)
• Panel Hole Size: 91 x 91(VK-A96-T)
Technical Data:
• Operating Voltage (Un): 150-260VAC
• Operating Frequency: 50 / 60 Hz
• Operating Power: <4 VA
• Input Measuring Range: 100mA – 5.5A
• Wire Thickness: 1.5 mm2
