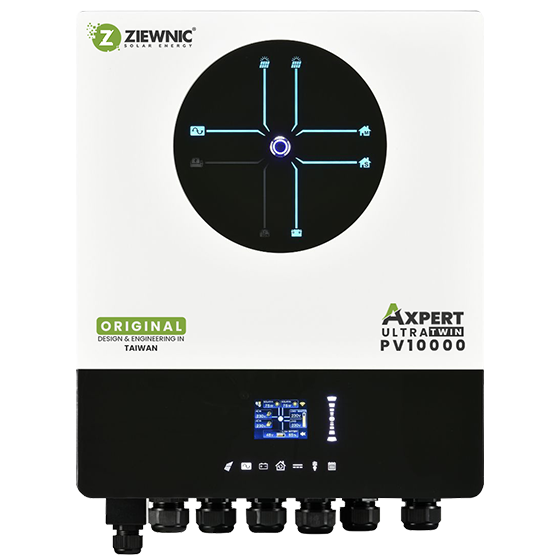

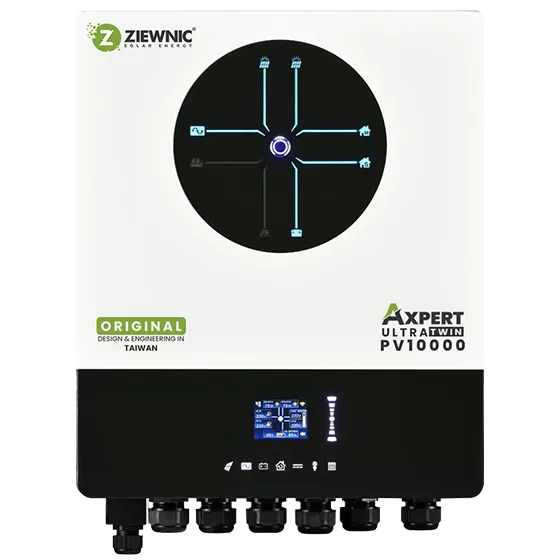

The Ziewnic Axpert UltraTwin PV10000 8kW Hybrid Solar Inverter is a premium next-generation energy solution designed for residential and commercial solar installations. Engineered in Taiwan, this advanced hybrid inverter features Dual MPPT technology, 150A charging capability, and support for parallel operation of up to 6 units. It is equipped with built-in WiFi monitoring, dual AC outputs for smart load management, lithium battery compatibility, and feed-in grid functionality. With pure sine wave output, intelligent battery management, and the ability to operate with or without batteries, the PV10000 delivers reliable, efficient, and uninterrupted power for modern energy systems.
Supports External Battery Temperature Sensor (BTS)
Optional GFCI, AFCI & Rapid Shutdown Support
Anti-Dust & Humidity Protection
Overload & Short Circuit Protection
Remote Monitoring & OTA Firmware Upgrade
5-Year Warranty
Product Specifications
Type
hybrid solar inverter
rated power
8000va / 8000w
parallel capability
up to 6 units
ac input voltage
230vac
selectable voltage range (pc mode)
170v – 280vac
selectable voltage range (home appliances)
90v – 280vac
frequency range
50hz / 60hz
ac output voltage regulation
230vac ±5%
surge power
16000va
peak efficiency
93%
transfer time
10ms (personal computer), 20ms (home appliances)
output waveform
pure sine wave
battery voltage
48vdc
floating charge voltage
54vdc
overcharge protection voltage
63vdc
solar charger type
mppt
maximum pv array power
10000w (5000w × 2)
mppt operating voltage range
90v – 450vdc
maximum pv open circuit voltage
500vdc
maximum pv input current
27a × 2 (max 40a)
maximum solar charge current
150a
maximum ac charge current
120a
maximum charge current
150a
dimensions (d × w × h)
145 × 438 × 553.6 mm
net weight
18.4 kg
communication interface
usb / rs232 / rs485 / wifi / dry contact / bts
external current sensor port
yes, built-in current transformer sensor
humidity
5% – 95% relative humidity (non-condensing)
operating temperature
-10°c to 50°c
storage temperature
-15°c to 60°c
safety compliance
ce
battery compatibility
lithium batteries supported
wifi monitoring
built-in
feed-in grid function
built-in
Product Details
The Ziewnic Axpert UltraTwin PV10000 8kW Hybrid Solar Inverter is a premium next-generation energy solution designed for residential and commercial solar installations. Engineered in Taiwan, this advanced hybrid inverter features Dual MPPT technology, 150A charging capability, and support for parallel operation of up to 6 units. It is equipped with built-in WiFi monitoring, dual AC outputs for smart load management, lithium battery compatibility, and feed-in grid functionality. With pure sine wave output, intelligent battery management, and the ability to operate with or without batteries, the PV10000 delivers reliable, efficient, and uninterrupted power for modern energy systems.
