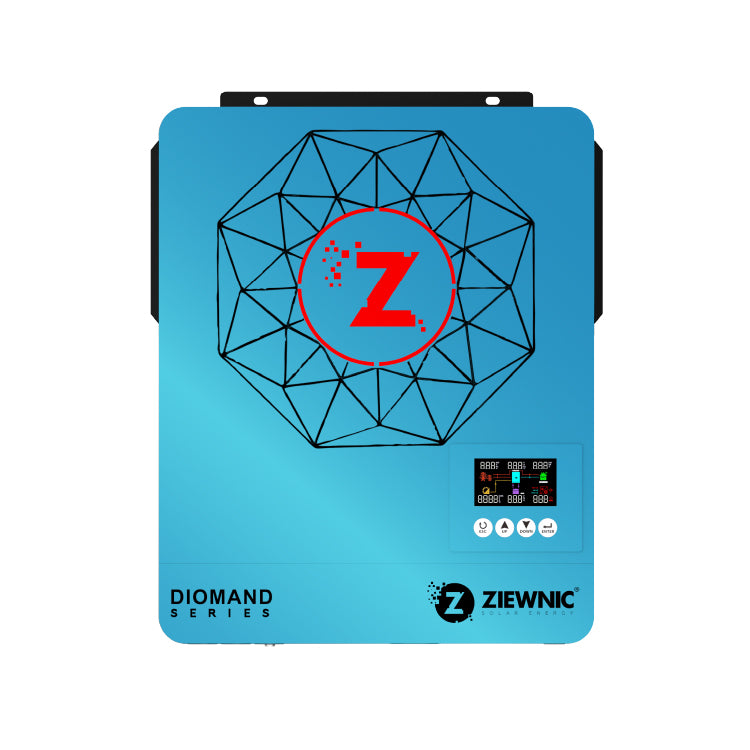

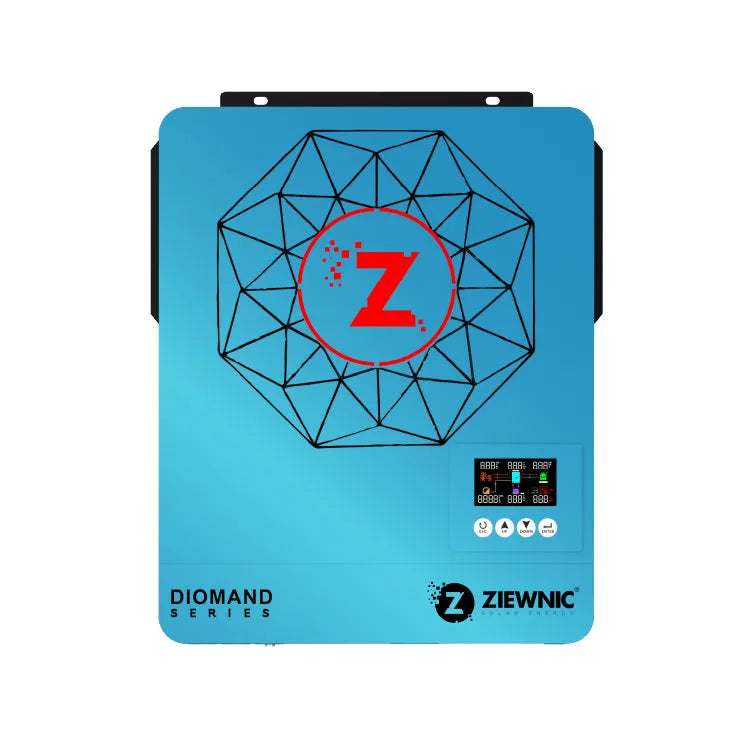

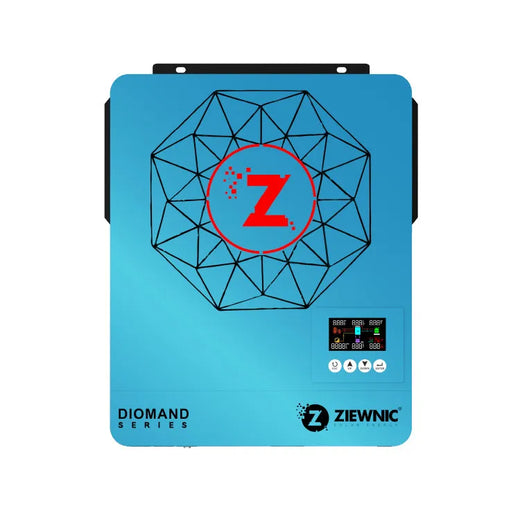

The Ziewnic Diamond Series PV13000 10.5kW Solar Hybrid Inverter is a powerful next-generation solar energy solution designed for residential, commercial, and industrial applications. Built with advanced hybrid inverter technology, it supports On-Grid, Off-Grid, and Hybrid operating modes, providing maximum flexibility and energy independence. Equipped with a 160A MPPT solar charge controller, pure sine wave output, lithium battery compatibility, and intelligent energy management, the PV13000 delivers exceptional performance and reliability. Its built-in zero export function, reverse grid feeding capability, RGB status indicators, and optional Wi-Fi monitoring make it an ideal choice for modern solar installations. The inverter is engineered to provide stable power, high efficiency, and seamless integration with utility power, generators, and battery storage systems.
Compatible with Lithium, Li-ion & LiFePO4 Batteries
Operates With or Without Batteries
Built-in Zero Export Function
Reverse Grid Feeding Capability
RGB LED Status Indication
Optional Wi-Fi Monitoring for Android & iOS
Touch Button Color LCD Display
Intelligent Battery Charging System
Anti-Dust Protection for Harsh Environments
Conformal Coating Against Dust & Humidity
Automatic Electronic Breaker Protection
Battery Equalization Function
Fault History Recording Feature
Compatible with Utility Power & Generators
High Surge Capacity
Designed & Engineered in Taiwan
5-Year Warranty
Product Specifications
Type
solar hybrid inverter
phase
single phase
rated output power
10500w
maximum pv input power
13000w
maximum solar charging current
160a
nominal dc voltage
48vdc
nominal pv voltage
360vdc
maximum dc voltage
500vdc
start-up voltage
90vdc
initial feeding voltage
120vdc
mppt voltage range
90v – 450vdc
number of mppt trackers
1
maximum pv input current
27a
nominal output voltage
220v / 230v / 240vac
output voltage range
195.5v – 253vac
nominal output current
46a
power factor
>0.99
feed-in grid frequency range
49hz – 51hz
maximum conversion efficiency (solar to ac)
98%
full load output power
10500w
maximum main load
10500w
maximum secondary load (battery mode)
3500w
main load cut-off voltage
44vdc
main load return voltage
54vdc
ac start-up voltage
120v – 140vac / 180vac
acceptable input voltage range
90v – 280vac or 170v – 280vac
maximum ac input current
60a
nominal operating frequency
50hz / 60hz
surge power
21000w
output waveform
pure sine wave
dc to ac efficiency
94%
battery voltage
48vdc
maximum charging current (solar)
160a
maximum ac charging current
100a
maximum combined charging current (ac + solar)
260a
dimensions (d × w × h)
420 × 310 × 110 mm
net weight
12 kg
communication ports
rs232 / wi-fi / gprs
operating temperature
-10°c to 50°c
battery compatibility
lithium, li-ion, lifepo4
display type
color lcd touch screen
wi-fi monitoring
optional
protection features
overload protection, short circuit protection, anti-dust protection, electronic breaker protection
zero export function
built-in
Product Details
The Ziewnic Diamond Series PV13000 10.5kW Solar Hybrid Inverter is a powerful next-generation solar energy solution designed for residential, commercial, and industrial applications. Built with advanced hybrid inverter technology, it supports On-Grid, Off-Grid, and Hybrid operating modes, providing maximum flexibility and energy independence. Equipped with a 160A MPPT solar charge controller, pure sine wave output, lithium battery compatibility, and intelligent energy management, the PV13000 delivers exceptional performance and reliability. Its built-in zero export function, reverse grid feeding capability, RGB status indicators, and optional Wi-Fi monitoring make it an ideal choice for modern solar installations. The inverter is engineered to provide stable power, high efficiency, and seamless integration with utility power, generators, and battery storage systems.
