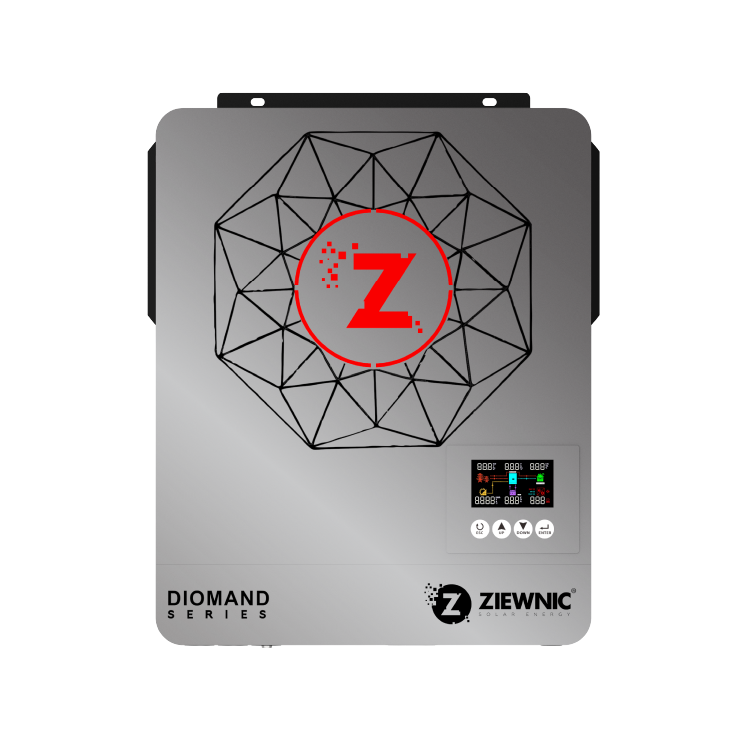

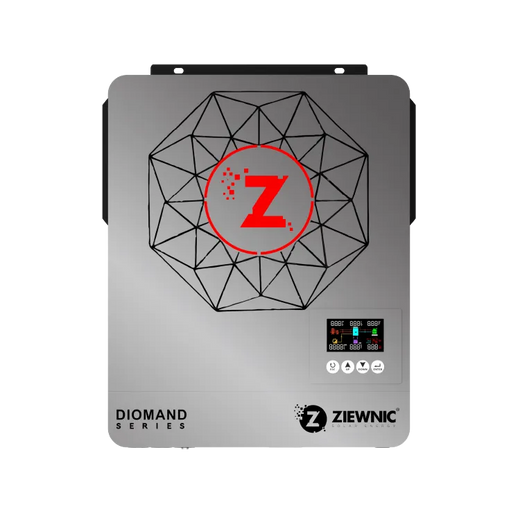

Ziewnic Diamond Series PV6500 4.5kW Solar Hybrid Inverter Price In Pakistan
  • Ziewnic Diamond Series PV6500 4.5kW Solar Hybrid Inverter Price In Pakistan
Ziewnic Diamond Series PV6500 4.5kW Solar Hybrid Inverter
Availability: In Stock

Ziewnic Diamond Series PV6500 4.5kW Solar Hybrid Inverter

Product SKU: PV6500-4-5kW
Rs.115,000

Safe Delivery

Quick & safe nation wide delivery

1 Year Warranty

Reliable 1-year protection

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Offer & Coupon

Get Flat Rs 300 Off on HIMEL Min Cart Value Rs 4500

Specifications

Type Hybrid Inverter
Phase Single Phase
Maximum PV Input Power 6500W
Rated Output Power 4500W
Maximum Solar Charging Current 160A
Nominal DC Voltage 360VDC
Maximum DC Voltage 500VDC
Start-Up Voltage 90VDC
Initial Feeding Voltage 120VDC
MPPT Voltage Range 90V – 450VDC
Number of MPPT Trackers 1
Maximum PV Input Current 27A
Nominal Output Voltage 220V / 230V / 240VAC
Output Voltage Range 195.5V – 253VAC
Nominal Output Current 20A
Power Factor >0.99
Feed-In Grid Frequency Range 49Hz – 51Hz
Maximum Conversion Efficiency (Solar to AC) 98%
Full Load Output Power 4500W
Maximum Main Load 4500W
Maximum Secondary Load (Battery Mode) 1500W
Main Load Cut-Off Voltage 22VDC
Main Load Return Voltage 27VDC
AC Start-Up Voltage 120V – 140VAC / 180VAC
Acceptable Input Voltage Range 90V – 280VAC or 170V – 280VAC
Maximum AC Input Current 30A
Nominal Operating Frequency 50Hz / 60Hz
Surge Power 9000W
Output Waveform Pure Sine Wave
DC to AC Efficiency 94%
Battery Voltage 24VDC
Maximum Charging Current (Solar) 160A
Maximum AC Charging Current 100A
Dimensions (D × W × H) 420 × 310 × 110 mm
Net Weight 10 kg
Communication Ports RS232 / Wi-Fi / GPRS
Operating Temperature -10°C to 50°C
Battery Compatibility Lithium, Li-ion, LiFePO4
Grid Feeding Feature Supported
Zero Export Function Built-In

Key Features

High power motor
Higher work efficiency
Product Details Reviews Shipping & Returns

Ziewnic Diamond Series PV6500 4.5kW Solar Hybrid Inverter

The Ziewnic Diamond Series PV6500 4.5kW Solar Hybrid Inverter is a high-performance 5th Generation Hybrid Solar Inverter designed for residential and commercial solar power systems. Equipped with a powerful 160A True MPPT Solar Charge Controller, pure sine wave output, and support for On-Grid, Off-Grid, and Hybrid modes, it delivers reliable energy management and maximum solar efficiency. The inverter supports operation with or without batteries and is compatible with all major lithium battery technologies, including Li-ion and LiFePO4. With built-in zero export functionality, reverse grid feeding, Wi-Fi monitoring support, RGB status indication, and intelligent battery management, the PV6500 provides a complete energy storage and backup solution.

Ziewnic Diamond Series PV6500 4.5kW Solar Hybrid Inverter Price In Pakistan
Ziewnic Diamond Series PV6500 4.5kW Solar Hybrid Inverter
Looking to purchase Ziewnic Diamond Series PV6500 4.5kW Solar Hybrid Inverter in bulk?
  • Purchase Item in Bulk Quantity
  • Get At Best Price For Your Business
No reviews yet. Be the first to review this product.

Shipping

We ship across Pakistan. Standard delivery takes 3–7 business days.

Returns

Easy 7-day return policy. Product must be unused and in original packaging.
