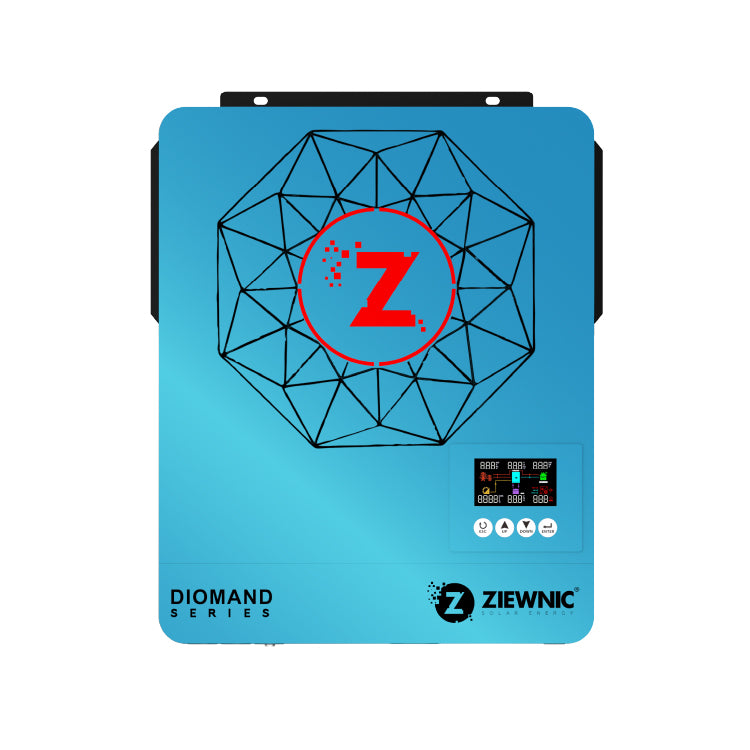

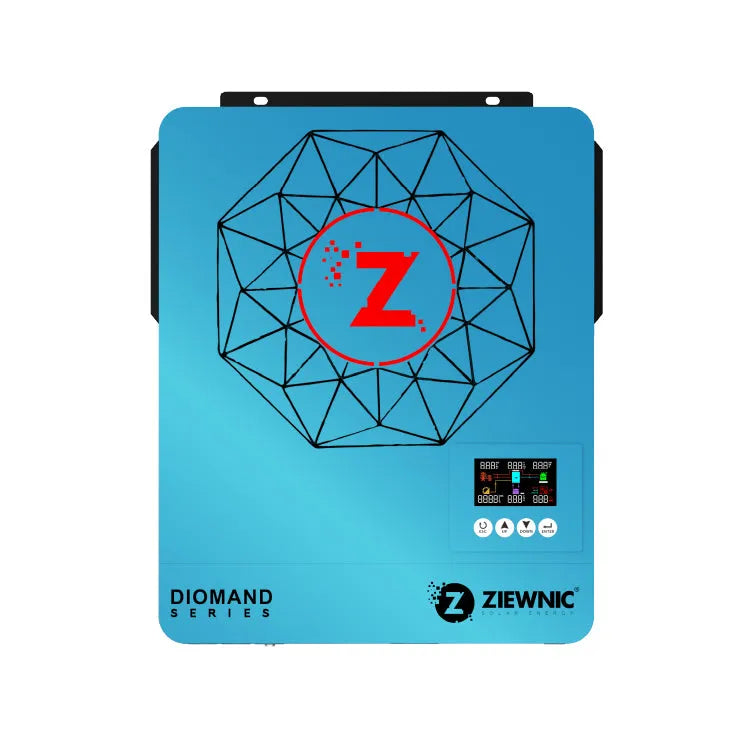

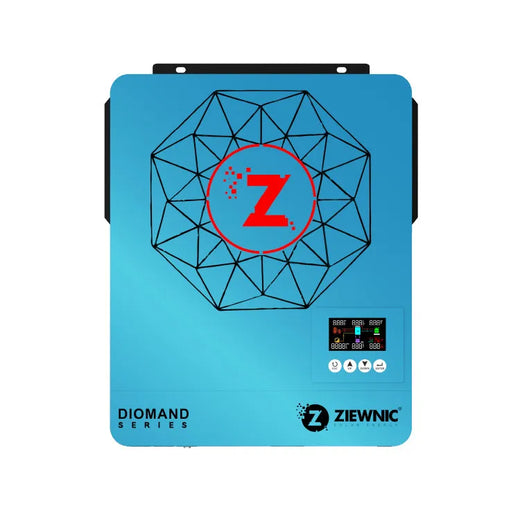

Ziewnic Diamond Series PV8500 6.5kW Solar Hybrid Inverter
Availability: In Stock

Ziewnic Diamond Series PV8500 6.5kW Solar Hybrid Inverter

Product SKU: PV8500-6-5kW
Rs.140,000

Safe Delivery

Quick & safe nation wide delivery

1 Year Warranty

Reliable 1-year protection

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Offer & Coupon

Get Flat Rs 300 Off on HIMEL Min Cart Value Rs 4500

Specifications

Type Solar Hybrid Inverter
Phase Single Phase
Maximum PV Input Power 8500W
Rated Output Power 6500W
Maximum Solar Charging Current 160A
Nominal DC Voltage 360VDC
Maximum DC Voltage 500VDC
Start-Up Voltage 90VDC
Initial Feeding Voltage 120VDC
MPPT Voltage Range 90V – 450VDC
Number of MPPT Trackers 1
Maximum PV Input Current 27A
Nominal Output Voltage 220V / 230V / 240VAC
Output Voltage Range 195.5V – 253VAC
Nominal Output Current 29A
Power Factor >0.99
Feed-In Grid Frequency Range 49Hz – 51Hz
Maximum Conversion Efficiency (Solar to AC) 98%
Full Load Output Power 6500W
Maximum Main Load 6500W
Maximum Secondary Load (Battery Mode) 2160W
Main Load Cut-Off Voltage 44VDC
Main Load Return Voltage 54VDC
AC Start-Up Voltage 120V – 140VAC / 180VAC
Acceptable Input Voltage Range 90V – 280VAC or 170V – 280VAC
Maximum AC Input Current 40A
Nominal Operating Frequency 50Hz / 60Hz
Surge Power 13000W
Output Waveform Pure Sine Wave
DC to AC Efficiency 94%
Battery Voltage 48VDC
Maximum Charging Current (Solar) 160A
Maximum AC Charging Current 100A
Dimensions (D × W × H) 420 × 310 × 110 mm
Net Weight 11 kg
Communication Ports RS232 / Wi-Fi / GPRS
Operating Temperature -10°C to 50°C
Battery Compatibility Lithium, Li-ion, LiFePO4
Grid Feeding Feature Supported
Zero Export Function Built-In
Display Type Color LCD Touch Screen

Key Features

High power motor
Higher work efficiency
Product Details Reviews Shipping & Returns

Ziewnic Diamond Series PV8500 6.5kW Solar Hybrid Inverter

The Ziewnic Diamond Series PV8500 6.5kW Solar Hybrid Inverter is a premium 5th Generation Hybrid Solar Inverter engineered for high-performance residential and commercial solar installations. Equipped with a powerful 160A True MPPT Solar Charge Controller, support for On-Grid, Off-Grid, and Hybrid modes, and compatibility with all major lithium battery technologies, it delivers maximum solar energy utilization and reliable backup power. The inverter features pure sine wave output, built-in zero export functionality, reverse grid feeding, RGB status indicators, and intelligent battery management. With a high PV input capacity of 8500W, touch-button LCD display, and optional Wi-Fi monitoring, the PV8500 is designed to provide efficient and uninterrupted energy management.
