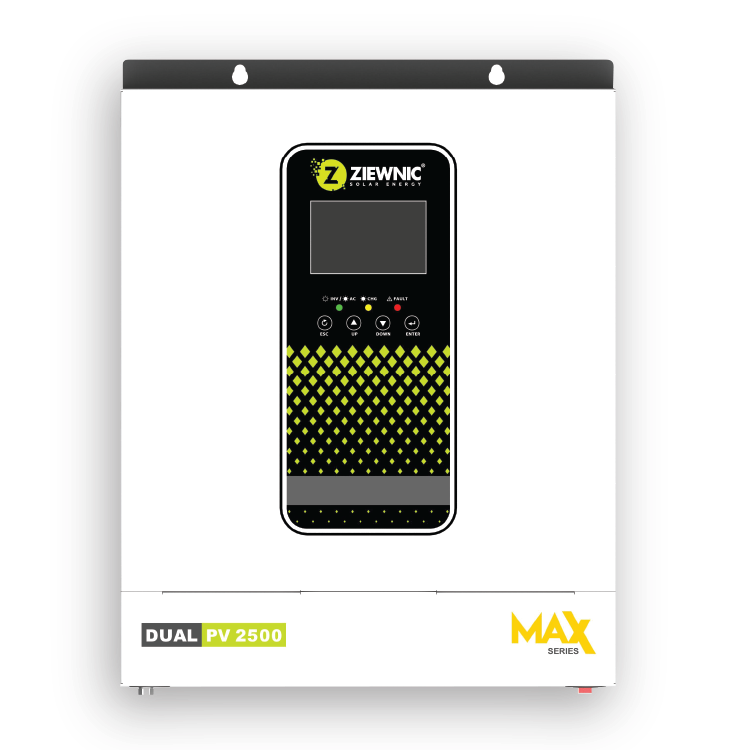

The Ziewnic Dual Max PV2500 1.6kW Solar Hybrid Inverter is a compact and efficient solar energy solution designed for homes, small offices, and backup power applications. Featuring a 100A True MPPT solar charge controller, pure sine wave output, and support for both battery and battery-less operation, it ensures maximum solar energy utilization and reliable performance. The inverter is compatible with lithium batteries and offers smart dual outputs for managing normal and heavy loads. With optional Wi-Fi monitoring, RS485/CAN communication, anti-dust protection, and intelligent battery charging, the PV2500 delivers dependable power in a modern and user-friendly design.
Overload, Short Circuit & Deep Discharge Protection
Adaptable to Utility & Generator Power
Conformal Coating Against Dust & Humidity
Built-in Anti-Dust Protection
High PV Input Voltage Range
Battery Charging Current Up to 160A (AC + Solar)
Real 5th Generation Inverter Technology
1-Year Warranty
Product Specifications
Type
solar hybrid inverter
rated power
1600w
ac input voltage
230vac
selectable voltage range (pc mode)
170v – 280vac
selectable voltage range (home appliances)
90v – 280vac
frequency range
50hz / 60hz (auto sensing)
ac output voltage regulation
230vac ±5%
surge power
3000va
efficiency (pv to inverter)
97%
efficiency (battery to inverter)
94%
transfer time
10ms (personal computers), 20ms (home appliances)
battery voltage
12vdc
floating charge voltage
13.7vdc
overcharge protection voltage
14vdc
maximum ac charging current
60a
solar charger type
true mppt
maximum pv array power
2500w
mppt operating voltage range
30v – 320vdc
maximum pv open circuit voltage
400vdc
maximum charge current
100a
maximum pv input current
18a
maximum mppt efficiency
98%
communication interface
rs485 / can
humidity
5% – 95% relative humidity (non-condensing)
operating temperature
0°c to 50°c
storage temperature
-15°c to 60°c
battery compatibility
lithium batteries supported
smart dual output
yes
wi-fi monitoring
optional
display type
color lcd with touch buttons
Product Details
The Ziewnic Dual Max PV2500 1.6kW Solar Hybrid Inverter is a compact and efficient solar energy solution designed for homes, small offices, and backup power applications. Featuring a 100A True MPPT solar charge controller, pure sine wave output, and support for both battery and battery-less operation, it ensures maximum solar energy utilization and reliable performance. The inverter is compatible with lithium batteries and offers smart dual outputs for managing normal and heavy loads. With optional Wi-Fi monitoring, RS485/CAN communication, anti-dust protection, and intelligent battery charging, the PV2500 delivers dependable power in a modern and user-friendly design.
