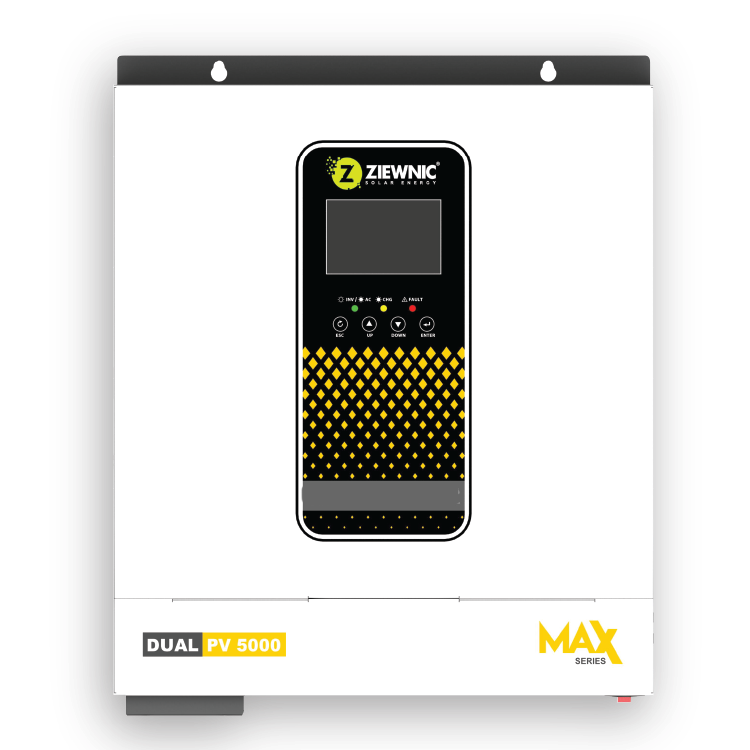

The Ziewnic Dual Max PV5000 3.5kW Solar Hybrid Inverter is a powerful and efficient solar energy solution designed for residential and small commercial applications. Featuring a 100A True MPPT solar charge controller, pure sine wave output, and support for both battery and battery-less operation, it maximizes solar energy utilization while ensuring reliable power delivery. The inverter supports lithium batteries, smart dual outputs for normal and heavy loads, and optional Wi-Fi monitoring for remote management. With advanced protection features, anti-dust design, and compatibility with utility and generator power, the PV5000 provides dependable performance for modern solar systems.
Overload, Short Circuit & Deep Discharge Protection
Adaptable to Utility & Generator Power
Conformal Coating Against Dust & Humidity
Built-in Anti-Dust Protection
Battery Charging Current Up to 160A (AC + Solar)
High PV Input Voltage Range
Real 5th Generation Inverter Technology
1-Year Warranty
Product Specifications
Type
solar hybrid inverter
rated power
3500w
ac input voltage
230vac
selectable voltage range (pc mode)
170v – 280vac
selectable voltage range (home appliances)
90v – 280vac
frequency range
50hz / 60hz (auto sensing)
ac output voltage regulation
230vac ±5%
surge power
6000va
efficiency (pv to inverter)
97%
efficiency (battery to inverter)
94%
transfer time
10ms (personal computers), 20ms (home appliances)
battery voltage
24vdc
floating charge voltage
27vdc
overcharge protection voltage
30vdc
maximum ac charging current
60a
solar charger type
true mppt
maximum pv array power
5000w
mppt operating voltage range
30v – 320vdc
maximum pv open circuit voltage
400vdc
maximum charge current
100a
maximum pv input current
18a
maximum mppt efficiency
98%
communication interface
rs485 / can
humidity
5% – 95% relative humidity (non-condensing)
operating temperature
0°c to 50°c
storage temperature
-15°c to 60°c
battery compatibility
lithium batteries supported
smart dual output
yes
wi-fi monitoring
optional
display type
color lcd with touch buttons
protection features
overload protection, short circuit protection, deep discharge protection, anti-dust protection
generator compatibility
supported
Product Details
The Ziewnic Dual Max PV5000 3.5kW Solar Hybrid Inverter is a powerful and efficient solar energy solution designed for residential and small commercial applications. Featuring a 100A True MPPT solar charge controller, pure sine wave output, and support for both battery and battery-less operation, it maximizes solar energy utilization while ensuring reliable power delivery. The inverter supports lithium batteries, smart dual outputs for normal and heavy loads, and optional Wi-Fi monitoring for remote management. With advanced protection features, anti-dust design, and compatibility with utility and generator power, the PV5000 provides dependable performance for modern solar systems.
