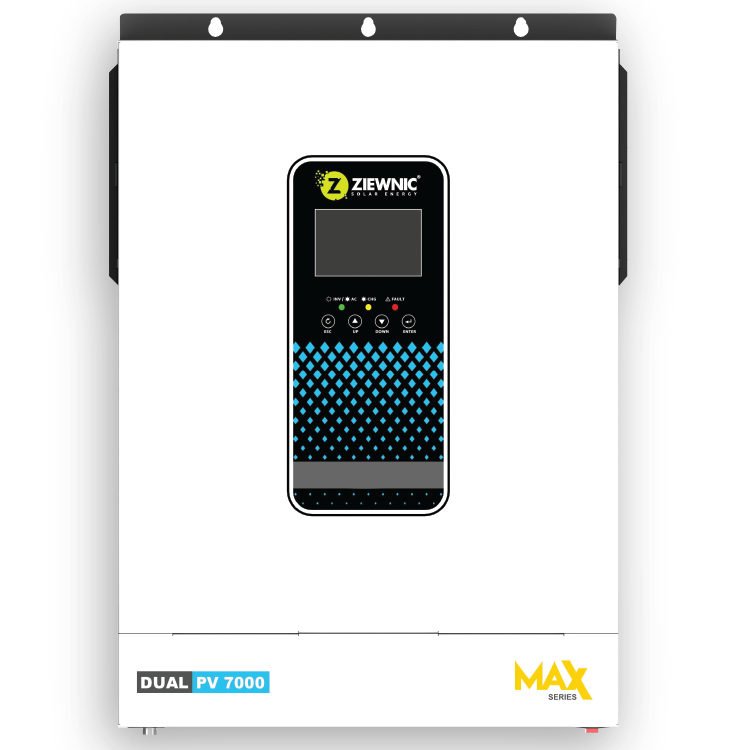

The Ziewnic Dual Max PV7000 5.5kW Solar Hybrid Inverter is a high-performance solar energy solution designed for residential and commercial applications. Featuring a powerful 100A True MPPT solar charge controller, pure sine wave output, and intelligent energy management, it maximizes solar power generation while ensuring stable and reliable operation. The inverter supports lithium batteries, works with or without batteries, and offers smart dual outputs for managing normal and heavy loads separately. With optional Wi-Fi monitoring, RS485/CAN communication, anti-dust protection, and compatibility with utility or generator power, the PV7000 delivers efficient and uninterrupted power for modern solar installations.
Overload, Short Circuit & Deep Discharge Protection
Adaptable to Utility & Generator Power
Conformal Coating Against Dust & Humidity
Built-in Anti-Dust Protection
Battery Charging Current Up to 160A (AC + Solar)
High PV Input Voltage Range
Real 5th Generation Inverter Technology
1-Year Warranty
Product Specifications
Type
solar hybrid inverter
rated power
5500w
ac input voltage
230vac
selectable voltage range (pc mode)
170v – 280vac
selectable voltage range (home appliances)
90v – 280vac
frequency range
50hz / 60hz (auto sensing)
ac output voltage regulation
230vac ±5%
surge power
10000va
efficiency (pv to inverter)
97%
efficiency (battery to inverter)
94%
transfer time
10ms (personal computers), 20ms (home appliances)
battery voltage
48vdc
floating charge voltage
54.8vdc
overcharge protection voltage
60vdc
maximum ac charging current
60a
solar charger type
true mppt
maximum pv array power
7000w
mppt operating voltage range
60v – 360vdc
maximum pv open circuit voltage
450vdc
maximum charge current
100a
maximum pv input current
28a
maximum mppt efficiency
98%
communication interface
rs485 / can
humidity
5% – 95% relative humidity (non-condensing)
operating temperature
0°c to 50°c
storage temperature
-15°c to 60°c
battery compatibility
lithium batteries supported
smart dual output
yes
wi-fi monitoring
optional
display type
color lcd with touch buttons
Product Details
The Ziewnic Dual Max PV7000 5.5kW Solar Hybrid Inverter is a high-performance solar energy solution designed for residential and commercial applications. Featuring a powerful 100A True MPPT solar charge controller, pure sine wave output, and intelligent energy management, it maximizes solar power generation while ensuring stable and reliable operation. The inverter supports lithium batteries, works with or without batteries, and offers smart dual outputs for managing normal and heavy loads separately. With optional Wi-Fi monitoring, RS485/CAN communication, anti-dust protection, and compatibility with utility or generator power, the PV7000 delivers efficient and uninterrupted power for modern solar installations.
