Ziewnic LenoX 8kW PV10500 Single Phase Hybrid Solar Inverter Price In Pakistan
  • Ziewnic LenoX 8kW PV10500 Single Phase Hybrid Solar Inverter Price In Pakistan
Ziewnic LenoX 8kW PV10500 Single Phase Hybrid Solar Inverter
Availability: In Stock

Ziewnic LenoX 8kW PV10500 Single Phase Hybrid Solar Inverter

Product SKU: PV10500-8KW
Rs.340,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Type Hybrid Solar Inverter
Phase Single Phase
Rated Power 8000W
Maximum PV Input Power 10500W
Maximum DC Voltage 500V
MPPT Voltage Range 125V – 430V
Maximum Input Current 26A + 26A
Maximum Input Strings 2 + 2
Grid Voltage 220V / 230V (Single Phase)
Grid Frequency 50Hz / 60Hz
Power Factor 0.8 Lagging to 0.8 Leading
THDi <3%
AC Output Topology L + N + PE
Battery Voltage Range 40V – 63V
Maximum Charging Voltage 63V
Maximum Charge/Discharge Current 190A / 190A
Battery Type Lithium / Lead-Acid / Tubular
UPS Rated Power 8kW
Peak Power (Off Grid) 2 Times Rated Power for 10 Seconds
Rated Output Current 36.3A
Rated Output Frequency 50Hz / 60Hz
Transfer Time <10ms
THDu <10%
Overload Capacity 5s >110% Load, 10s =101%–110% Load
Anti-Island Protection Yes
Insulation Monitoring Yes
Residual Current Monitoring Yes
Arc Fault Protection Optional
Parallel Function Yes, Up to 6 Units
Other Protection AC Over-Current, AC Over-Voltage, Over Temperature Protection
Peak Efficiency 99%
Protection Class Class 1
Operating Temperature -40°C to 60°C (>45°C Derating)
Cooling Method Smart Cooling
Relative Humidity 5% – 95% (Non-Condensing)
Altitude Above 2000m Derating
Dimensions (W × D × H) 413 × 630 × 257.5 mm
EMC/Safety Regulation IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 61000-6-2, IEC/EN 61000-6-4
Isolation Transformer No
Self-Consumption <5W
Display Touch Screen
Communication Interface RS232, CAN, RS485
Optional Communication WiFi, CT
Safety Standard EN/IEC 62109-1, EN/IEC 62109-2
Solar Charge Current 190A

Key Features

High power motor
Higher work efficiency
Product Details Reviews Shipping & Returns

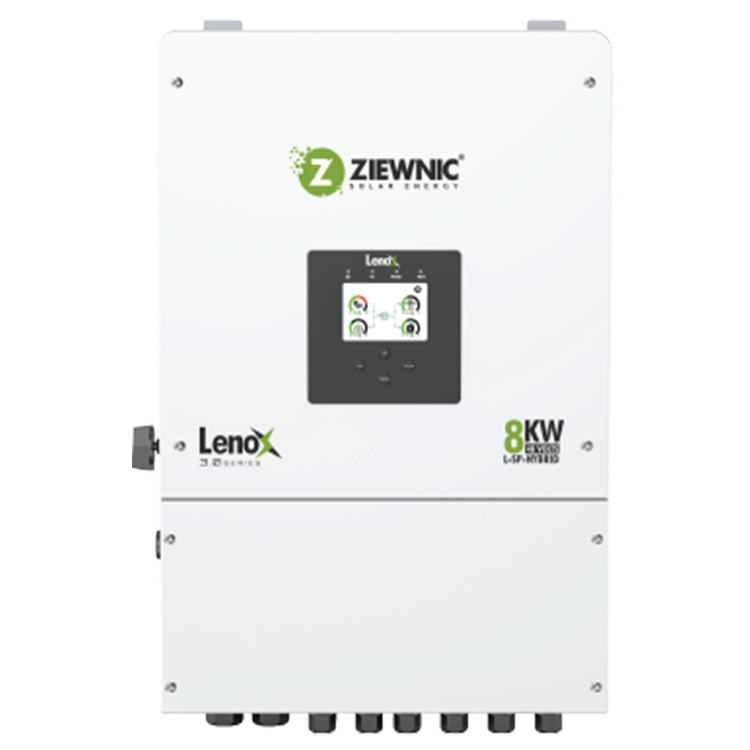

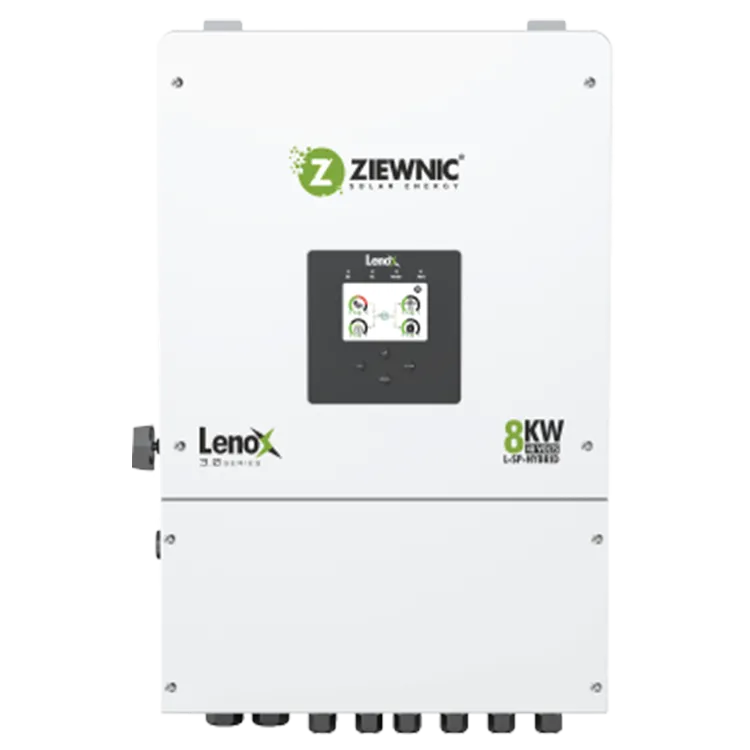

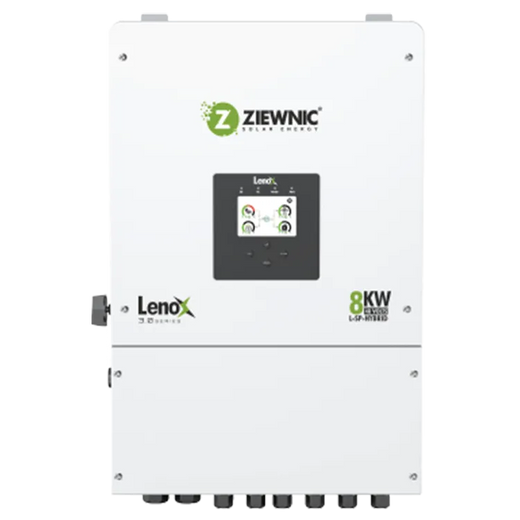

Ziewnic LenoX 8kW PV10500 Single Phase Hybrid Solar Inverter

The Ziewnic LenoX 8kW PV10500 Hybrid Solar Inverter is a powerful energy storage solution designed for residential and commercial solar applications. Built with advanced hybrid inverter technology, it supports both on-grid and off-grid operation, ensuring uninterrupted power supply and maximum solar energy utilization. Featuring dual MPPT trackers, 190A charge/discharge capability, built-in zero export functionality, and compatibility with LiFePO4, lead-acid, and tubular batteries, the inverter delivers exceptional efficiency and flexibility. With smart load management, generator support, Wi-Fi monitoring, and parallel operation of up to 6 units, the LenoX PV10500 is ideal for modern energy storage systems.
