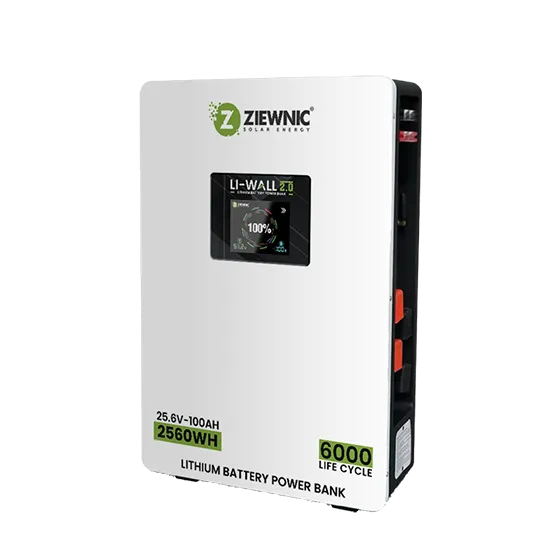

The Li-Wall V2 25.6V 100Ah Lithium Battery Power Bank is a high-performance wall-mounted energy storage solution designed for residential, commercial, solar, UPS, and backup power applications. Built with advanced LiFePO4 (Lithium Iron Phosphate) technology, it offers exceptional safety, long service life, and reliable energy storage. With a storage capacity of 2560Wh, intelligent Battery Management System (BMS), and over 6000 life cycles, this battery provides dependable power for off-grid and hybrid solar systems. Its compact wall-mounted design, LCD display, and comprehensive protection features make it an ideal energy storage solution for modern power requirements.
Supports solar, inverter, UPS, and backup power systems
Comprehensive protection against overcharge, over-discharge, short circuit, overcurrent, and overheating
Compatible with major inverter brands
Maintenance-free operation
6-Year Manufacturer Warranty
Product Specifications
Type
lithium battery
nominal voltage
25.6v
capacity
100ah
energy capacity
2560wh
voltage window
22.4v β 28.8v
solar charge voltage
27.6v
maximum continuous discharge current
100a
maximum pulse discharge current
100a (30 seconds)
maximum continuous charge current
100a
cycle life
more than 6000 cycles @ 80% dod
cell equalizer current
1β5a max
terminal type
m8
storage temperature
0Β°c to 30Β°c
storage duration
3 months at 25Β°c
safety standards
un38.3, iec62619, msds, ce
ip rating
ip21
noise level
less than 40db (1 meter)
working temperature
-20Β°c to +55Β°c
humidity
0%β95% (non-condensing)
maximum installation altitude
1500m
dimensions (l Γ w Γ h)
370 Γ 380 Γ 170 mm
net weight
27.0 kg
gross weight
28.0 kg
mounting type
wall mounted
Product Details
The Li-Wall V2 25.6V 100Ah Lithium Battery Power Bank is a high-performance wall-mounted energy storage solution designed for residential, commercial, solar, UPS, and backup power applications. Built with advanced LiFePO4 (Lithium Iron Phosphate) technology, it offers exceptional safety, long service life, and reliable energy storage. With a storage capacity of 2560Wh, intelligent Battery Management System (BMS), and over 6000 life cycles, this battery provides dependable power for off-grid and hybrid solar systems. Its compact wall-mounted design, LCD display, and comprehensive protection features make it an ideal energy storage solution for modern power requirements.
