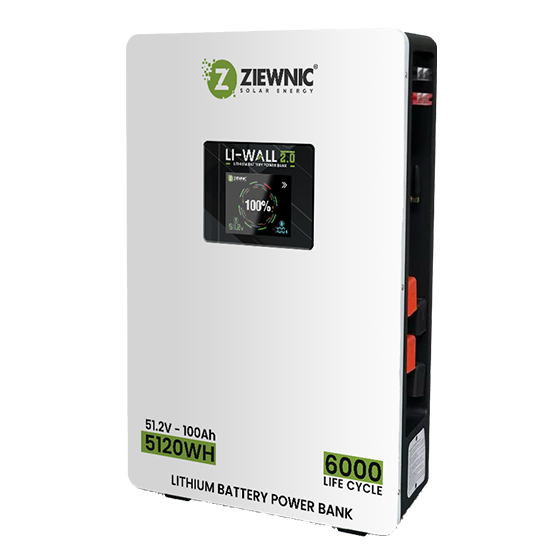

The Ziewnic Li-Wall V2 51.2V 100Ah Lithium Battery Power Bank is a premium wall-mounted energy storage solution designed for residential, commercial, hybrid solar, off-grid solar, UPS, and backup power applications. Built with advanced LiFePO4 (Lithium Iron Phosphate) technology, it delivers superior safety, exceptional cycle life, and reliable long-term performance. With a large 5120Wh energy capacity, intelligent Battery Management System (BMS), and over 6000 life cycles, the Li-Wall V2 ensures efficient and uninterrupted power storage for modern energy systems. Its compact wall-mounted design, LCD monitoring display, and comprehensive protection features make it an ideal choice for solar energy storage and power backup applications.
Cell balancing function for optimized battery performance
Low standby self-consumption
High discharge and charge current capability
Supports solar, inverter, UPS, and backup systems
Comprehensive battery protection system
Compatible with most leading inverter brands
Maintenance-free operation
Backed by a 6-Year Warranty
Product Specifications
Type
lithium battery
nominal voltage
51.2v
capacity
100ah
energy capacity
5120wh
voltage window
44.8v โ 58.4v
solar charge voltage
56.2v
maximum continuous discharge current
100a
maximum pulse discharge current
100a (30 seconds)
maximum continuous charge current
100a
cycle life
more than 6000 cycles @ 80% dod
cell equalizer current
1โ5a max
terminal type
m8
design
wall-mounted powerwall
storage temperature
0ยฐc to 30ยฐc
storage duration
3 months at 25ยฐc
safety standards
un38.3, iec62619, msds, ce
ip rating
ip21
protection
over charge protection, over discharge protection, over current protection, short circuit protection, over temperature protection
noise level
less than 40db (at 1 meter)
working temperature
-20ยฐc to +55ยฐc
humidity
0%โ95% (non-condensing)
maximum installation altitude
1500m
dimensions (l ร w ร h)
625 ร 390 ร 210 mm
net weight
43.0 kg
gross weight
44.0 kg
Product Details
The Ziewnic Li-Wall V2 51.2V 100Ah Lithium Battery Power Bank is a premium wall-mounted energy storage solution designed for residential, commercial, hybrid solar, off-grid solar, UPS, and backup power applications. Built with advanced LiFePO4 (Lithium Iron Phosphate) technology, it delivers superior safety, exceptional cycle life, and reliable long-term performance. With a large 5120Wh energy capacity, intelligent Battery Management System (BMS), and over 6000 life cycles, the Li-Wall V2 ensures efficient and uninterrupted power storage for modern energy systems. Its compact wall-mounted design, LCD monitoring display, and comprehensive protection features make it an ideal choice for solar energy storage and power backup applications.
