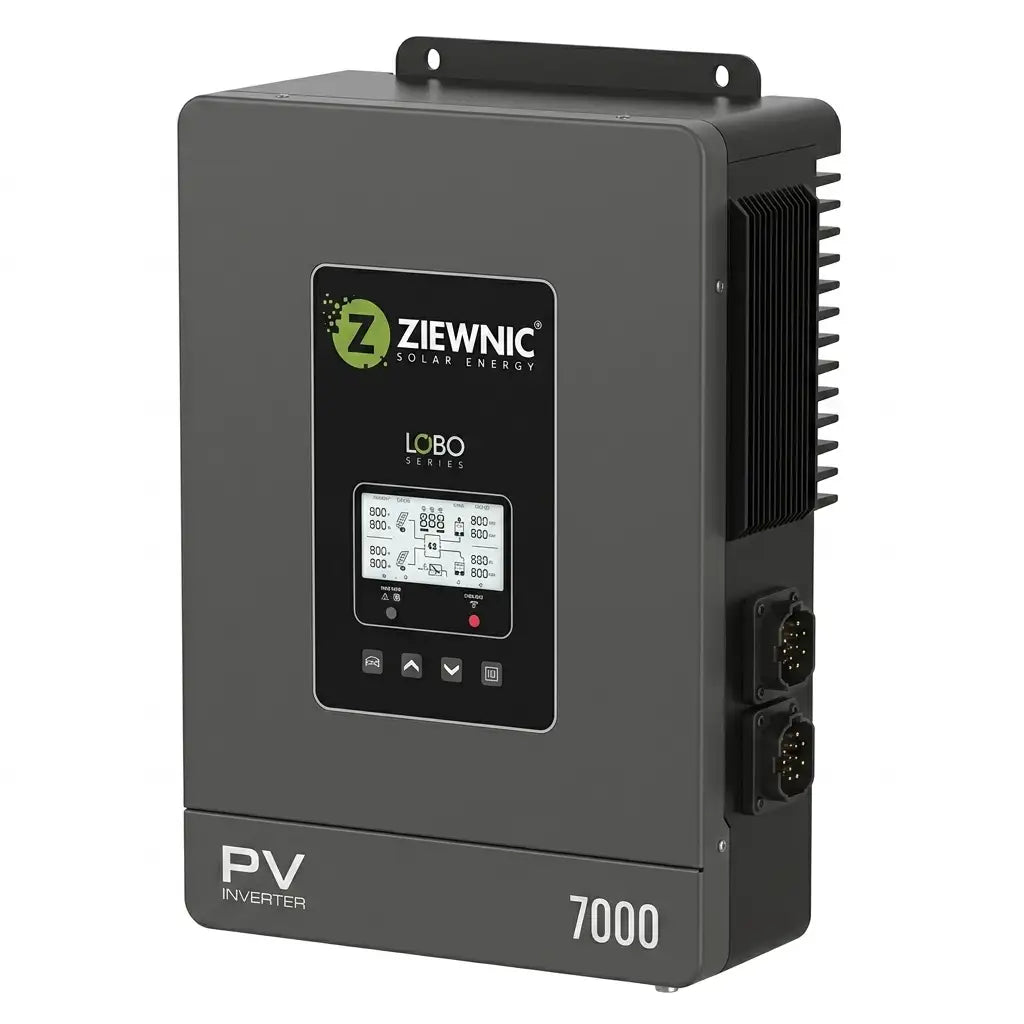

The Ziewnic LOBO PV7000 5kW Solar Inverter is a high-performance single-phase solar inverter designed for residential and commercial solar power systems. Built with advanced MPPT technology, it supports the latest TOPCon, HJT, and HiMO 10 solar panels, including high-power modules up to 1000W. The inverter operates in both On-Grid and Off-Grid modes, features a battery-independent design, and offers intelligent energy management with grid feeding capability. With dual MPPT tracking, high conversion efficiency, built-in dust protection, and optional Wi-Fi monitoring, the LOBO PV7000 delivers reliable and efficient solar power generation for modern energy systems.
Compatible with TOPCon, HJT & HiMO 10 Solar Panels
Power Factor 1.0
RS-232 Communication Port
Made in Taiwan
1-Year Warranty
Product Specifications
Type
hybrid solar inverter
phase
single phase
rated output power
7kva (5kw class)
number of mppt trackers
2
maximum pv input current
18a + 18a
pv array maximum open circuit voltage
500vdc
pv input voltage range
60v – 500vdc
start-up voltage
120vdc
nominal dc voltage
360vdc
mppt tracker efficiency
>99.5%
ac output voltage
230vac
input voltage range
90v – 280vac
input frequency range
40hz – 65hz
maximum input current
30a
input power factor
>0.99
input thdi
<5%
protection features
overload protection, short circuit protection, over temperature protection, over current protection, anti-islanding protection
dimensions (h × w × d)
315.5 × 225 × 103 mm
net weight
3.5 kg
protection rating
ip40
communication port
rs-232
humidity
<95% rh (non-condensing)
operating temperature
-10°c to 55°c
wi-fi monitoring
optional
grid feeding
supported
battery required
no
Product Details
The Ziewnic LOBO PV7000 5kW Solar Inverter is a high-performance single-phase solar inverter designed for residential and commercial solar power systems. Built with advanced MPPT technology, it supports the latest TOPCon, HJT, and HiMO 10 solar panels, including high-power modules up to 1000W. The inverter operates in both On-Grid and Off-Grid modes, features a battery-independent design, and offers intelligent energy management with grid feeding capability. With dual MPPT tracking, high conversion efficiency, built-in dust protection, and optional Wi-Fi monitoring, the LOBO PV7000 delivers reliable and efficient solar power generation for modern energy systems.
