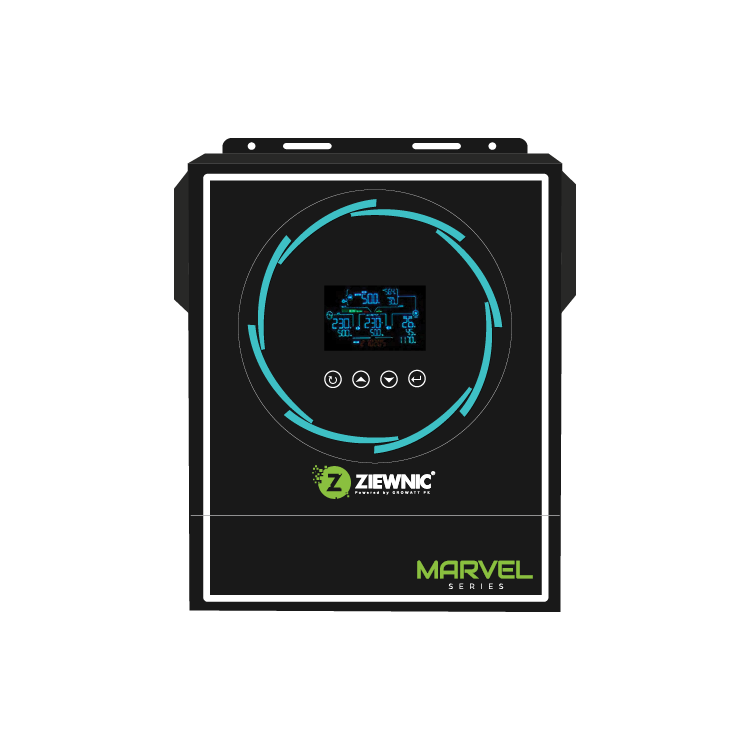

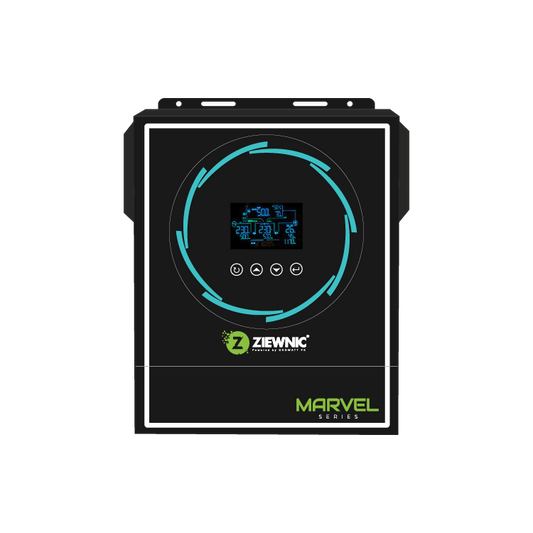

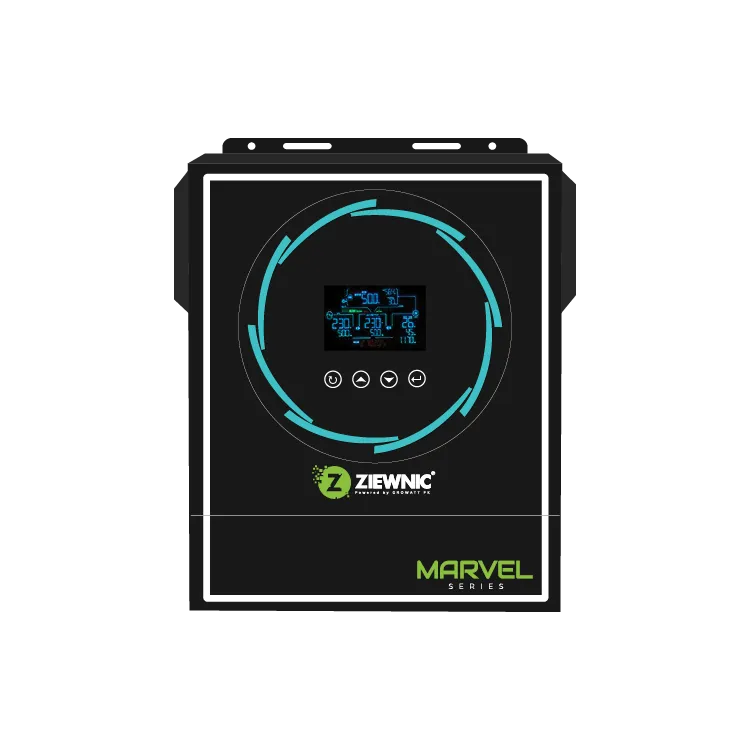

The ZIEWNIC MARVEL 5G PV8500 7kVA Hybrid Solar Inverter is a premium European-designed solar energy solution built for residential and commercial applications. Featuring advanced 5th Generation Hybrid Inverter Technology, dual MPPT solar charge controllers, built-in WiFi monitoring, and intelligent energy management, it delivers exceptional performance and flexibility. The inverter supports On-Grid, Off-Grid, and Hybrid operation modes, allowing seamless integration with solar panels, batteries, utility power, and generators. With a powerful 160A charging capability, parallel operation support for up to 12 units, zero export functionality, and compatibility with all major lithium battery technologies, the PV8500 is designed to maximize energy independence and solar efficiency.
184v β 264.5vac or 195.5v β 253vac (selectable)
nominal output current
29.54a
battery voltage
48vdc
floating charge voltage
54vdc
overcharge protection voltage
63vdc
solar charger type
dual mppt (parallel)
maximum pv open circuit voltage
500vdc
maximum pv array power
8500w
mppt operating voltage range
120v β 450vdc
maximum solar charge current
160a (80a + 80a)
maximum pv input current
32a
nominal pv voltage
240vdc
maximum ac charge current
60a
dimensions (d Γ w Γ h)
224 Γ 535 Γ 425 mm
net weight
13.5 kg
communication interface
usb, rs232, rs485, can
built-in wifi
yes
relative humidity
0% β 90% (non-condensing)
operating temperature
-10Β°c to 50Β°c
storage temperature
-15Β°c to 60Β°c
battery compatibility
lithium, li-ion, lifepo4
parallel capability
up to 12 units
net metering support
yes
zero export function
built-in
reverse grid feeding
supported
display type
smart color lcd touch screen
protection features
overload protection, short circuit protection, anti-dust protection, bms integration
warranty
5 years
Product Details
The ZIEWNIC MARVEL 5G PV8500 7kVA Hybrid Solar Inverter is a premium European-designed solar energy solution built for residential and commercial applications. Featuring advanced 5th Generation Hybrid Inverter Technology, dual MPPT solar charge controllers, built-in WiFi monitoring, and intelligent energy management, it delivers exceptional performance and flexibility. The inverter supports On-Grid, Off-Grid, and Hybrid operation modes, allowing seamless integration with solar panels, batteries, utility power, and generators. With a powerful 160A charging capability, parallel operation support for up to 12 units, zero export functionality, and compatibility with all major lithium battery technologies, the PV8500 is designed to maximize energy independence and solar efficiency.
