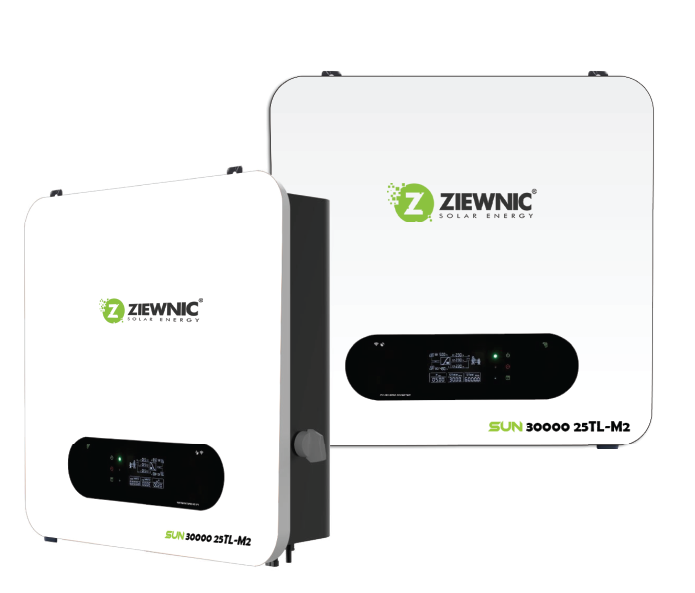

The Ziewnic Sun-M2 PV15000 10kW Three Phase On-Grid Solar Inverter is a high-efficiency grid-tied solar solution designed for commercial, industrial, and large residential solar systems. Featuring dual MPPT technology, a transformerless design, and up to 98.4% efficiency, it maximizes solar energy harvesting while ensuring reliable and stable grid integration. With an IP65-rated enclosure, LCD display, Wi-Fi monitoring support, and advanced protection features, the Sun-M2 PV15000 delivers long-term performance in both indoor and outdoor installations. Its compact design and easy installation make it an ideal choice for modern three-phase solar power systems.
10-Year Warranty (5 Years Manufacturing Fault + 5 Years Service)
Product Specifications
Type
three phase on-grid solar inverter
ac nominal power
10000w
maximum dc power
15000w
maximum ac apparant power
11000va
maximum dc voltage
1000vdc
minimum working voltage
250vdc
mppt voltage range
250v – 850vdc
maximum input current per string
16a / 16a
number of mppt trackers
2
strings per mppt
1
maximum output current
17a
nominal ac output
50hz / 60hz, 400vac
ac output voltage range
280v – 490vac
power factor
0.8 leading to 0.8 lagging
harmonic distortion (thd)
<5%
grid type
3w / n / pe
maximum efficiency
98.4%
euro efficiency
97.9%
mppt efficiency
99.9%
dc reverse polarity protection
yes
dc breaker
yes
dc/ac spd protection
yes
leakage current protection
yes
insulation impedance detection
yes
residual current protection
yes
operating temperature range
-25°c to +60°c
protection rating
ip65
cooling method
natural convection
topology
transformerless
display
lcd
humidity range
0% – 95% (non-condensing)
communication
standard wifi, optional rs485
warranty
5 years manufacturing fault + 5 years service
Product Details
The Ziewnic Sun-M2 PV15000 10kW Three Phase On-Grid Solar Inverter is a high-efficiency grid-tied solar solution designed for commercial, industrial, and large residential solar systems. Featuring dual MPPT technology, a transformerless design, and up to 98.4% efficiency, it maximizes solar energy harvesting while ensuring reliable and stable grid integration. With an IP65-rated enclosure, LCD display, Wi-Fi monitoring support, and advanced protection features, the Sun-M2 PV15000 delivers long-term performance in both indoor and outdoor installations. Its compact design and easy installation make it an ideal choice for modern three-phase solar power systems.
