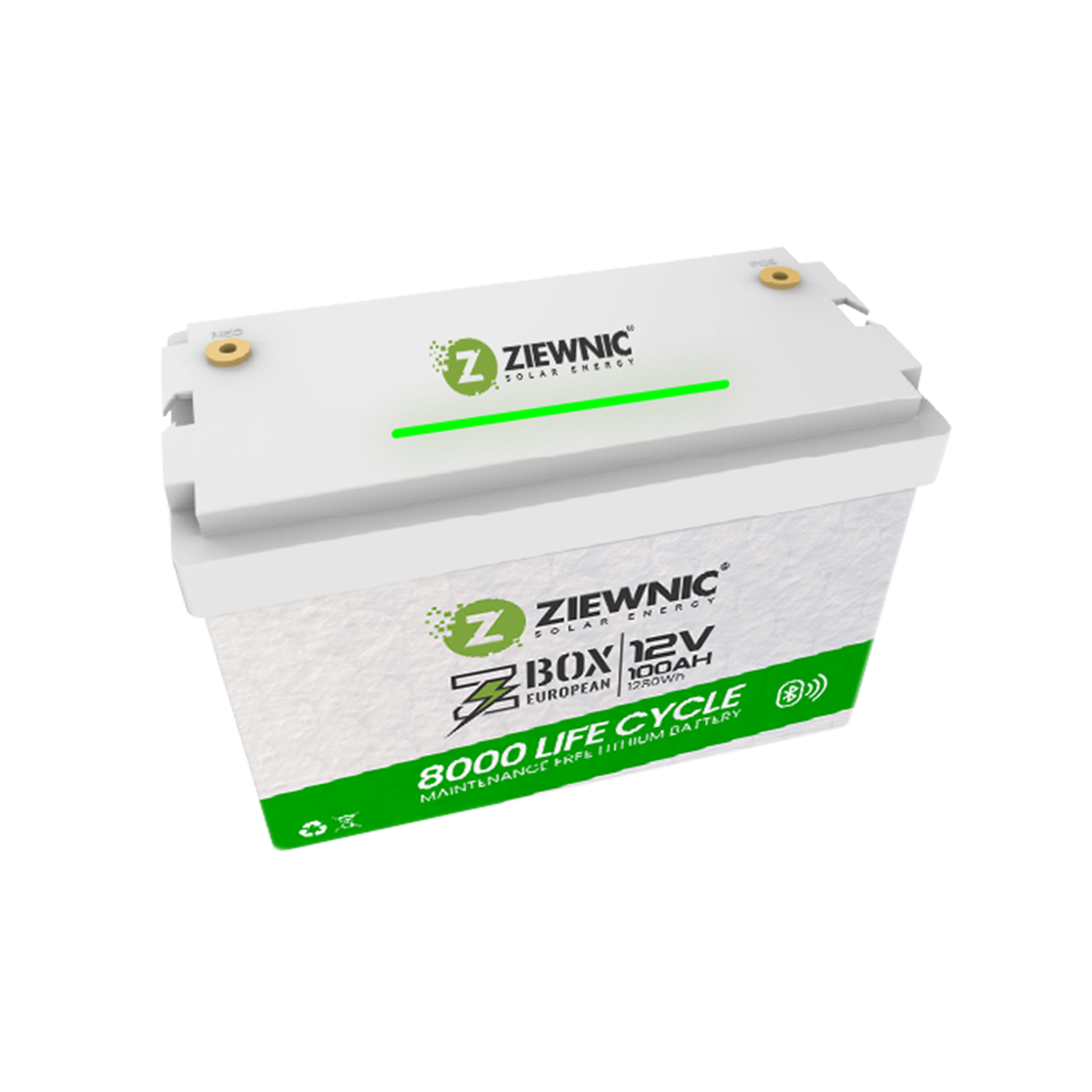

The Ziewnic Z-Box 12V 100Ah Lithium Battery Power Bank is a premium LiFePO4 (Lithium Iron Phosphate) energy storage battery designed to provide reliable, long-lasting, and maintenance-free power for solar systems, backup applications, UPS systems, RVs, marine installations, and off-grid energy storage. Featuring an impressive 8,000+ life cycles, built-in safety protection, hardware BMS, and support for both series and parallel connections, the Z-Box offers superior performance compared to conventional lead-acid and tubular batteries. Its lightweight design, IP54 protection, and advanced lithium technology ensure maximum efficiency, safety, and durability in demanding environments.
Lightweight Design Compared to Lead-Acid Batteries
Supports Series & Parallel Expansion
High Charge & Discharge Performance
Maintenance-Free Operation
Environmentally Friendly Technology
Built-in Safety Protection System
Ideal Replacement for Lead-Acid & Tubular Batteries
UN38.3 Transportation Safety Certified
European Standard Design & Engineering
Floor-Mounted & Stack-Mounted Installation
Made in Vietnam
5-Year Warranty
Product Specifications
Type
lithium battery
nominal capacity
100ah
nominal voltage
12.8v
operating voltage
11.2v – 14.6v
nominal energy
1.28kwh
discharge energy
1280wh
recommended depth of discharge (dod)
80%
scalability
max 4 units in series (51.2v) & max 10 units in parallel
maximum continuous charge current
100a
peak charge current
200a (10 seconds)
maximum continuous discharge current
100a
peak discharge current
200a (10 seconds)
maximum continuous discharge current @ 25°c
80a
maximum pulse discharge current @ 25°c (10s)
120a
maximum continuous charge current @ 25°c
80a
maximum pulse charge current @ 25°c (10s)
120a
full charged voltage
14.6v
discharge cut-off voltage
10v
dc resistance
=10mo
specific energy
=140wh/kg
cell configuration
prismatic, ip4s
dimensions (w × d × h)
310 × 160 × 298 mm
weight
11 kg
case material
abs + pc
led indicator
soc, working status, protection status & buzzer
communication
hardware bms
enclosure protection rating
ip54
charging temperature range
0°c to 55°c
discharging temperature range
-20°c to 55°c
storage temperature range
0°c to 35°c
relative humidity
95%
maximum installation altitude
<2000m
life cycle
>8000 cycles (25°c ±2°c, 80% dod, 70% eol)
certification
un38.3, msds
Product Details
The Ziewnic Z-Box 12V 100Ah Lithium Battery Power Bank is a premium LiFePO4 (Lithium Iron Phosphate) energy storage battery designed to provide reliable, long-lasting, and maintenance-free power for solar systems, backup applications, UPS systems, RVs, marine installations, and off-grid energy storage. Featuring an impressive 8,000+ life cycles, built-in safety protection, hardware BMS, and support for both series and parallel connections, the Z-Box offers superior performance compared to conventional lead-acid and tubular batteries. Its lightweight design, IP54 protection, and advanced lithium technology ensure maximum efficiency, safety, and durability in demanding environments.
