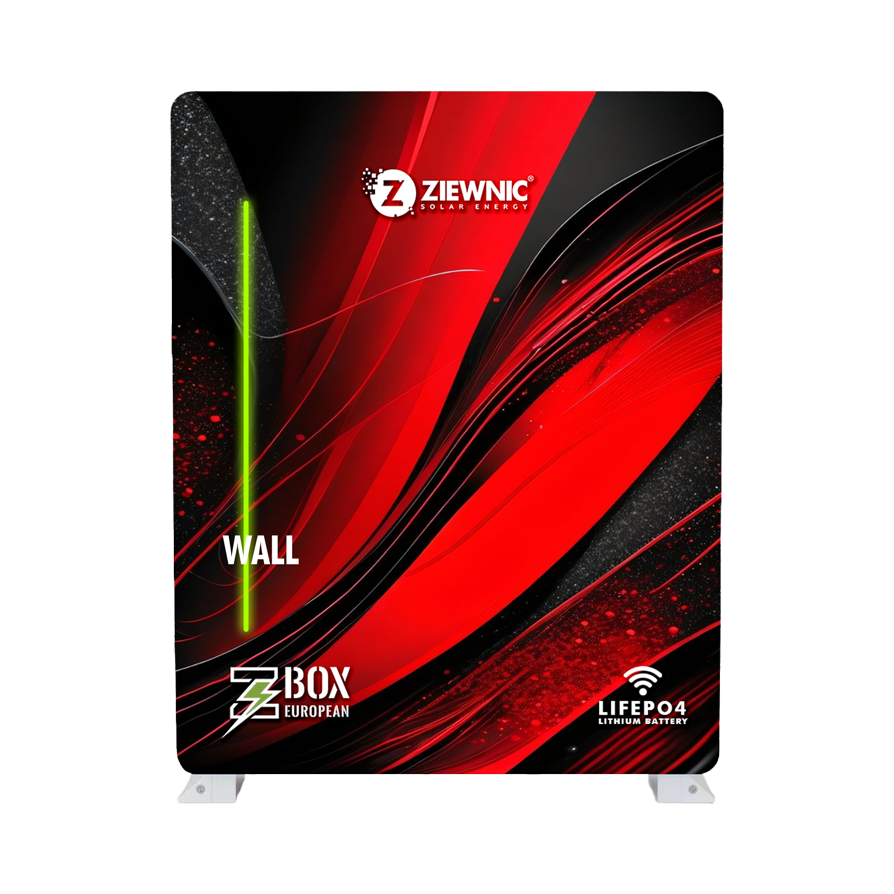

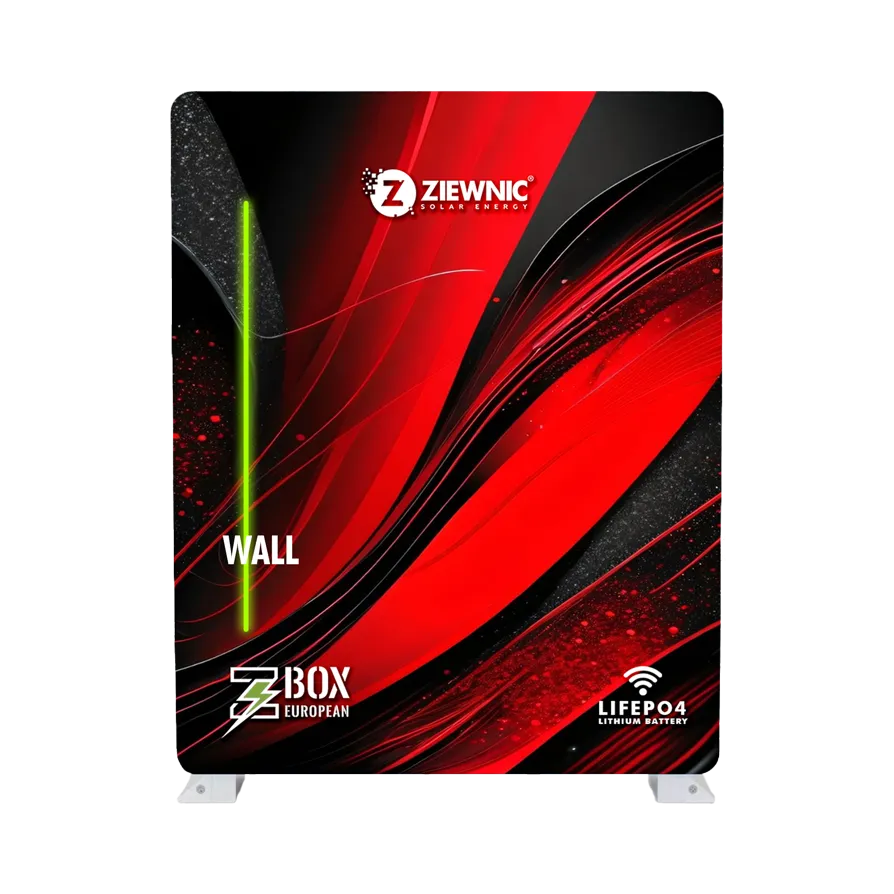

The Ziewnic Z-Box 25.6V 100Ah Lithium Battery Power Bank is a premium European-designed LiFePO4 energy storage battery engineered for solar power systems, hybrid inverters, and backup energy applications. Built with high-quality lithium cells and an intelligent 100A Battery Management System (BMS), it delivers exceptional safety, reliability, and long-term performance. Featuring 8,000+ life cycles, built-in Wi-Fi and Bluetooth communication, RGB status indication, and support for up to 16 batteries in parallel, the Z-Box offers a scalable and future-ready energy storage solution. With wall-mounted or floor-standing installation options and comprehensive protection features, it is ideal for residential and commercial solar energy systems.
High-Quality Lithium Cells for Long-Term Reliability
Intelligent Protection Against Overcharge, Over-Discharge & Short Circuits
Compatible with Solar & Hybrid Inverter Systems
Remote Monitoring via GenixGreen / Ziewnic App
European Standard Design & Engineering
Environmentally Friendly Energy Storage Solution
UN38.3 & MSDS Certified
Designed for 20-Year Service Life
10-Year Warranty
Product Specifications
Type
lithium battery
nominal battery voltage
25.6v
nominal capacity
100ah
nominal energy
2560wh (2.56kwh)
standard charge voltage / power
25.6v / 2560w
operating voltage range
22.4v – 28.8v
maximum continuous discharge current
100a
maximum continuous charge current
100a
parallel function
supports up to 16 units in parallel
cycle life
>8000 cycles (80% dod)
charging temperature range
0°c to 65°c
discharging temperature range
-20°c to 65°c
storage temperature
0°c to 30°c
wi-fi module
built-in
communication ports
rs485, rs232, can
protection rating
ip21
storage duration
3 months at 25°c
protection functions
over charge protection, over discharge protection, over current protection, short circuit protection, over temperature protection
dimensions (l × w × h)
370 × 380 × 170 mm
weight
27 kg
safety certifications
un38.3, msds
bms rating
100a
led indicator
rgb battery capacity display
mobile app support
genixgreen / ziewnic (ios & android)
design standard
european design & engineering
service life design
up to 20 years
warranty
10 years
Product Details
The Ziewnic Z-Box 25.6V 100Ah Lithium Battery Power Bank is a premium European-designed LiFePO4 energy storage battery engineered for solar power systems, hybrid inverters, and backup energy applications. Built with high-quality lithium cells and an intelligent 100A Battery Management System (BMS), it delivers exceptional safety, reliability, and long-term performance. Featuring 8,000+ life cycles, built-in Wi-Fi and Bluetooth communication, RGB status indication, and support for up to 16 batteries in parallel, the Z-Box offers a scalable and future-ready energy storage solution. With wall-mounted or floor-standing installation options and comprehensive protection features, it is ideal for residential and commercial solar energy systems.
