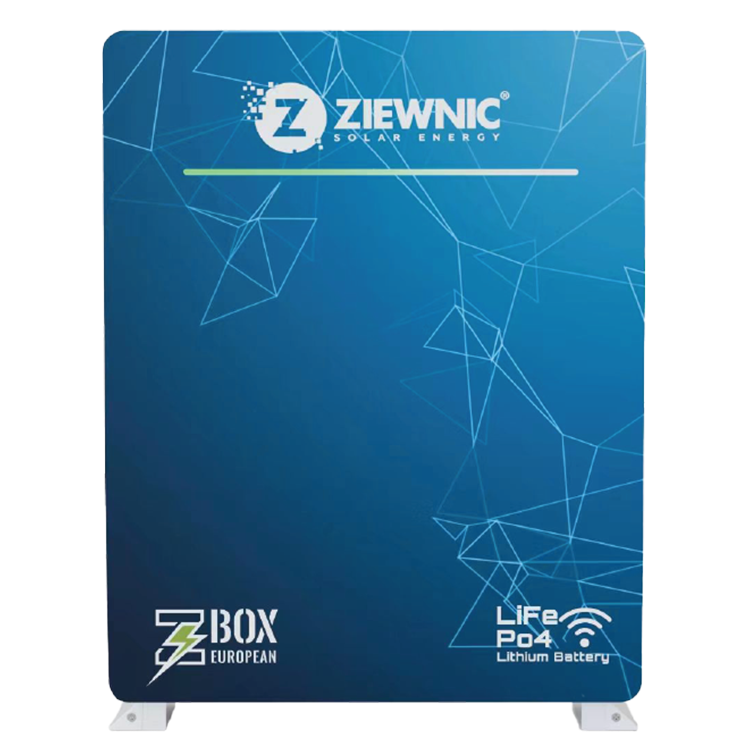

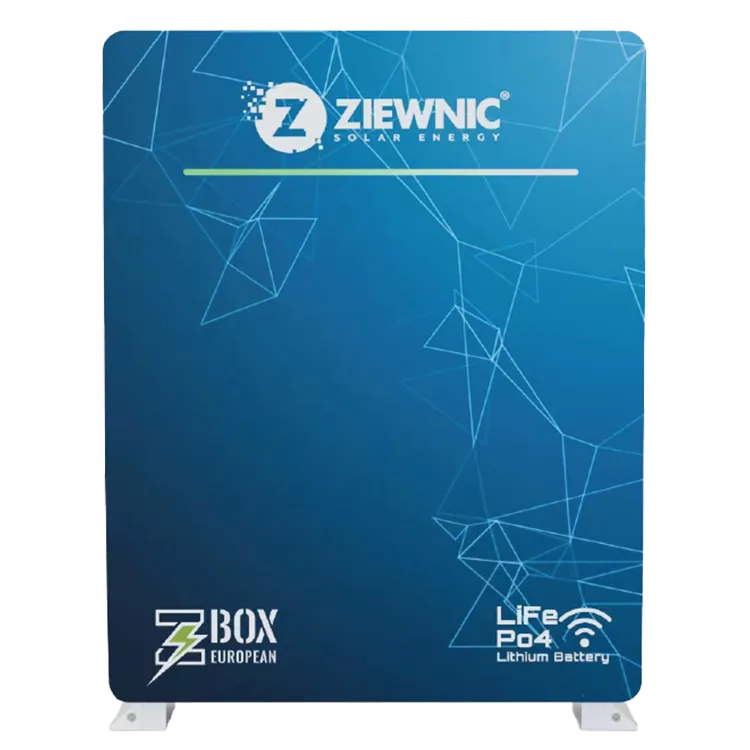

The Ziewnic Z-Box 51.2V 100Ah Lithium Battery is a premium European-designed LiFePO4 energy storage solution developed for residential, commercial, and industrial solar power systems. Featuring advanced lithium iron phosphate technology, a built-in 100A Smart BMS, Wi-Fi and Bluetooth communication, and support for up to 16 batteries in parallel, it delivers exceptional performance, safety, and scalability. With an impressive 8,000+ life cycles, intelligent protection features, and remote monitoring through the Ziewnic mobile application, the Z-Box provides reliable long-term energy storage while serving as an ideal replacement for traditional lead-acid and tubular batteries.
Compatible with Solar Inverters & Energy Storage Systems
Premium LiFePO4 Cells for Enhanced Safety
European Design & Engineering Standard
Environmentally Friendly Energy Storage Solution
UN38.3 & MSDS Certified
Designed for 20-Year Service Life
10-Year Warranty
Product Specifications
Type
lithium battery
installation type
floor standing / wall mount
nominal voltage
51.2v
nominal capacity
100ah
nominal energy
5120wh (5.12kwh)
standard charge voltage / power
56.0v / 5600w
operating voltage range
44.8v – 58.4v
maximum continuous charge current
100a
maximum continuous discharge current
100a
parallel function
supports up to 16 units in parallel
cycle life
>8000 cycles (80% dod)
charging temperature range
0°c to 65°c
discharging temperature range
-20°c to 65°c
storage temperature
0°c to 30°c
wi-fi module
built-in
communication ports
rs485, rs232, can
protection rating
ip21
storage duration
3 months at 25°c
protection features
over charge protection, over discharge protection, over current protection, short circuit protection, over temperature protection
dimensions (l × w × h)
480 × 600 × 150 mm
weight
48 kg
safety certifications
un38.3, msds
bms rating
100a
led indicator
rgb battery capacity display
mobile app support
genixgreen / ziewnic app (ios & android)
design standard
european design & engineering
service life design
up to 20 years
warranty
10 years
Product Details
The Ziewnic Z-Box 51.2V 100Ah Lithium Battery is a premium European-designed LiFePO4 energy storage solution developed for residential, commercial, and industrial solar power systems. Featuring advanced lithium iron phosphate technology, a built-in 100A Smart BMS, Wi-Fi and Bluetooth communication, and support for up to 16 batteries in parallel, it delivers exceptional performance, safety, and scalability. With an impressive 8,000+ life cycles, intelligent protection features, and remote monitoring through the Ziewnic mobile application, the Z-Box provides reliable long-term energy storage while serving as an ideal replacement for traditional lead-acid and tubular batteries.
