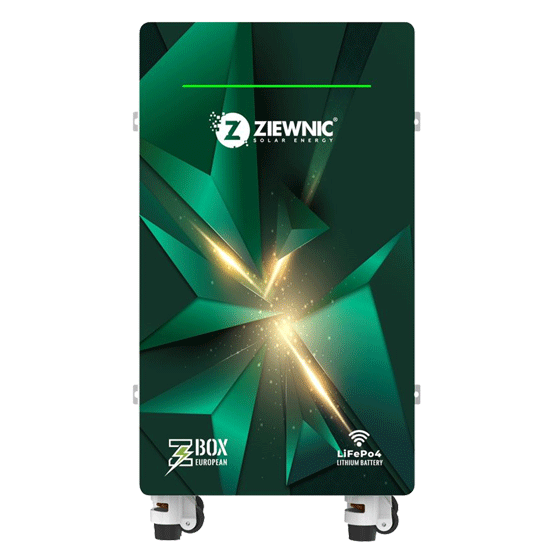

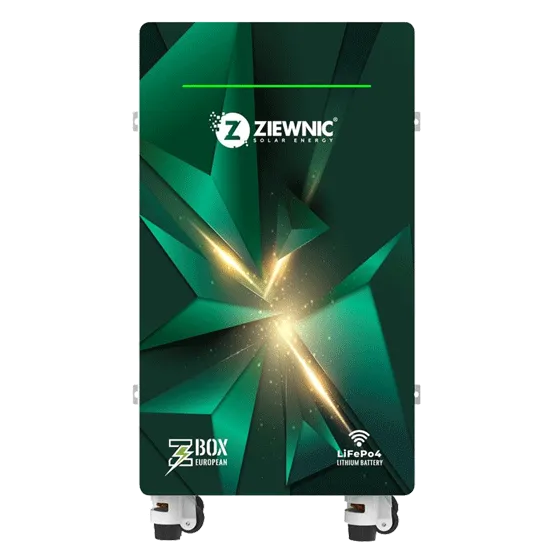

The Ziewnic Z-Box 51.2V 280Ah Lithium Battery is a premium European-designed LiFePO4 energy storage solution engineered for high-capacity residential, commercial, and industrial solar applications. Equipped with genuine BYD lithium cells, a powerful 200A Smart BMS, built-in Wi-Fi and Bluetooth communication, and support for up to 16 batteries in parallel, this battery delivers exceptional reliability, safety, and scalability. With an impressive 14.4kWh storage capacity, over 8,000 life cycles, and intelligent protection features, the Z-Box 280Ah is an ideal solution for hybrid solar systems, off-grid installations, backup power applications, and large-scale energy storage projects.
Designed for Solar Inverters & Energy Storage Systems
European Standard Design & Engineering
Environmentally Friendly Energy Solution
UN38.3 & MSDS Certified
Designed for Up to 20 Years Service Life
10-Year Warranty
Product Specifications
Type
lithium battery
installation type
floor standing / wall mount
nominal voltage
51.2v
nominal capacity
280ah
nominal energy
14,400wh (14.4kwh)
standard charge voltage / power
56.0v / 15,680w
operating voltage range
44.8v – 58.4v
maximum continuous charge current
200a
maximum continuous discharge current
200a
parallel function
supports up to 16 units in parallel
cell brand
byd
cycle life
>8000 cycles (80% dod)
charging temperature range
0°c to 65°c
discharging temperature range
-20°c to 65°c
storage temperature
0°c to 30°c
wi-fi module
built-in
communication ports
rs485, rs232/usb, can
protection rating
ip21
storage duration
3 months at 25°c
protection features
over charge protection, over discharge protection, over current protection, short circuit protection, over temperature protection
dimensions (l × w × h)
490 × 840 × 242 mm
weight
123 kg
safety certifications
un38.3, msds
bms rating
200a
led indicator
rgb battery capacity display
mobile app support
ziewnic app (ios & android)
design standard
european design & engineering
service life design
up to 20 years
warranty
10 years
Product Details
The Ziewnic Z-Box 51.2V 280Ah Lithium Battery is a premium European-designed LiFePO4 energy storage solution engineered for high-capacity residential, commercial, and industrial solar applications. Equipped with genuine BYD lithium cells, a powerful 200A Smart BMS, built-in Wi-Fi and Bluetooth communication, and support for up to 16 batteries in parallel, this battery delivers exceptional reliability, safety, and scalability. With an impressive 14.4kWh storage capacity, over 8,000 life cycles, and intelligent protection features, the Z-Box 280Ah is an ideal solution for hybrid solar systems, off-grid installations, backup power applications, and large-scale energy storage projects.
