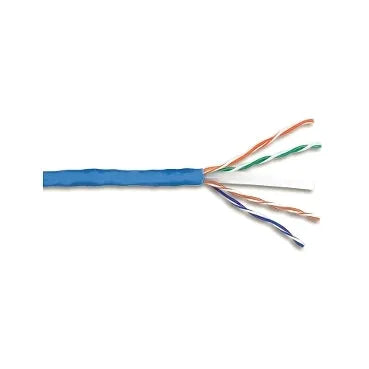

Actassi Cat-6 4-Pair UTP Cable Blue

Name: Actassi Cat-6 4-Pair UTP Cable Blue
Brand: Clipsal by Schneider Electric
SKU: ACT4P6UCM3RBBU-5M
Availability: InStock

Rs.0 PKR

Sale Sold out

Product variants

range	actassi product or component type
2 % within a pair nominal velocity propagation	68 % wire insulation material
iso/iec 11801
ul 444

• Range: Actassi

• Product or component type: Copper cable

• Colour tint: Blue

• Cable shielding type: U/UTP

• Type of cable: 4 pair cables

• Communication network category: 6

• Input impedance: 100 Ohm (+/-5) at 100000 kHz

• Maximum loop resistance: 15 Ohm per 100 m

• Capacitance unbalance: 330 pF / 100 m

• Maximum resistance unbalance: 5 % pair to pair | 2 % within a pair

• Nominal velocity propagation: 68 %

• wire insulation material: PE

• Conductor material: Solid bare copper

• AWG gauge: AWG 23

• Cable outer diameter: 6.2 mm

• Cable length: 305 m

• Ambient air temperature for operation: 75 °C

• Product certifications: UL

• Flame retardance: CM

• Standards: ANSI/TIA/EIA-568-B | ISO/IEC 11801 | UL 444

Schneider_Actassi_Cat-6_UTP_Cable.pdf
