Type
|
on grid solar inverter
|
|
input voltage
|
1100 v
|
|
output voltage
|
230 / 400v
|
|
output current
|
15.9 a
|

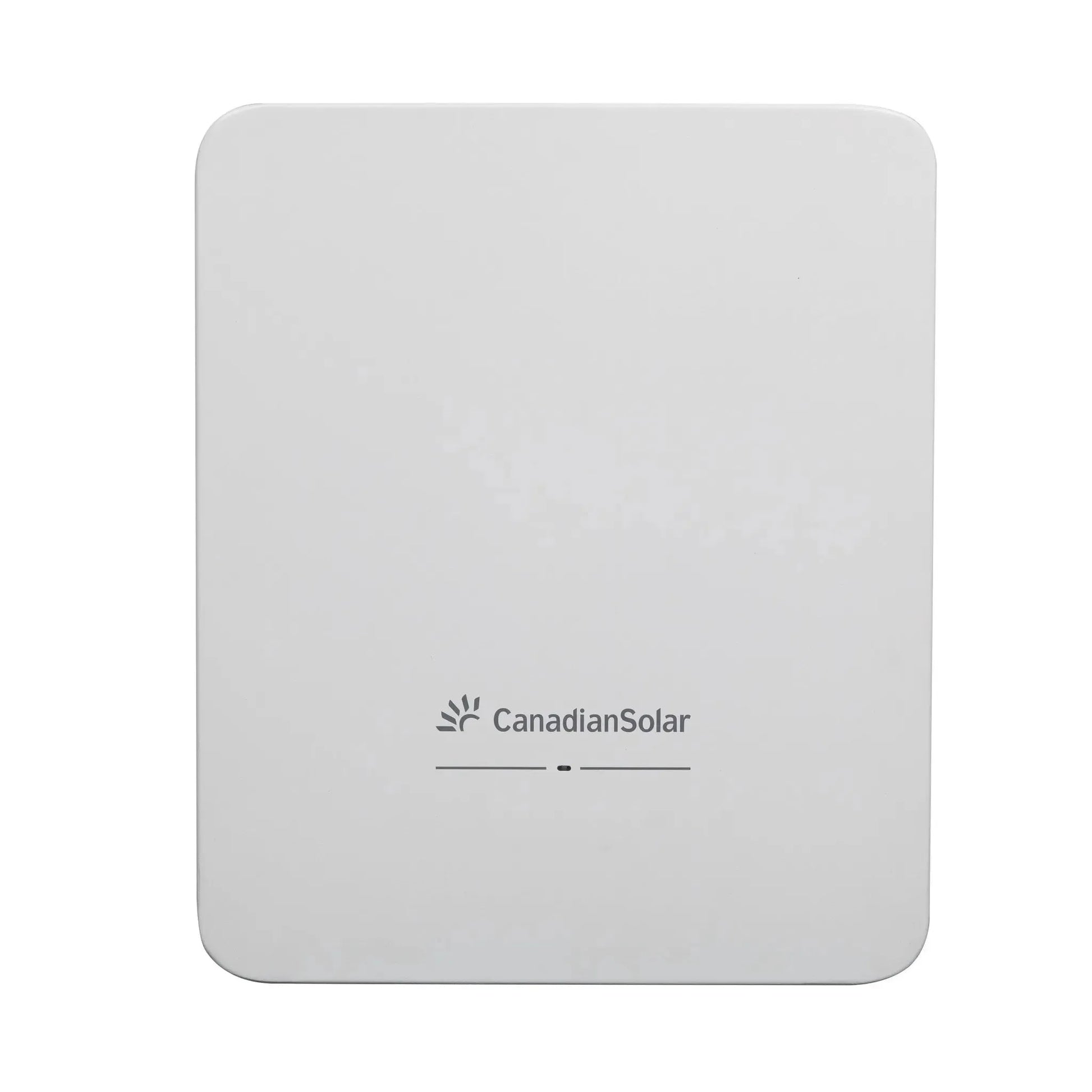

The Canadian 10KW On Grid Solar Inverter (Model: CSI-10KW-T400) is designed to optimize the efficiency of your on-grid solar energy system. With a robust input voltage of 1100V and a maximum PV power of 10KW, this inverter delivers reliable power output of 230/400V at 15.9A. Equipped with an intelligent redundant fan-cooling system, it ensures optimal performance even under high demand. The inverter features a single MPP tracker with an MPPT voltage range of 160-1000V for maximum power efficiency, and supports communication via RS485, Ethernet, and optional PLC. Certified under multiple international standards (IEC 62109, IEC 61000, etc.).
Couldn't load pickup availability
Ask About This Product
|
Type
|
on grid solar inverter
|
|
input voltage
|
1100 v
|
|
output voltage
|
230 / 400v
|
|
output current
|
15.9 a
|
|
output frequency
|
50hz/60hz
|
|
size
|
310 x 563 x 219 mm
|
|
certificate
|
iec 62109, iec 61000, iec 62116, iec 61727
|
|
weight
|
17.8 kg
|
|
max. pv power
|
10kw
|
|
max. dc input voltage
|
1500v
|
|
number of mpp trackers
|
1
|
|
mppt voltage range
|
160 - 1000v
|
|
max. input current (imp)
|
16a
|
|
grid connection type
|
3w / n / pe
|
|
cooling
|
intelligent redundant fan-cooling
|
|
communication
|
rs485, ethernet, optional
|
The Canadian 10KW On Grid Solar Inverter (Model: CSI-10KW-T400) is designed to optimize the efficiency of your on-grid solar energy system. With a robust input voltage of 1100V and a maximum PV power of 10KW, this inverter delivers reliable power output of 230/400V at 15.9A. Equipped with an intelligent redundant fan-cooling system, it ensures optimal performance even under high demand. The inverter features a single MPP tracker with an MPPT voltage range of 160-1000V for maximum power efficiency, and supports communication via RS485, Ethernet, and optional PLC. Certified under multiple international standards (IEC 62109, IEC 61000, etc.).
