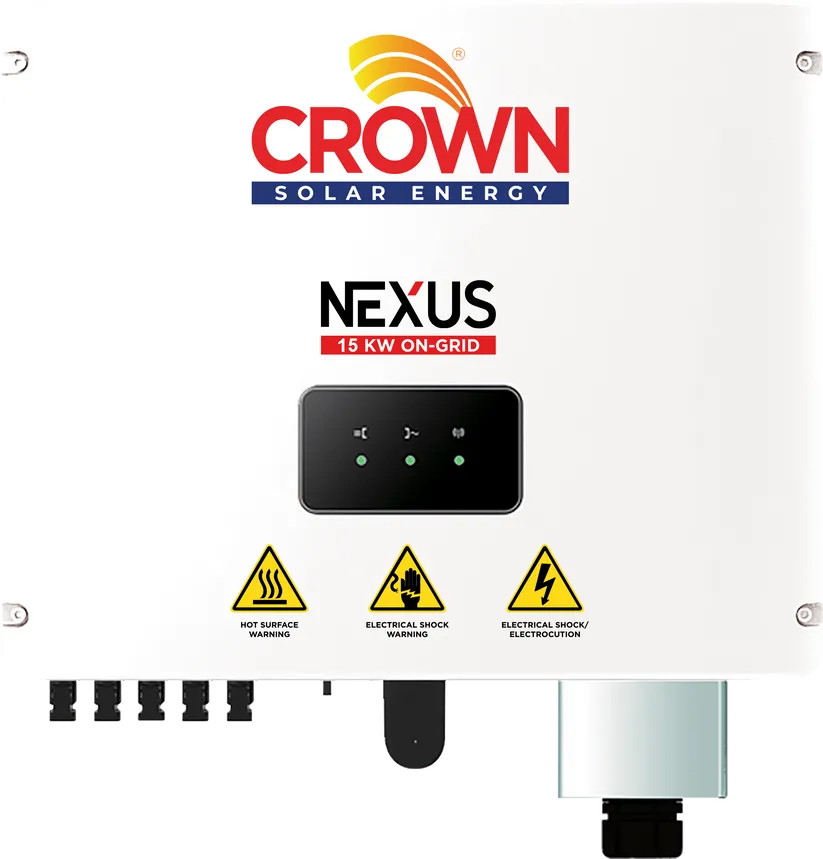

Crown Solar Energy Nexus 15kW On-Grid Inverter Price in Pakistan is Rs. 215,000/-. The Crown Solar Energy Nexus 15kW On-Grid Inverter (IP66) is a high-performance, outdoor-rated solar inverter designed for residential, commercial, and small industrial solar systems. With its transformerless design and maximum efficiency of up to 98.7%, it ensures optimal solar power conversion and long-term reliability.
Equipped with dual independent MPPTs (Maximum Power Point Trackers), the Nexus 15kW inverter efficiently maximizes solar energy harvesting from multiple string configurations, even under partial shading or variable sunlight. Its wide DC input range (180V–1000V) provides flexibility for diverse solar array designs, while the integrated Wi-Fi connectivity allows real-time remote monitoring via the Crown Solar Energy app or portal.
Built with an IP66-rated weatherproof enclosure, the Nexus series is engineered for harsh...
15kW On-Grid Inverter ideal for homes, farms, and commercial buildings
Up to 98.7% efficiency for superior energy conversion
Dual MPPTs maximize power generation under varying conditions
Wide DC voltage range (180V–1000V) for flexible solar array design
IP66-rated enclosure ensures outdoor durability and waterproof protection
Integrated Wi-Fi connectivity for remote monitoring and performance tracking
Transformerless design reduces energy losses and improves system lifespan
Comprehensive protection suite ensures safety and reliability
10-year complete replacement warranty from Crown Solar Energy
Product Specifications
Type
on-grid solar inverter
rated ac output power
15,000 w (15 kw)
maximum dc input power
22,500 w
dc input voltage range
180 v – 1000 v
start-up voltage
200 v
nominal dc voltage
600 v
maximum input current
2 × 25 a
mppt trackers / inputs per mppt
2 / 1
ac output voltage
230/400 v, 3 phase
ac output current
22 a
output frequency
50 / 60 hz (auto adjustable)
power factor
>0.99 (adjustable)
total harmonic distortion (thd)
<3%
maximum efficiency
98.7%
european efficiency
98.3%
topology
transformerless
protection degree
ip66 (outdoor use)
communication interface
built-in wi-fi, rs485, optional gprs
cooling method
natural convection / intelligent fan cooling
display
lcd / led status indicators
protection functions
dc reverse polarity, overvoltage, overcurrent, over-temperature, islanding, short circuit, ground fault
operating temperature range
−25°c to +60°c
relative humidity
0–100% (non-condensing)
altitude
≤2000 m (derating above 2000 m)
noise level
<45 db
dimensions (w × h × d)
480 × 550 × 200 mm
weight
25 kg
installation type
wall-mounted
warranty
10 years complete replacement warranty
Product Details
Crown Solar Energy Nexus 15kW On-Grid Inverter Price in Pakistan is Rs. 215,000/-. The Crown Solar Energy Nexus 15kW On-Grid Inverter (IP66) is a high-performance, outdoor-rated solar inverter designed for residential, commercial, and small industrial solar systems. With its transformerless design and maximum efficiency of up to 98.7%, it ensures optimal solar power conversion and long-term reliability.
Equipped with dual independent MPPTs (Maximum Power Point Trackers), the Nexus 15kW inverter efficiently maximizes solar energy harvesting from multiple string configurations, even under partial shading or variable sunlight. Its wide DC input range (180V–1000V) provides flexibility for diverse solar array designs, while the integrated Wi-Fi connectivity allows real-time remote monitoring via the Crown Solar Energy app or portal.
Built with an IP66-rated weatherproof enclosure, the Nexus series is engineered for harsh outdoor environments, ensuring durability, safety, and consistent performance. Backed by Crown Solar Energy’s 10-year complete replacement warranty, it delivers peace of mind and sustainable power generation for years to come.
