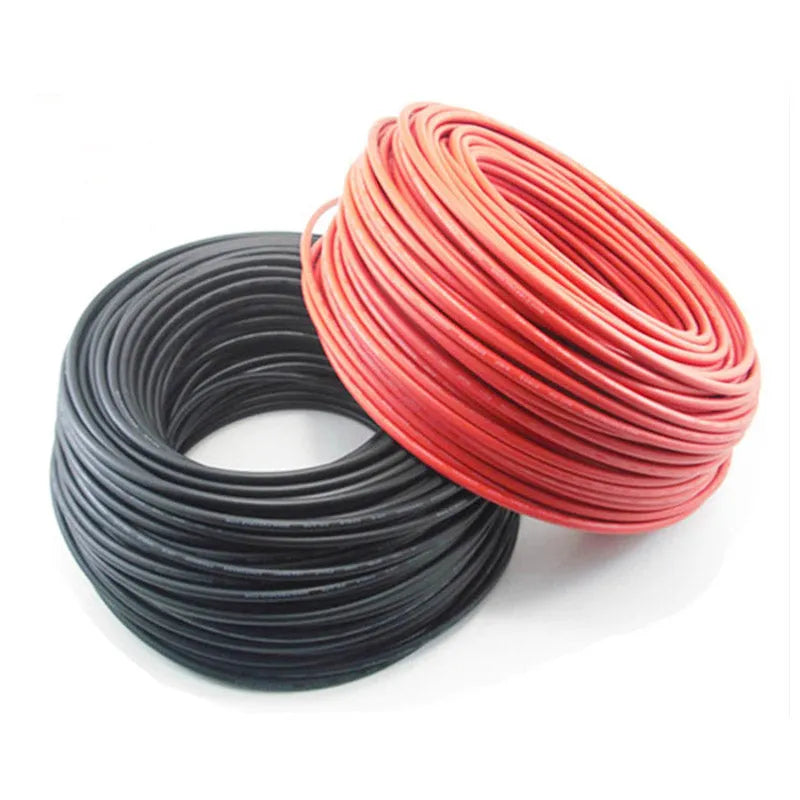

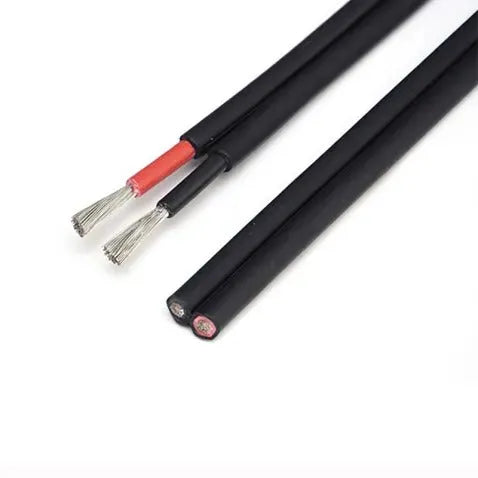

The Jiukai H1Z2Z2-K PV Solar Cable DC 1500V is engineered for photovoltaic power generation systems, delivering safe and reliable power transmission in residential, commercial, and industrial solar installations. Constructed with a flexible Class 5 tinned copper conductor and durable XLPO insulation and sheath, this cable offers excellent resistance to environmental stress while maintaining long-term electrical performance. Its halogen-free, low-smoke design enhances safety, making it ideal for modern solar energy applications. Manufactured in accordance with EN50618 standards, the cable supports DC systems up to 1500V and operates efficiently across a wide temperature range.
Designed for photovoltaic (PV) solar power systems
DC 1500V rated for high-voltage solar installations
Flexible Class 5 tinned copper conductor
XLPO insulation and outer sheath for durability
Halogen-free and low-smoke construction
Excellent resistance to heat and environmental conditions
Suitable for indoor and outdoor solar applications
Complies with EN50618 solar cable standards
Wide operating temperature range from -40°C to +90°C
Black jacket for enhanced UV resistance and professional installation
Product Specifications
Type
cable
cable size
1 × 4mm²
application
photovoltaic (pv) power generation systems
standard
en50618
rated voltage
dc 1500v
test voltage
6500v
conductor material
tinned copper
conductor class
class 5
conductor diameter
2.41mm
insulation material
xlpo (cross-linked polyolefin)
insulation thickness (average)
0.8mm
insulation thickness (minimum)
0.68mm
insulation diameter
3.95 ± 0.1mm
sheath material
xlpo
sheath thickness (average)
0.8mm
sheath thickness (minimum)
0.68mm
overall cable diameter
5.55 ± 0.2mm
cable color
black
maximum conductor resistance @ 20°c
5.09 o/km
operating temperature
-40°c to +90°c
elongation before aging
= 125%
tensile strength before aging
= 6.5 n/mm²
Product Details
The Jiukai H1Z2Z2-K PV Solar Cable DC 1500V is engineered for photovoltaic power generation systems, delivering safe and reliable power transmission in residential, commercial, and industrial solar installations. Constructed with a flexible Class 5 tinned copper conductor and durable XLPO insulation and sheath, this cable offers excellent resistance to environmental stress while maintaining long-term electrical performance. Its halogen-free, low-smoke design enhances safety, making it ideal for modern solar energy applications. Manufactured in accordance with EN50618 standards, the cable supports DC systems up to 1500V and operates efficiently across a wide temperature range.
