Rated power
|
3000va/3000w
|
|
selectable voltage range
|
170-280 vac (for personal computers) ; 90-280 vac (for home appliances)
|
|
frequency range
|
50 hz/60 hz (auto sensing)
|
|
ac voltage regulation (batt. mode)
|
230vac ± 5%
|

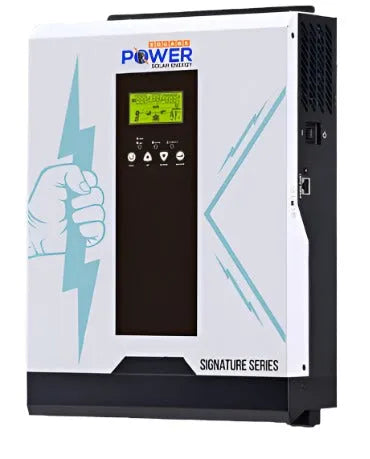

Experience reliable power with the Power Square Signature Series Pv 3200 Solar Inverter. This pure sine wave inverter boasts an output power factor of 1, accommodating a high PV input voltage range. Its battery independent design includes an 80A MPPT solar charger for efficient energy conversion. Featuring a battery equalization function to optimize performance and extend lifespan, plus a built-in anti-dust kit for durability in challenging environments. Ideal for dependable solar energy management.
Couldn't load pickup availability
Ask About This Product
|
Rated power
|
3000va/3000w
|
|
selectable voltage range
|
170-280 vac (for personal computers) ; 90-280 vac (for home appliances)
|
|
frequency range
|
50 hz/60 hz (auto sensing)
|
|
ac voltage regulation (batt. mode)
|
230vac ± 5%
|
|
surge power
|
6000va
|
|
efficiency (peak)
|
93%
|
|
transfer time
|
10 ms (for personal computers) ; 20 ms (for home appliances)
|
|
waveform
|
pure sine wave
|
|
battery voltage
|
24 vdc
|
|
floating charge voltage
|
27 vdc
|
|
overcharge protection
|
32 vdc
|
|
maximum pv array open circuit voltage
|
450 vdc
|
|
maximum pv array power
|
3200w
|
|
mppt range @ operating voltage
|
60-400 vdc
|
|
maximum solar charge current
|
80a
|
|
maximum ac charge current
|
80a
|
|
maximum charge current
|
80a
|
|
dimension, d x w x h (mm)
|
100 x 288 x 390
|
|
net weight (kgs)
|
8.0
|
|
communication interface
|
rs232
|
|
humidity
|
5% to 95% relative humidity (non-condensing)
|
|
operating temperature
|
-100c to 500c
|
|
storage temperature
|
-150c to 600c
|
Experience reliable power with the Power Square Signature Series Pv 3200 Solar Inverter. This pure sine wave inverter boasts an output power factor of 1, accommodating a high PV input voltage range. Its battery independent design includes an 80A MPPT solar charger for efficient energy conversion. Featuring a battery equalization function to optimize performance and extend lifespan, plus a built-in anti-dust kit for durability in challenging environments. Ideal for dependable solar energy management.
