Device short name
|
lrd
|
relay application
|
motor protection
|
network type
|
dc / ac
|
thermal overload class
|
class 10a iec 60947-4-1
|

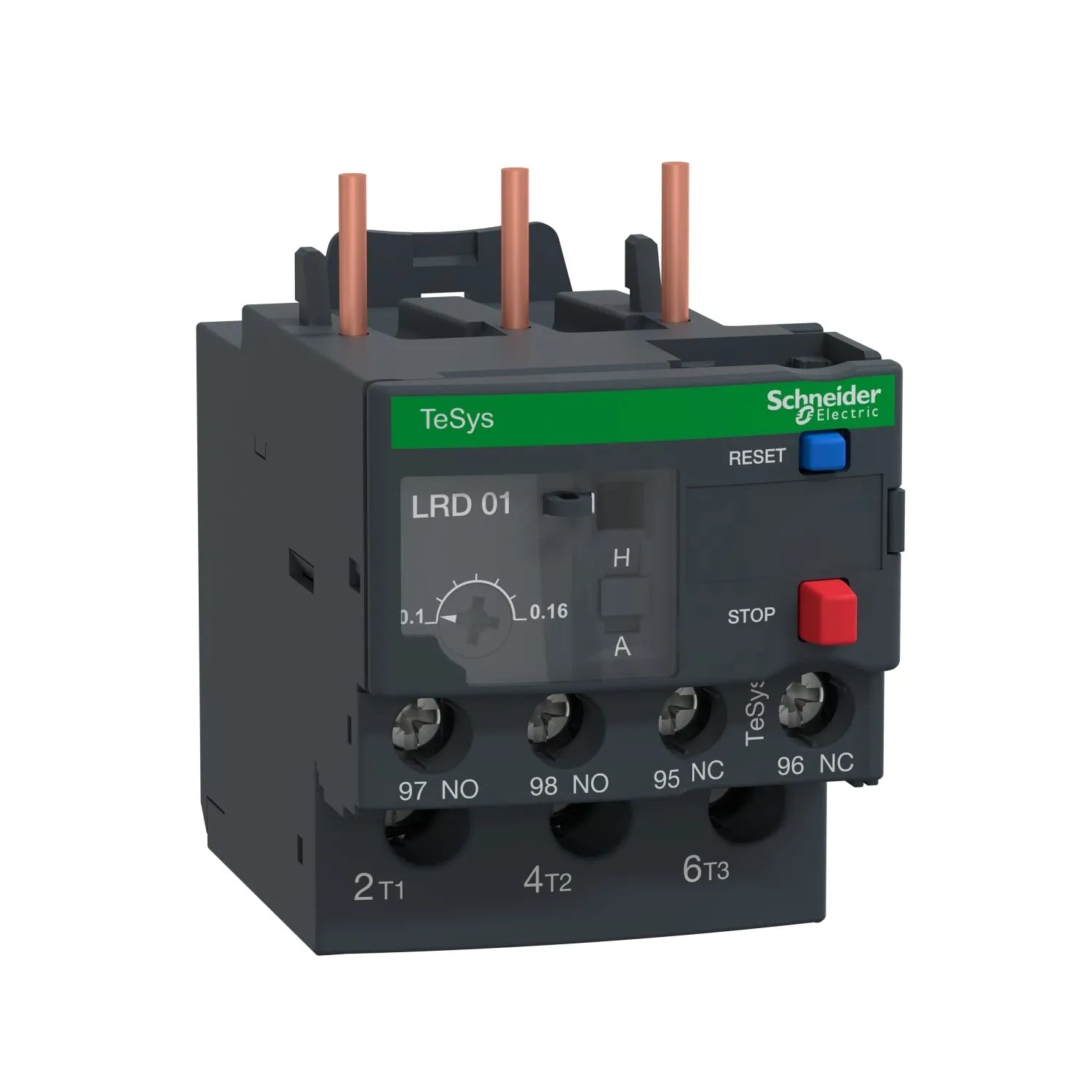

LRD01 is a TeSys LRD thermal overload relay from Schneider Electric to be used with a TeSys D contactor. It protects motors less than 0.06kW@400V thanks to a thermal range of 0.10-0.16A, a tripping class 10A and phase unbalance protection. LRD01 is a TeSys LRD thermal overload relay from Schneider Electric for direct mounting on TeSys D contactors. With a thermal setting range of 0.10-0.16A, a tripping class 10A and phase unbalance detection, it protects motors less than 0.06kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Thermal overload relay is bimetallic, with phase unbalance protection (differential). Direct mounting on...
Device short name
|
lrd
|
relay application
|
motor protection
|
network type
|
dc / ac
|
thermal overload class
|
class 10a iec 60947-4-1
|
thermal protection adjustment range
|
0.1…0.16 a
|
rated insulation voltage [ui]
|
power circuit 600 v csa / power circuit 600 v ul / power circuit 690 v iec 60947-4-1
|
for use with contactors lc1
|
d09 ~ d32
|
network frequency
|
0...400 hz
|
mounting support
|
plate, with specific accessories rail, with specific accessories under contactor
|
tripping threshold
|
1.14 +/- 0.06 ir iec 60947-4-1
|
auxiliary contact composition
|
1 no + 1 nc
|
conventional free air thermal current [ith]
|
5 a signaling circuit
|
permissible current
|
3 a 120 v ac-15 signaling circuit
/ 0.22 a 125 v dc-13 signaling circuit
|
rated operational voltage[ue]
|
690 v ac 0...400 hz power circuit iec 60947-4-1
|
associated fuse rating
|
4 a gg for signaling circuit 4 a bs for signaling circuit
|
rated impulse withstand voltage [uimp]
|
6 kv
|
phase failure sensitivity
|
tripping current 130 % of ir on two-phase, the last one at 0
|
control type
|
red push-button stop, blue push-button reset
|
temperature compensation
|
-4…140 °f (-20…60 °c)
|
climatic withstand
|
iacs e10
|
ip degree of protection
|
ip20 conforming to iec 60529
|
ambient air temperature for operation
|
-4…140 °f (-20…60 °c) without derating iec 60947-4-1
|
ambient air temperature for storage
|
-76…158 °f (-60…70 °c)
|
flame retardance
|
v1 conforming to ul 94
|
mechanical robustness
|
vibrations6 gn iec 60068-2-6, shocks15 gn for 11 ms iec 60068-2-7
|
dielectric strength
|
1.89 kv 50 hz iec 60947-1
|
LRD01 is a TeSys LRD thermal overload relay from Schneider Electric to be used with a TeSys D contactor. It protects motors less than 0.06kW@400V thanks to a thermal range of 0.10-0.16A, a tripping class 10A and phase unbalance protection. LRD01 is a TeSys LRD thermal overload relay from Schneider Electric for direct mounting on TeSys D contactors. With a thermal setting range of 0.10-0.16A, a tripping class 10A and phase unbalance detection, it protects motors less than 0.06kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Thermal overload relay is bimetallic, with phase unbalance protection (differential). Direct mounting on the bottom terminals of a Tesys contactor LC1D09-D38 to form a compact starter. Light and compact, 45mm wide. Temperature-compensated for a good accuracy of the protection. Manual control with test & reset buttons, manual/automatic reset selector. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. It can be completed with terminal blocks for separate mounting (LAD7B, LAD96) and remote control devices (LAD703, LA7D03).
