Schneider 3 PHASE DIGITAL POWER METERS Price In Pakistan is 100000/-

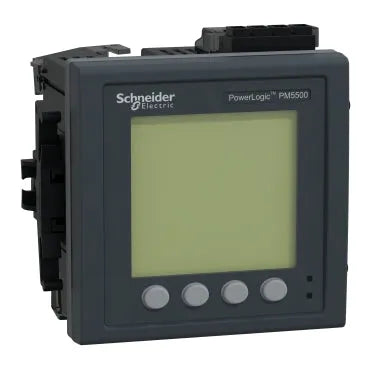

The Schneider PM5560 3 Phase Digital Power Meter is a high-precision device designed for accurate monitoring and analysis of electrical parameters in three-phase power systems. Ideal for industrial facilities, commercial buildings, and utility installations, this meter ensures efficient energy management, reduces operational costs, and enhances system reliability. With its rugged construction and user-friendly interface, the PM5560 delivers real-time data to optimize power quality and performance.
Supports Modbus protocol for easy system integration.
Intuitive interface for quick access to power metrics.
Durable and reliable for industrial environments.
Simple mounting and setup for easy installation.
Product Specifications
Product name
powerlogic pm5560
product type
power meter
power quality analysis
up to the 63rd harmonic
application
gateway, wages metering, power monitoring, multi-tariff
measurements
current, voltage, frequency, power factor, energy, active & reactive power
supply voltage
90-528v ac (45-65hz), 100-300v dc
network frequency
50hz, 60hz
rated current
1a, 5a
network type
1p + n, 3p, 3p + n
power consumption
max 16va at 480v
ride-through time
35ms (120v ac), 129ms (230v ac), 50ms (125v dc)
display type
backlit lcd
resolution
128 x 128 pixels
sampling rate
128 samples/cycle
measurement current
50-10,000ma
measurement voltage
20-828v ac (phase-phase), 20-400v ac (phase-neutral)
frequency range
45-65hz
active energy
±0.2%
reactive energy
±1%
active power
±0.2%
apparent power
±0.5%
reactive power
±1%
frequency
±0.05%
voltage
±0.1%
power factor
±0.005
current
±0.15%
accuracy class
class 0.2s (iec 62053-22)
digital inputs
4
digital outputs
2
relay output
screw terminal block
mounting mode
flush-mounted
mounting support
framework
connections
screw terminal blocks for voltage, current transformers, control circuits, rs485, digital inputs/outputs, and ethernet (rj45 x2)
Product Details
Schneider 3 PHASE DIGITAL POWER METERS Price In Pakistan is 100000/-
The Schneider PM5560 3 Phase Digital Power Meter is a high-precision device designed for accurate monitoring and analysis of electrical parameters in three-phase power systems. Ideal for industrial facilities, commercial buildings, and utility installations, this meter ensures efficient energy management, reduces operational costs, and enhances system reliability. With its rugged construction and user-friendly interface, the PM5560 delivers real-time data to optimize power quality and performance.
