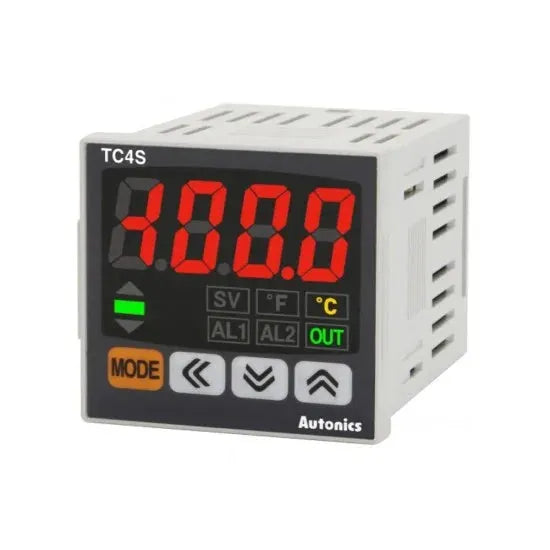

Autonics TC4S-14R Digital PID Temperature Controller Price is on inquiry/-. The Autonics TC4S-14R is a digital temperature controller equipped with auto-tuning PID control, designed to ensure accurate and stable temperature regulation across various industrial applications. With a compact 1/4 DIN size (48 × 48 mm), it features a dual LED display for real-time monitoring, supports a variety of thermocouple and RTD inputs, and includes a relay output for reliable switching. Its simple interface and fast response make it a dependable solution for temperature control in heating and cooling systems.
100ms high-speed sampling rate and ±0.5% display accuracy
All ranges settable to 0C/0F
Both phase control & cycle control available as standard for SSR output
Compact design with large display panels for easier reading
Connector plug types offer easier wiring and maintenance (TCN4S-?-P)
High Speed Sampling: 100ms
Indication Accuracy: 0.5%
Memory Retention of Settings
Multi-Input type: Selectable 4 input modes
One Alarm Output standard in all controllers
Output mode: ON/OFF & PID (Manual or Auto Tuning)
Output type: Combined Relay + SSR output
PID Auto Tuning
Power Supply Voltage: 100 to 240VAC 50/60HZ
Single digital display (switch between PV and SV)
SSR drive output (SSRP function) control options : ON/OFF control, cycle control, phase control
Switch between relay output and SSR drive output
Product Specifications
Type
temperature controller
control method
pid, p, pi, pd, on/off (with auto-tuning)
input types
thermocouple (k, j, t, e, r, s, b, n, l), rtd (pt100, jpt100)
display
dual 4-digit 7-segment led (pv/sv)
output type
relay (1c)
power supply
100–240v ac, 50/60 hz
Product Details
Autonics TC4S-14R Digital PID Temperature Controller Price is on inquiry/-. The Autonics TC4S-14R is a digital temperature controller equipped with auto-tuning PID control, designed to ensure accurate and stable temperature regulation across various industrial applications. With a compact 1/4 DIN size (48 × 48 mm), it features a dual LED display for real-time monitoring, supports a variety of thermocouple and RTD inputs, and includes a relay output for reliable switching. Its simple interface and fast response make it a dependable solution for temperature control in heating and cooling systems.
