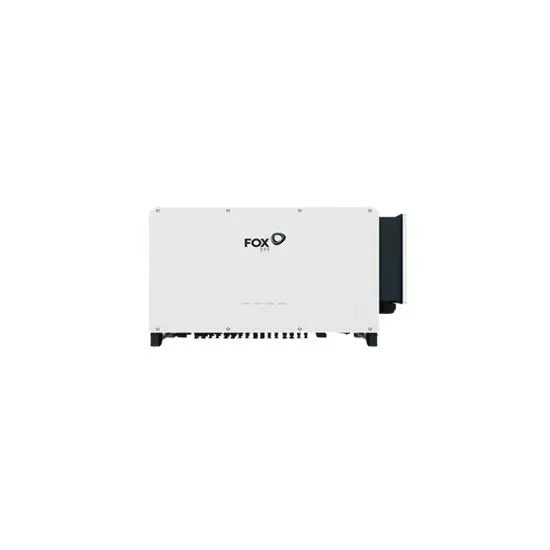

for efficient and reliable solar energy conversion. It includes Smart I/V Curve Function, PV String Current Monitoring, and AFCI Function for optimal performance and safety. With Power Line Communication and LED + Wi-Fi + APP, monitoring and control are convenient and accessible. Featuring PID Recovery for stability, it's built to withstand outdoor conditions with IP65 and C5 Protection. Compatible with Bifacial Module and offering selectable input currents (13A/16A), it adapts to various solar installations for maximum versatility.
13A/ 16A Input current, compatible with Bifacial Module.
Product Specifications
Display
led, wi-fi + app
cooling method
smart air cooling
dc connection
mc4
ingress protection rating
ip66
rated input voltage
600 v
isolation method
transformerless
maximum input voltage
1100 v
mppt operating voltage range
200 - 1000 vdc
phase
three phase
rated output power
75 kw
type
on grid solar inverter
weight
90kg
dimension
975 x 630 x 360mm
Product Details
for efficient and reliable solar energy conversion. It includes Smart I/V Curve Function, PV String Current Monitoring, and AFCI Function for optimal performance and safety. With Power Line Communication and LED + Wi-Fi + APP, monitoring and control are convenient and accessible. Featuring PID Recovery for stability, it's built to withstand outdoor conditions with IP65 and C5 Protection. Compatible with Bifacial Module and offering selectable input currents (13A/16A), it adapts to various solar installations for maximum versatility.
