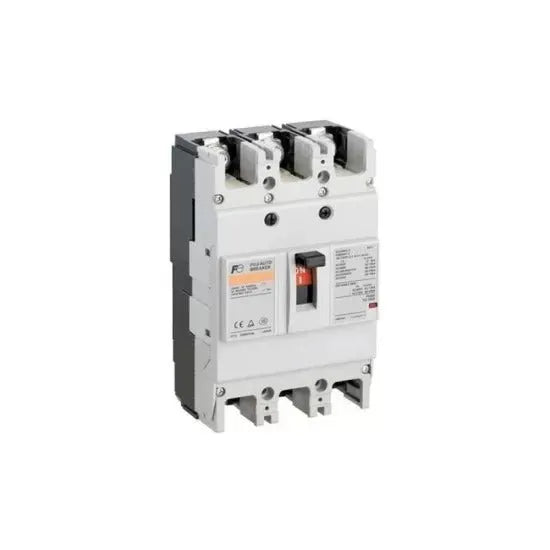

The Fuji BW630-EAG 3 Pole Molded Case Circuit Breaker, part of Fuji Electric's G-twin standard series, provides reliable protection for electrical systems. With a front mounting design and fixed-type construction, installation is simple and secure. Rated for a current of 400A/400AT and boasting a short circuit breaking capacity of 30kA at 400Vac, it ensures high performance and safety in demanding environments. Equipped with a thermal-magnetic trip unit and offering line protection, it ensures comprehensive security for various applications. Additionally, its front connections and lugs terminals provide convenient connectivity.
Easy Installation: Front mounting design for simplicity.
High Capacity: Rated 500A for demanding applications.
Robust Safety: Breaks short circuits up to 30kA.
Comprehensive Security: Thermal-magnetic trip unit included.
Convenient Connectivity: Front connections for easy wiring.
Product Specifications
Rated current
500 a, 600 a
function
moulded case circuit breaker (mccb) / auto breaker
height
257 mm
depth
146 mm
mounting mode
front mounting
protection
line protection thermal protection (overload) magnetic protection (short-circuit)
terminal type
lugs
trip unit name
thermal-magnetic
frame current rating
400 af
rated impulse voltage
8 kv
rated insulation voltage
690 v (dc) 250 v
rated voltage (ac)
690 v
rated voltage (dc)
250 v
trip current rating
300 at , 400 at
connection type
fixed front connection
poles description
3 pole(s)
width
140 mm
Product Details
The Fuji BW630-EAG 3 Pole Molded Case Circuit Breaker, part of Fuji Electric's G-twin standard series, provides reliable protection for electrical systems. With a front mounting design and fixed-type construction, installation is simple and secure. Rated for a current of 400A/400AT and boasting a short circuit breaking capacity of 30kA at 400Vac, it ensures high performance and safety in demanding environments. Equipped with a thermal-magnetic trip unit and offering line protection, it ensures comprehensive security for various applications. Additionally, its front connections and lugs terminals provide convenient connectivity.
