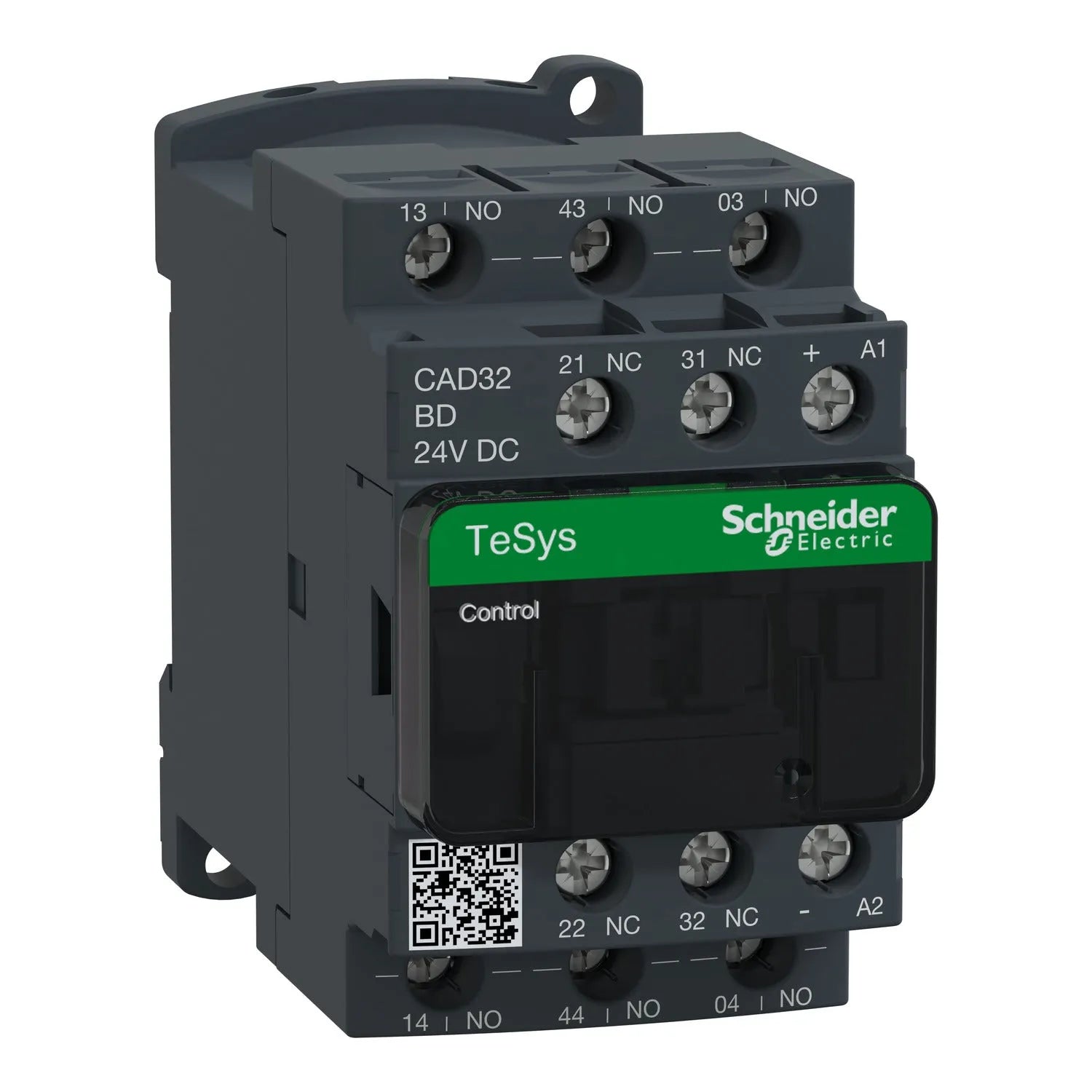

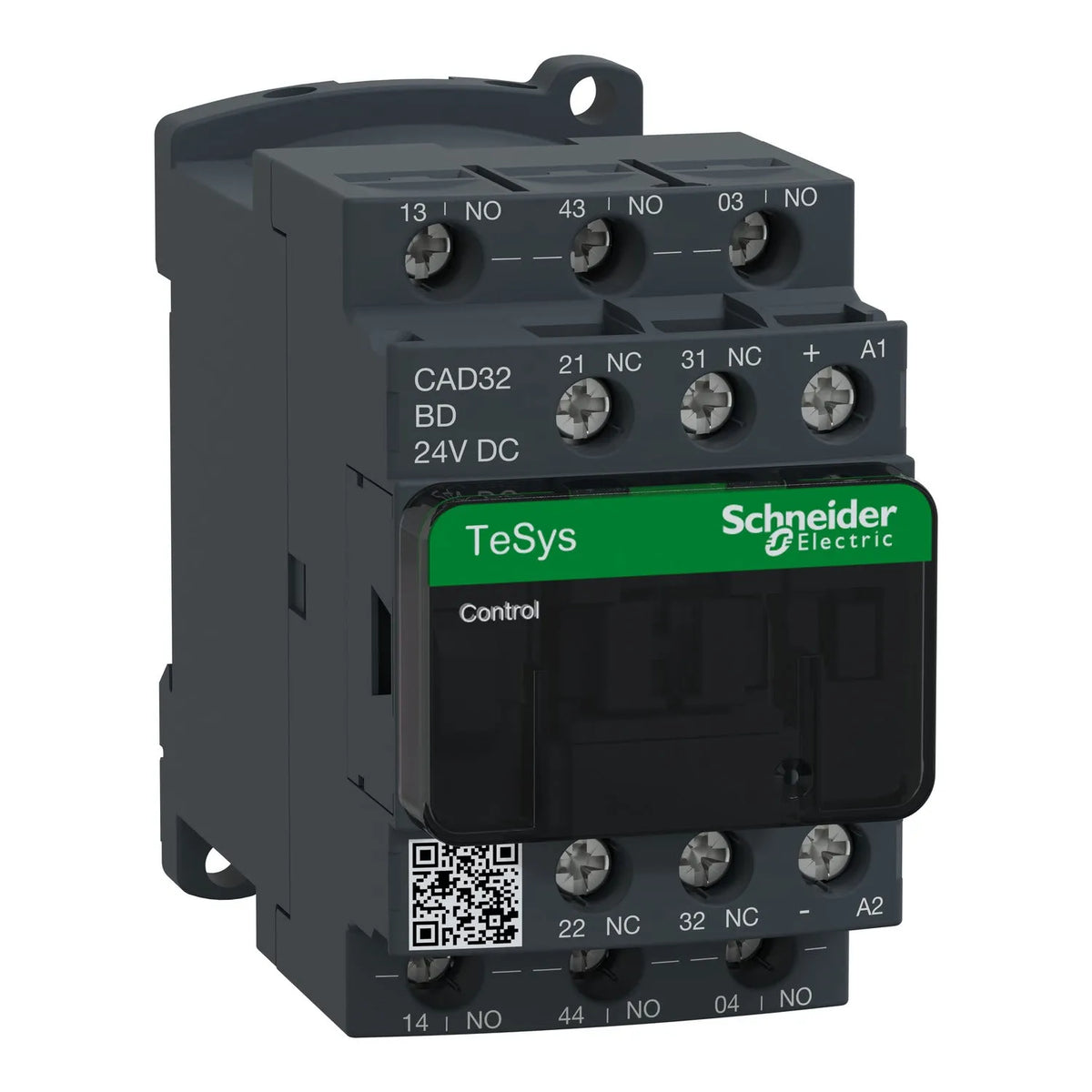

Schneider CAD – 32DB TeSys Deca Control Relay
Availability: In Stock

Schneider CAD – 32DB TeSys Deca Control Relay

Product SKU: CAD32BD
Rs.18,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Range TeSys, TeSys Deca
Product Name TeSys CAD
Product or Component Type Control relay
Device Short Name CAD
Contactor Application Control circuit
Utilisation Category DC-13, AC-15, AC-14
Pole Contact Composition 3 NO + 2 NC
[Ue] Rated Operational Voltage ≤ 690V AC (25...400 Hz)
Control Circuit Type DC standard
[Uc] Control Circuit Voltage 24V DC
[Uimp] Rated Impulse Withstand Voltage 6 kV (IEC 60947)
[Ith] Conventional Free Air Thermal Current 10A (at 60°C)
Irms Rated Making Capacity 140A AC (IEC 60947-5-1), 250A DC (IEC 60947-5-1)
[Icw] Rated Short-Time Withstand Current 100A (1s), 120A (500ms), 140A (100ms)
Associated Fuse Rating 10A gG (IEC 60947-5-1)
[Ui] Rated Insulation Voltage 600V (UL, CSA), 690V (IEC 60947-5-1)
Mounting Support Rail, Plate
Connections - Terminals Screw clamp terminals (1 or 2) for flexible and solid wires (1...4 mm²)
Tightening Torque 10.6 lbf.in (1.2 N.m) (Philips No 2, Flat Ø 6 mm, Pozidriv No 2)
Control Circuit Voltage Limits Drop-out DC (0.1...0.25 Uc), Operational DC (0.7...1.25 Uc at -40 to 60°C), (1...1.25 Uc at 60 to 70°C)
Operating Time Coil energisation (53...72 ms NO closing, 47...63 ms NC opening), Coil de-energisation (16...24 ms NO opening, 15...25 ms NC closing)
Mechanical Durability 30 Mcycles
Maximum Operating Rate 180 cycles/min
Time Constant 28 ms
Inrush Power in W 5.4 W (at 20°C)
Hold-in Power Consumption in W 5.4 W (at 20°C)
Minimum Switching Voltage 17V
Minimum Switching Current 5mA
Non-Overlap Time 1.5 ms (on energisation and de-energisation between NC and NO contact)
Insulation Resistance > 10 MΩ
Mechanical Robustness Shock resistance (10 Gn open, 15 Gn closed - IEC 60068-2-27), Vibration resistance (2 Gn open, 4 Gn closed - IEC 60068-2-6)
Dimensions (H x W x D) 77mm x 45mm x 93mm
Net Weight 1.28 lb (0.58 kg)
Standards EN/IEC 60947-5-1, GB/T 14048.5, UL 60947-5-1, CSA C22.2 No 60947-5-1, JIS C8201-5-1
Product Certifications CB, CCC, UL, CSA, EAC, CE, UKCA
IP Degree of Protection IP2X (front face - VDE 0106)
Protective Treatment TH (IEC 60068)
Ambient Air Temperature for Operation -40 to 60°C (140 to 158°F with derating)
Ambient Air Temperature for Storage -60 to 80°C (-76 to 176°F)
Operating Altitude 0 to 3000m (9842.52 ft)

Key Features

High power motor
Higher work efficiency
Product Details Reviews Shipping & Returns User Manual

Schneider CAD – 32DB TeSys Deca Control Relay

The Schneider CAD-32DB TeSys Deca Control Relay is a reliable solution for industrial control applications. Designed to handle 600V operations with a 24VDC standard coil, it ensures efficient and secure switching of control circuits. With 3 normally open (NO) and 2 normally closed (NC) contacts, this relay offers flexible configuration for various automation and electrical control systems. Its durable construction and compact design make it ideal for industrial environments, providing long-lasting performance with easy installation.
