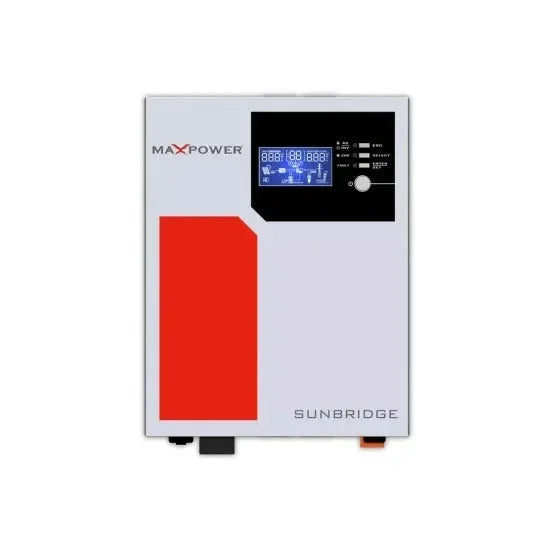

The Max Power Sunbridge 1000 Solar Inverter (900W) offers reliable power conversion and distribution for solar energy systems. With a battery voltage of 12VDC and an efficiency of 82%, it ensures efficient utilization of stored energy. Featuring a transfer time of 20ms and selectable voltage ranges (90-280VAC or 170-280VAC), it accommodates various input conditions. Equipped with overload and short circuit protection, it ensures the safety of connected devices. The inverter combines an LCD and LED indicators for comprehensive information monitoring. With its compact dimensions (272 x 212 x 127 mm) and wide operating temperature range (-15℃ to 55℃), it's suitable for diverse solar energy applications.
Combines LCD Display And LED Indicators For Comprehensive Information.
Product Specifications
Type
solar inverter
battery voltage
12 vdc
efficiency
82%
transfer time
20 ms
selectable voltage range
90-280 vac or 170-280 vac
storage temperature
-15℃ to 55℃
ac voltage regulation
230 vac ±10%
capacity
1200va / 900w
operating temperature
0℃ to 55℃
power
900w
voltage
230 vac
waveform
simulated sine wave
dimension
272 x 212 x 127
frequency range
50 hz/60 hz (auto sensing)
Product Details
The Max Power Sunbridge 1000 Solar Inverter (900W) offers reliable power conversion and distribution for solar energy systems. With a battery voltage of 12VDC and an efficiency of 82%, it ensures efficient utilization of stored energy. Featuring a transfer time of 20ms and selectable voltage ranges (90-280VAC or 170-280VAC), it accommodates various input conditions. Equipped with overload and short circuit protection, it ensures the safety of connected devices. The inverter combines an LCD and LED indicators for comprehensive information monitoring. With its compact dimensions (272 x 212 x 127 mm) and wide operating temperature range (-15℃ to 55℃), it's suitable for diverse solar energy applications.
