Schneider NSX630N 4P MCCB Breaker price in Pakistan is Rs 310,000/-.

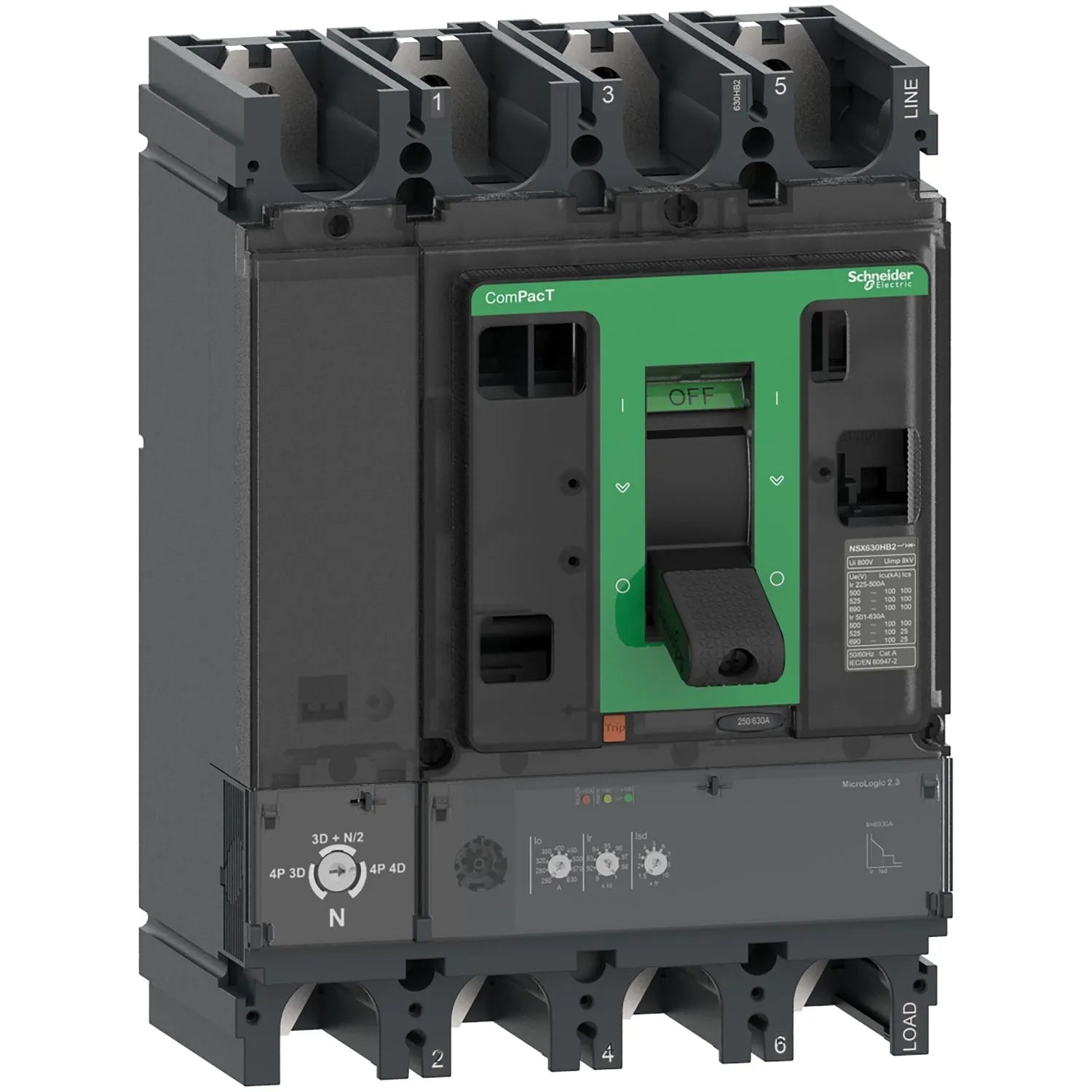

This ComPacT NSX630N is a complete 4P 4D fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 50kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds an electronic MicroLogic 2.3 trip unit, with a 630A rating. MicroLogic 2.3 trip unit provides adjustable long-time and short-time protections and fixed instantaneous protection. This 4-pole version (185mm x 255mm x 110mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC, and marine specifications. ComPacT NSX630N is part of Schneider Electric EcoStruxure Power architecture.
50 ka icu at 380/415 v ac 50/60 hz conforming to iec 60947-2
performance level
n 50 ka415vac
trip unit name
micrologic 2.3
trip unit technology
electronic
trip unit protection functions
lsol
control type
toggle
circuit breaker mounting mode
fixed
[i-jil rated insulation voltage
800 v ac 50/60 hz
[uimp] rated impulse withstand voltage
8 kv
mechanical durability
15000 cycles
electrical durability
8000 cycles at 440 v in/2 / 4000 cycles at 440 v in / 6000 cycles at 690 v in/2 / 2000 cycles at 690 v in
net weight
8.13 kg
standards
en/iec 60947
pollution degree
3 conforming to iec 60664-1
ip degree of protection
ip40 conforming to iec 60529
1k degree of protection
ik07 conforming to iec 62262
ambient air temperature for operation
-25.. 70 c
ambient air temperature for storage
-50...85 c
relative humidity
0...95 %
operating altitude
0...2000 m without derating / 2000 m...5000 m with derating
Product Details
Schneider NSX630N 4P MCCB Breaker price in Pakistan is Rs 310,000/-.
This ComPacT NSX630N is a complete 4P 4D fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 50kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds an electronic MicroLogic 2.3 trip unit, with a 630A rating. MicroLogic 2.3 trip unit provides adjustable long-time and short-time protections and fixed instantaneous protection. This 4-pole version (185mm x 255mm x 110mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC, and marine specifications. ComPacT NSX630N is part of Schneider Electric EcoStruxure Power architecture.
