Solar Max 30kw Solar Inverter Price in Pakistan is Rs. /-.

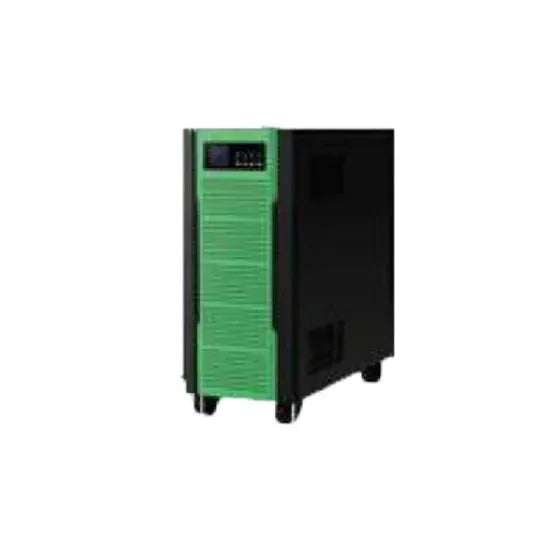

The Solar Max 30kW Hybrid On-Grid Inverter offers reliable and efficient power conversion with pure sine wave output. It supports self-consumption and feed-in to the grid, with programmable supply priority for PV, Battery, or Grid sources. Its true galvanic isolation transformer design ensures safety and stability. Users can adjust the charging current and select from multiple operation modes including grid-tie, off-grid, and grid-tie with backup. Equipped with built-in timers and multiple communication options such as USB, RS-232, Modbus, and SNMP, along with monitoring software, it provides real-time status display and control. Additionally, it allows parallel operation of up to 4 units for enhanced scalability and power output.
Programmable supply priority for PV, Battery, or Grid
True galvanic isolation transformer design
User-adjustable charging current
Programmable multiple operation modes:
Grid-tie, off-grid, and grid-tie with backup
Built-in timer for various mode of on/off operation
Multiple communication for USB, RS-232, Modbus, and SNMP
Monitoring software for real-time status display and control
Parallel operation up to 4 units only for 30KW
Product Specifications
Communication interface
rs-232/usb
humidity
0 ~ 95% rh (non condensing)
output frequency range
47.5 ~ 51.5 hz or 59.3 ~ 60.5 hz.
efficiency (dc to ac)
> 91%
output voltage range
184 -265 vac per phase
rated power output
30kw
nominal output voltage
230 vac (p-n) / 400 vac (p-p)
nominal output current
43.5 a per phase
operating temperature
-10°c to 55°c
nominal dc voltage [v]
maximum dc voltage
Product Details
Solar Max 30kw Solar Inverter Price in Pakistan is Rs. /-.
The Solar Max 30kW Hybrid On-Grid Inverter offers reliable and efficient power conversion with pure sine wave output. It supports self-consumption and feed-in to the grid, with programmable supply priority for PV, Battery, or Grid sources. Its true galvanic isolation transformer design ensures safety and stability. Users can adjust the charging current and select from multiple operation modes including grid-tie, off-grid, and grid-tie with backup. Equipped with built-in timers and multiple communication options such as USB, RS-232, Modbus, and SNMP, along with monitoring software, it provides real-time status display and control. Additionally, it allows parallel operation of up to 4 units for enhanced scalability and power output.
